Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0829 |

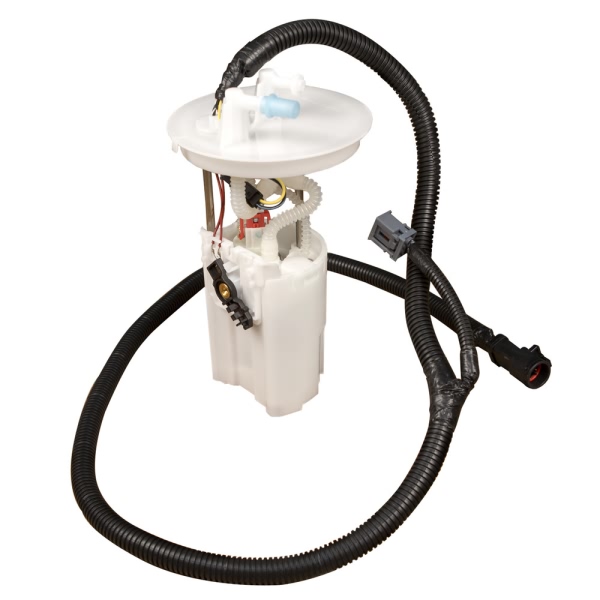

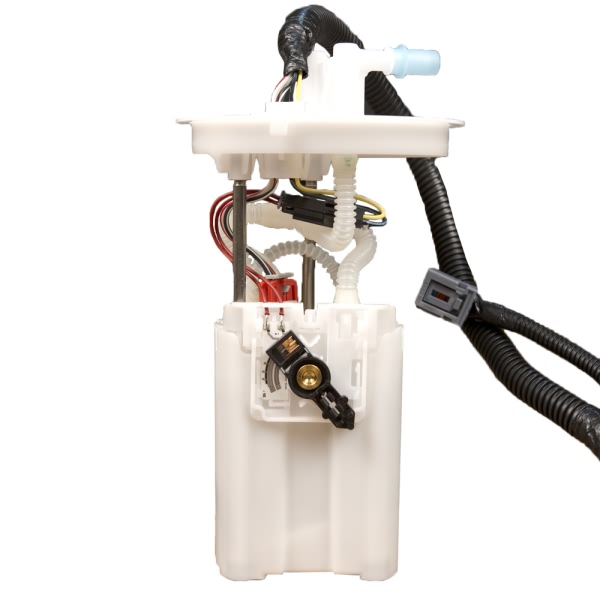

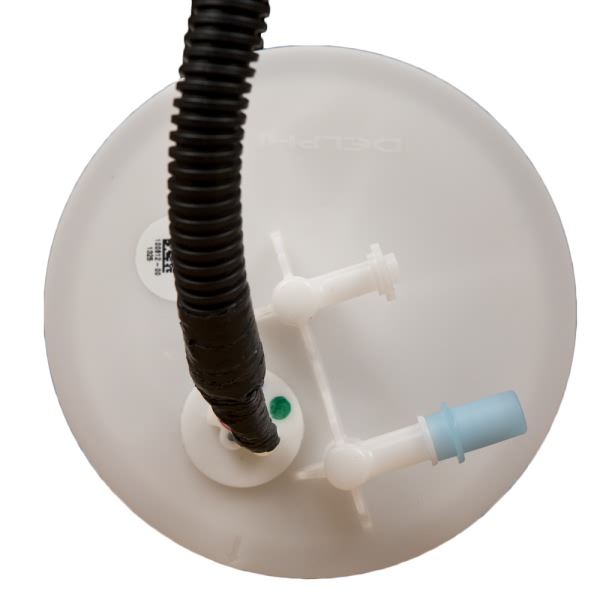

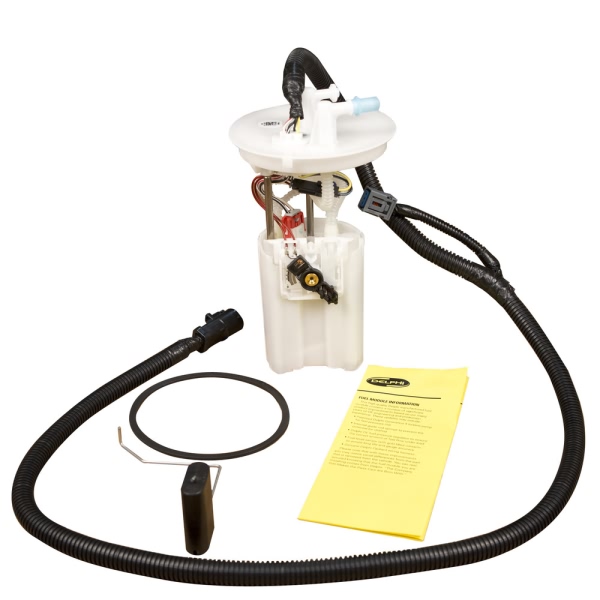

Part Description | Fuel Pump Module Assembly |
Current Draw | 14 |
Flow Rating | 19 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 78.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 15.0 |
Resistance Ohms Full | 160.0 |
Strainer Included | Yes |
System Pressure | 51 psi |

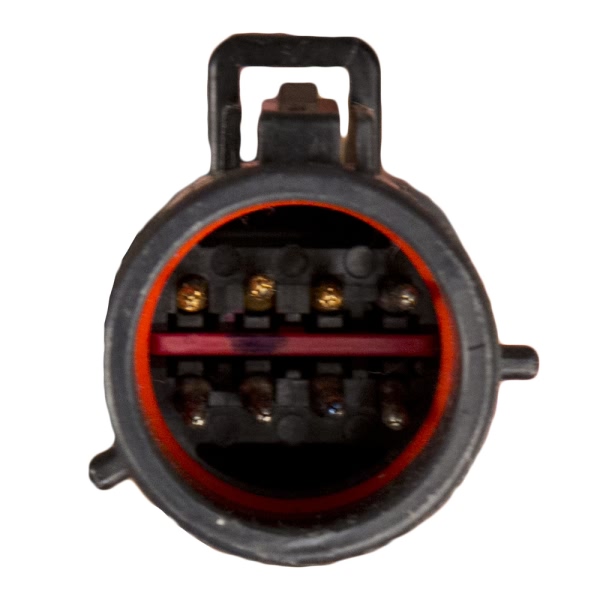

Terminal Gender | Male |
Terminal Quantity | 8 |
Terminal Type | Pin |
UPC | 689604200964 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2004 Ford Freestar | Base | 6 Cyl 3.9L |
2004 Ford Freestar | SE | 6 Cyl 3.9L |
2004 Ford Freestar | All Trims | 6 Cyl 4.2L |
2005 Ford Freestar | All Trims | All Engines |
2004-2005 Mercury Monterey | All Trims | All Engines |
