Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0515 |

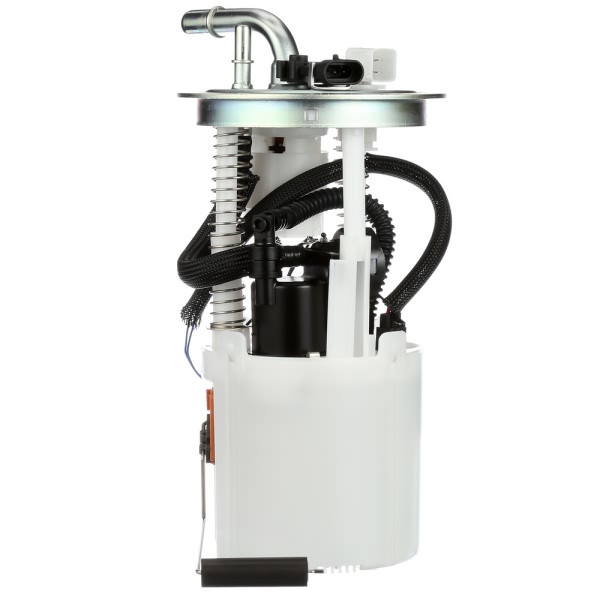

Part Description | Fuel Pump Module Assembly |
Current Draw | 15 |
Flow Rating | 26 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 85.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 40.0 |
Strainer Included | Yes |
System Pressure | 58 psi |
Terminal Gender | Male |
Terminal Quantity | 3 |
Terminal Type | Pin |
UPC | 689604190661 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2005-2007 Buick Rainier | All Trims | 6 Cyl 4.2L |
2005-2007 Buick Rainier | All Trims | 8 Cyl 5.3L |
2005-2006 Chevrolet SSR | All Trims | All Engines |
2005-2007 Chevrolet Trailblazer | All Trims | All Engines |
2005-2007 GMC Envoy | All Trims | 6 Cyl 4.2L |
2005-2007 GMC Envoy | All Trims | 8 Cyl 5.3L |
2005-2006 Isuzu Ascender | All Trims | 8 Cyl 5.3L |
2005-2007 Isuzu Ascender | All Trims | 6 Cyl 4.2L |
2005-2007 Saab 9-7x | All Trims | 6 Cyl 4.2L |
2005-2007 Saab 9-7x | All Trims | 8 Cyl 5.3L |
