Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0511 |

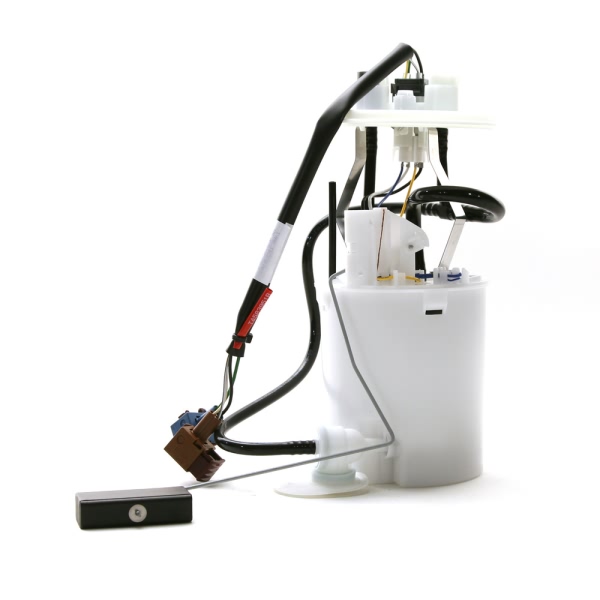

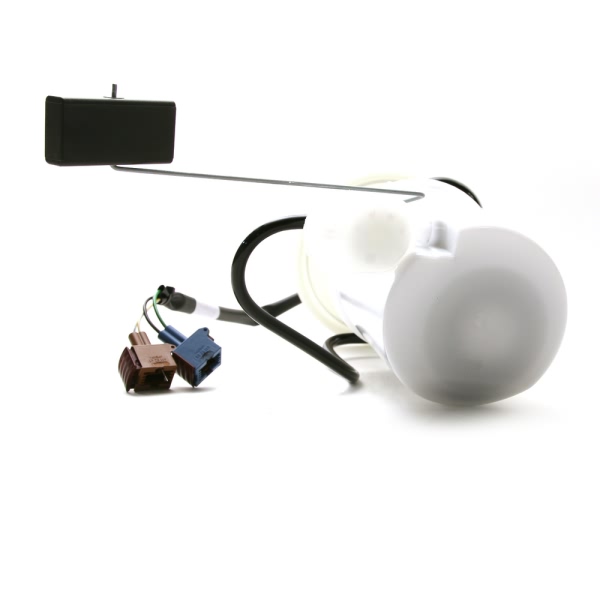

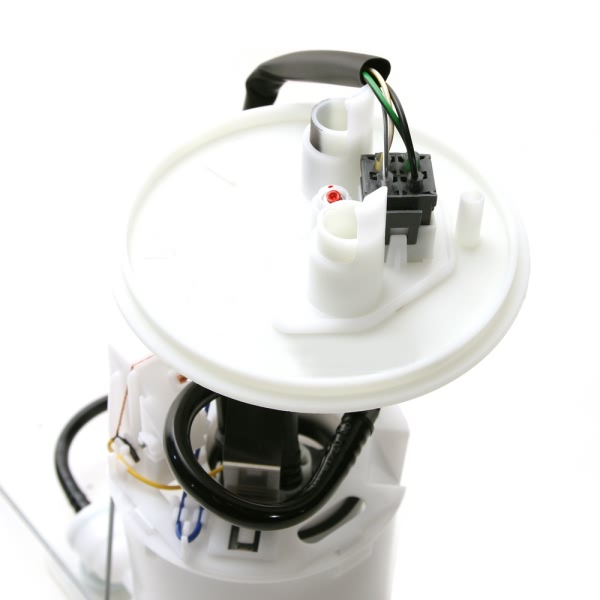

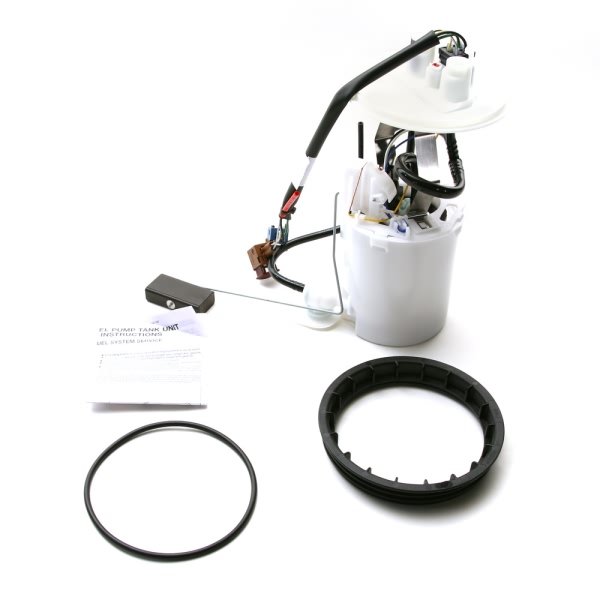

Part Description | Fuel Pump Module Assembly |
Current Draw | 12 |
Flow Rating | 22 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 105.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Female Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 60.0 |
Resistance Ohms Full | 396.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

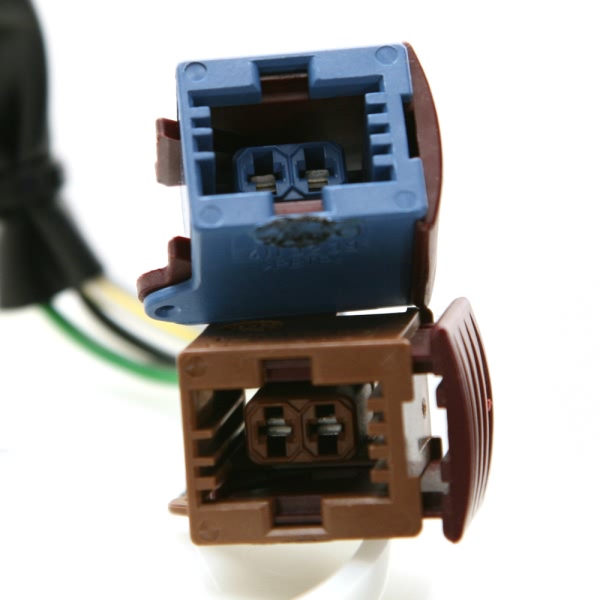

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604190623 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1994 Saab 900 | Turbo | 4 Cyl 2.0L |
1994 Saab 900 | Turbo Commemorative Edition | 4 Cyl 2.0L |
1994 Saab 900 | S | 4 Cyl 2.1L |
1994-1997 Saab 900 | SE | 6 Cyl 2.5L |
1994-1998 Saab 900 | SE Turbo | 4 Cyl 2.0L |
1994-1998 Saab 900 | S | 4 Cyl 2.3L |
1998 Saab 900 | S Turbo | 4 Cyl 2.0L |
