Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0510 |

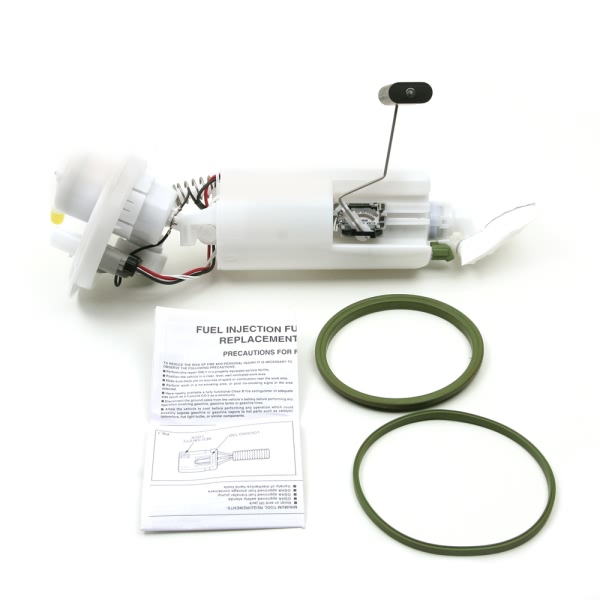

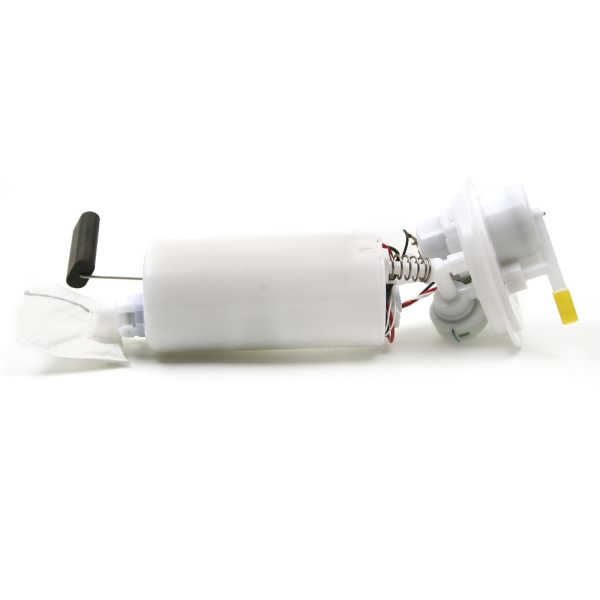

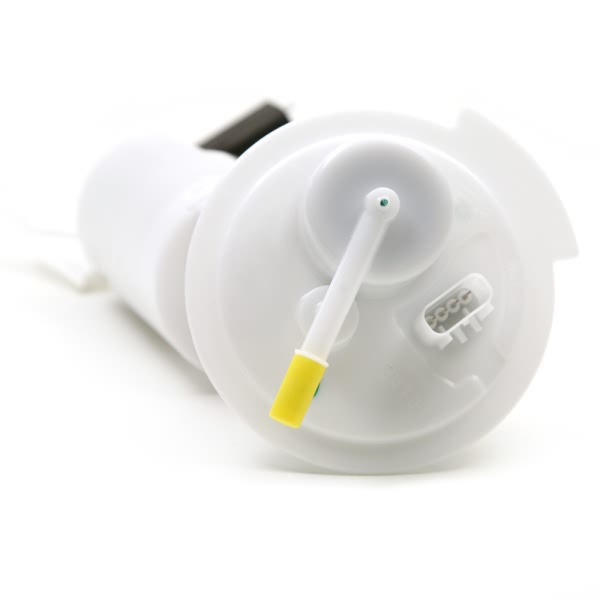

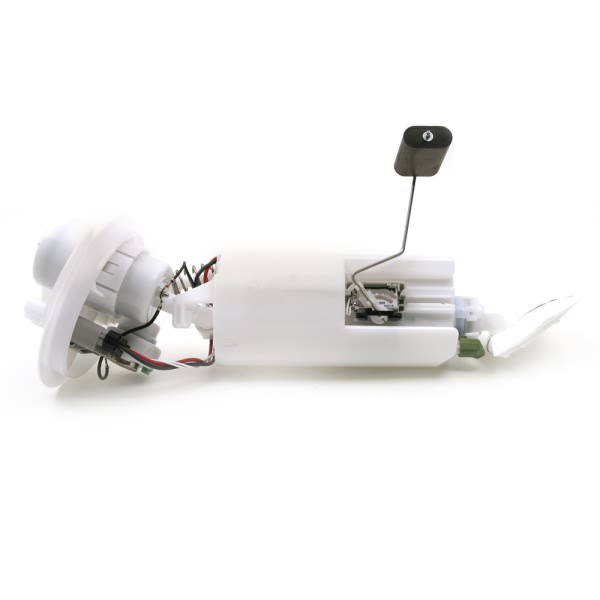

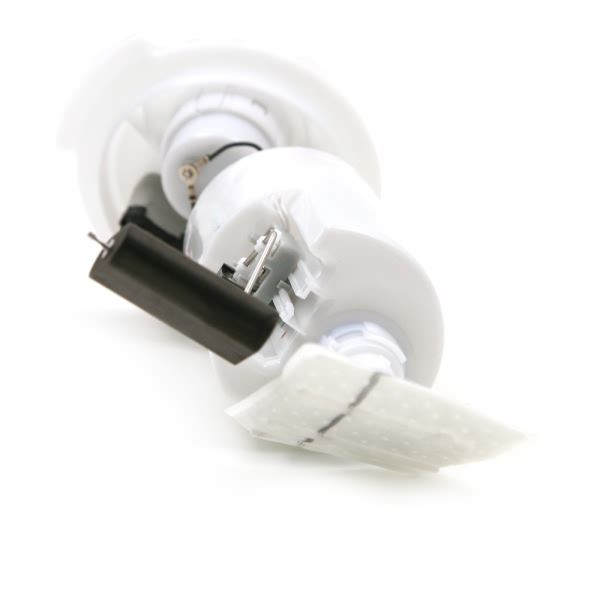

Part Description | Fuel Pump Module Assembly |
Current Draw | 13 |
Flow Rating | 40 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Flex |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 105.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 1050.0 |
Resistance Ohms Full | 70.0 |
Strainer Included | Yes |
System Pressure | 58 psi |
Terminal Gender | Male |

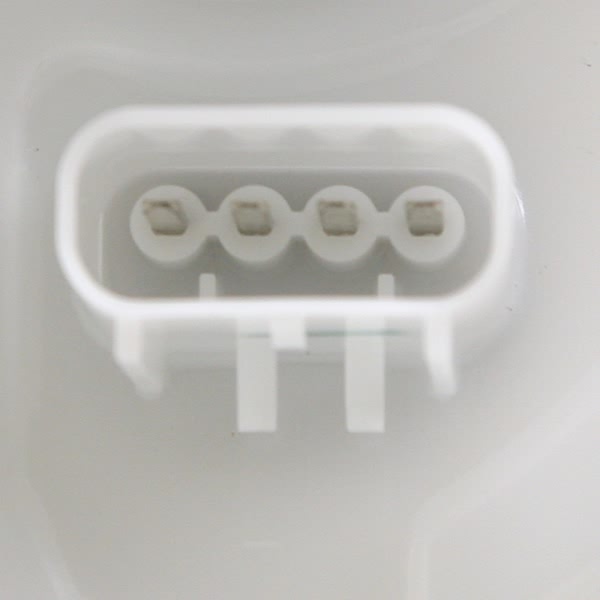

Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604190616 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2005-2007 Dodge Caravan | All Trims | 6 Cyl 3.3L |
2005-2007 Dodge Grand Caravan | All Trims | 6 Cyl 3.3L |
