Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0467 |

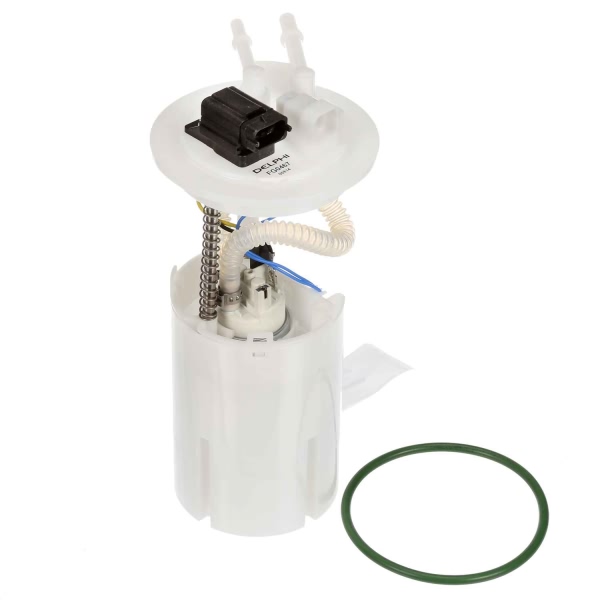

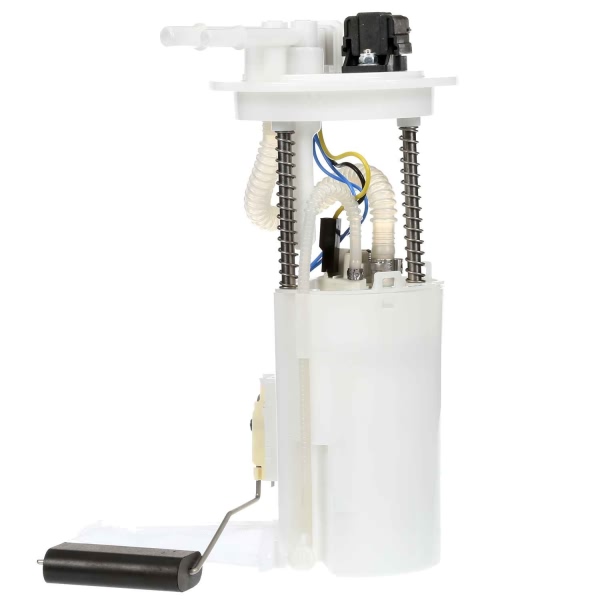

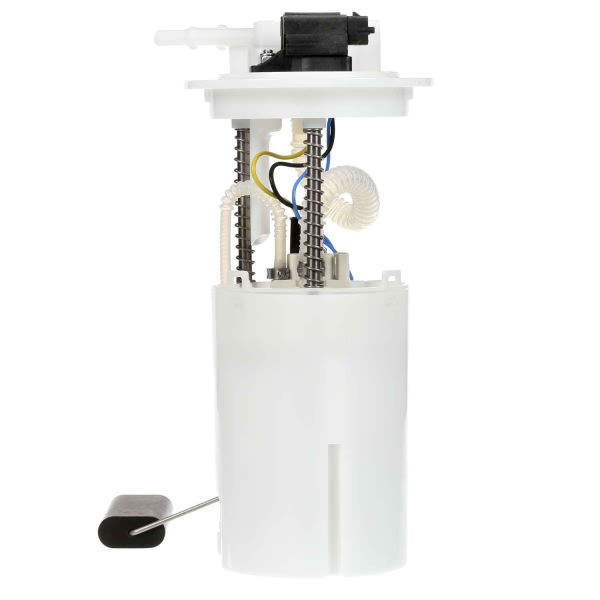

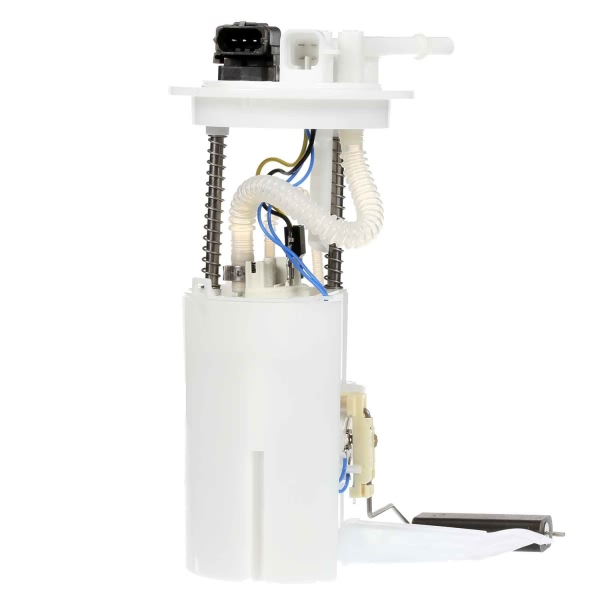

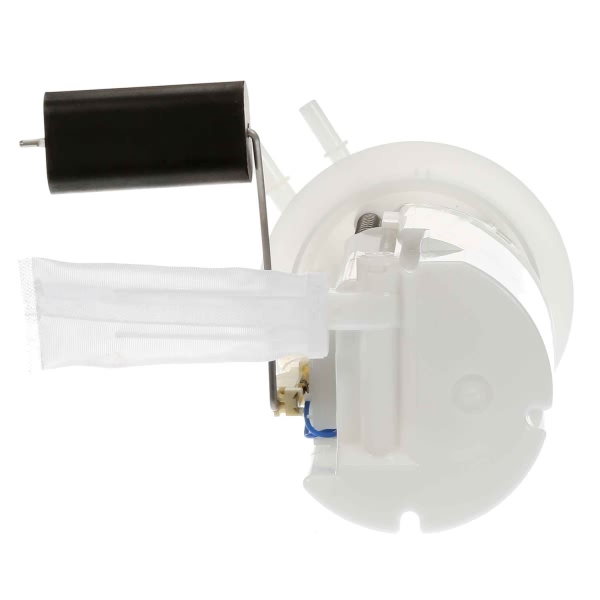

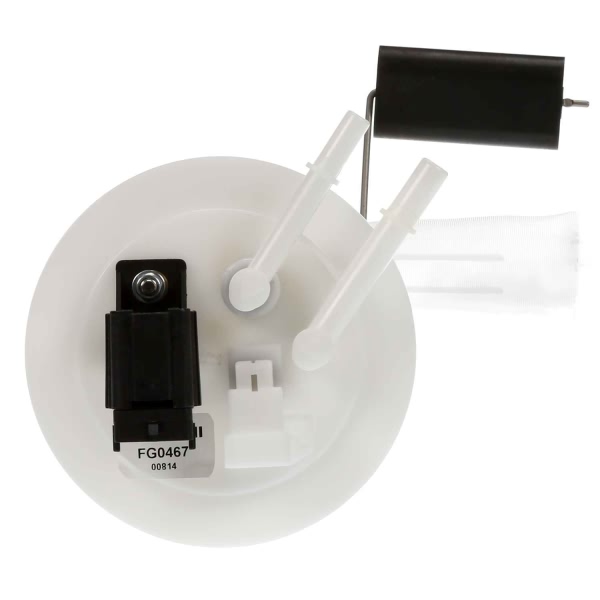

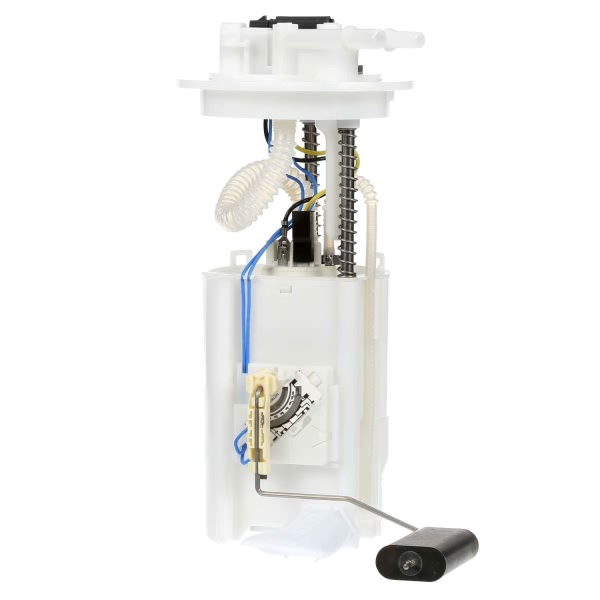

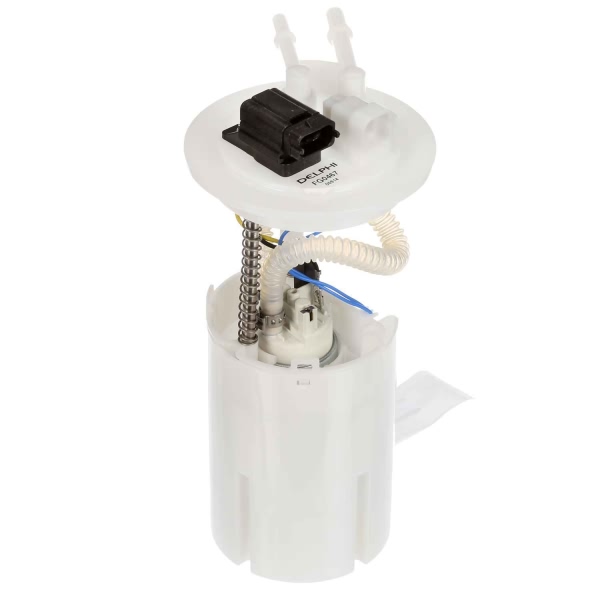

Part Description | Fuel Pump Module Assembly |
Current Draw | 6 |
Flow Rating | 37 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 97.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 20.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

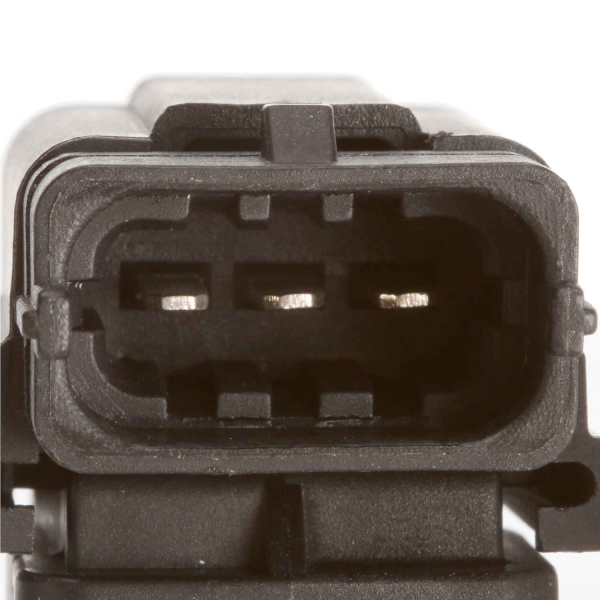

Terminal Gender | Male |
Terminal Quantity | 3 |
Terminal Type | Blade |
UPC | 689604189771 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2001-2002 Saturn L100 | All Trims | All Engines |
2001-2003 Saturn L200 | All Trims | All Engines |
2001-2003 Saturn L300 | All Trims | All Engines |
2004 Saturn L300 | 1 | All Engines |
2004 Saturn L300 | 2 | All Engines |
2004 Saturn L300 | 3 | All Engines |
2005 Saturn L300 | All Trims | All Engines |
2001-2003 Saturn LW200 | All Trims | All Engines |
2001-2003 Saturn LW300 | All Trims | All Engines |
