Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0435 |

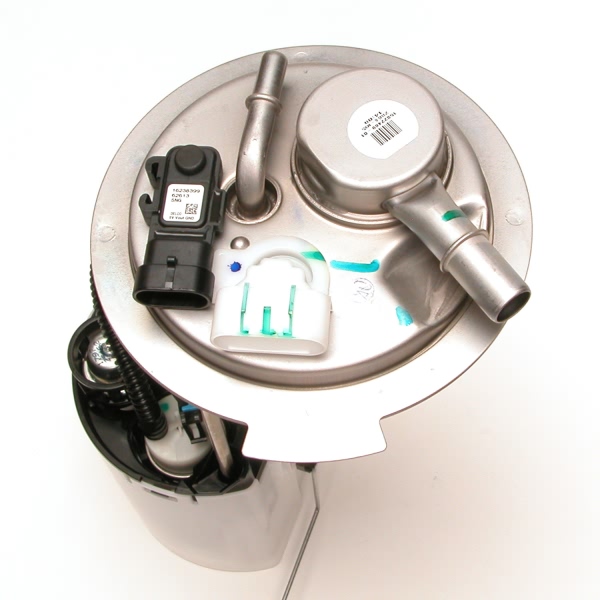

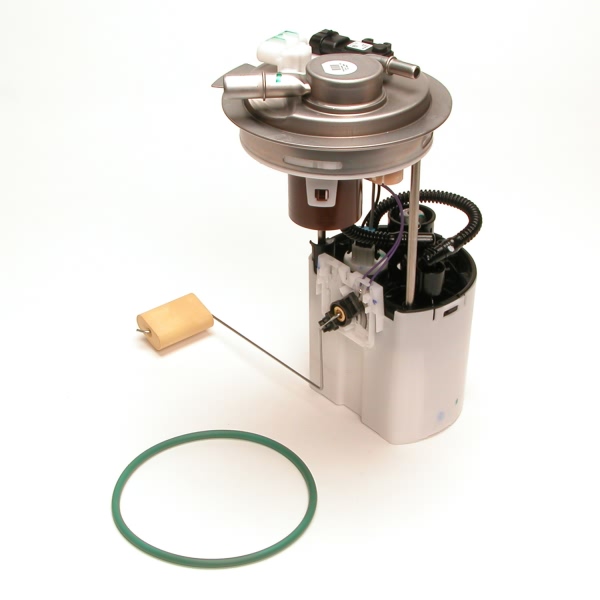

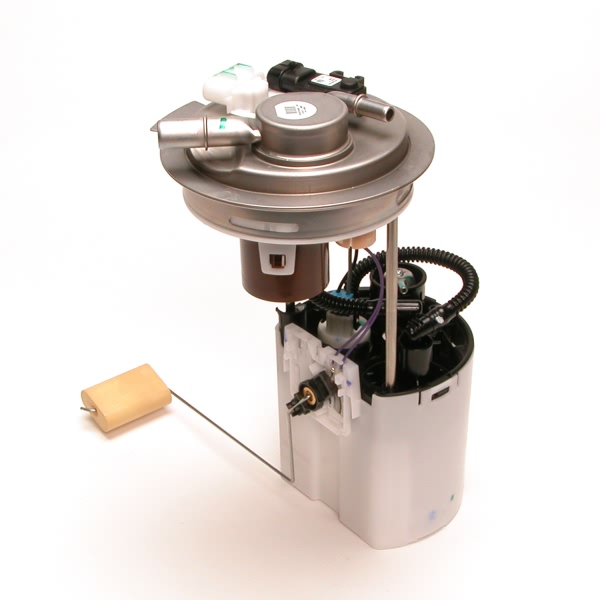

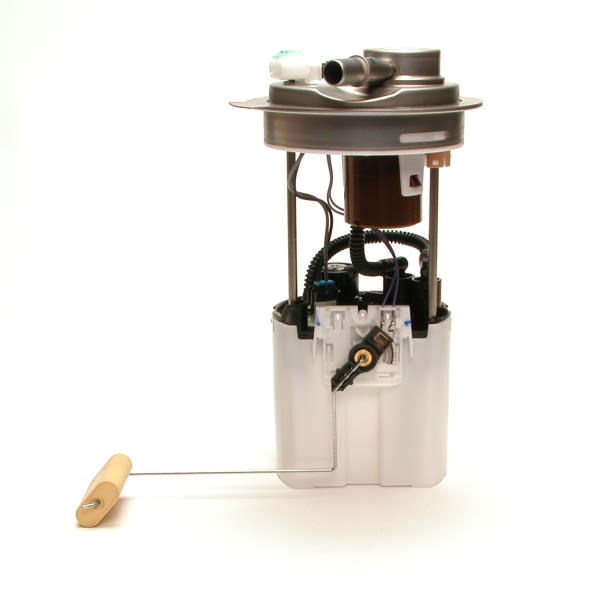

Part Description | Fuel Pump Module Assembly |
Current Draw | 9 |
Flow Rating | 18 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 40.0 |
Strainer Included | Yes |
System Pressure | 58 psi |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604165577 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2006-2008 Chevrolet Colorado | All Trims | All Engines |
2006-2008 GMC Canyon | All Trims | All Engines |
2006 Isuzu i-280 | All Trims | All Engines |
2007-2008 Isuzu i-290 | All Trims | All Engines |
2006 Isuzu i-350 | All Trims | All Engines |
2007-2008 Isuzu i-370 | All Trims | All Engines |
