Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0427 |

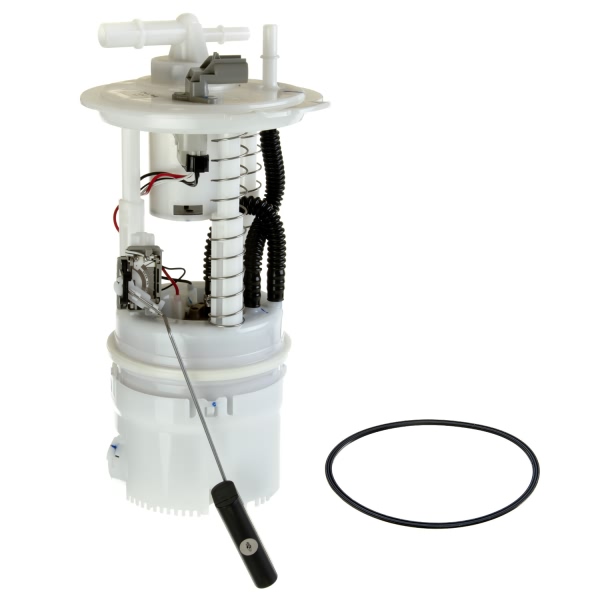

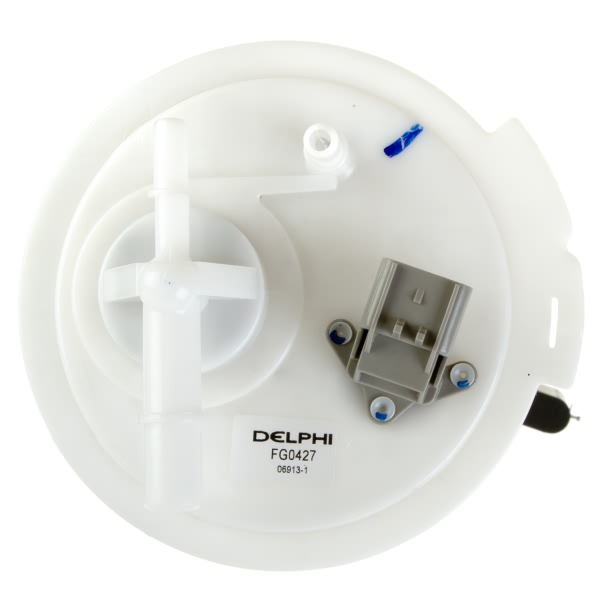

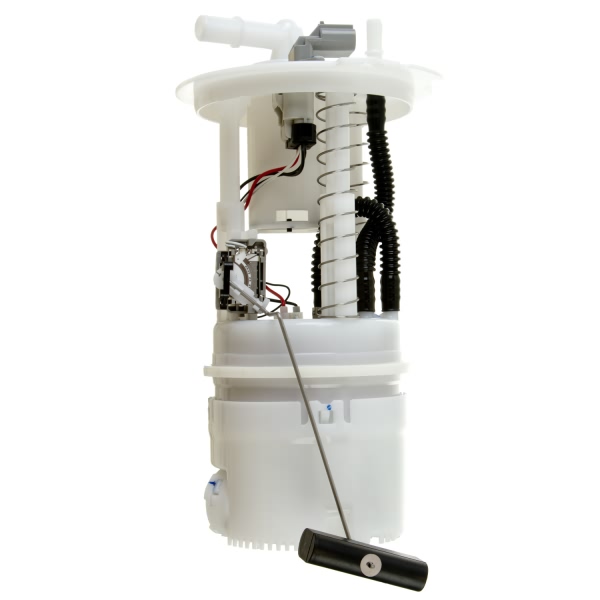

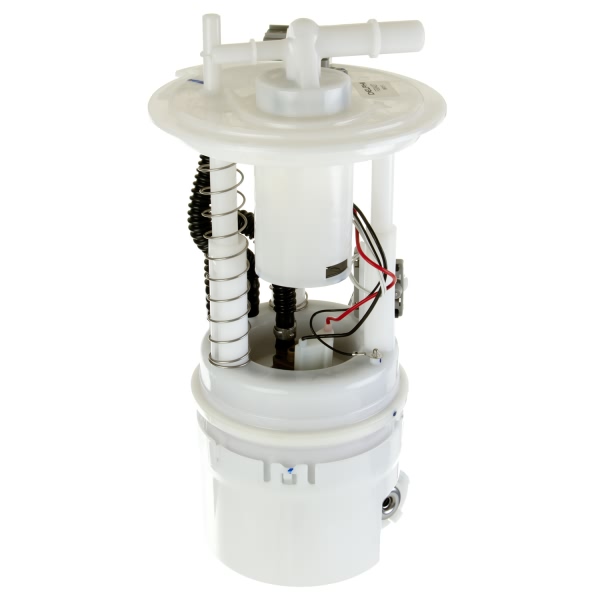

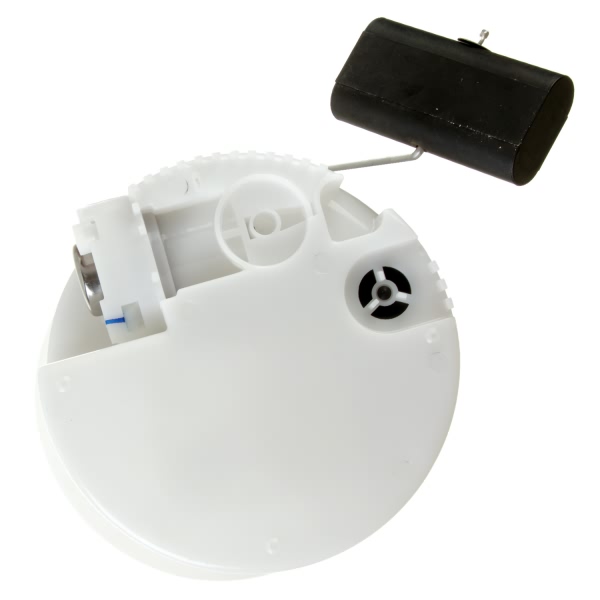

Part Description | Fuel Pump Module Assembly |
Current Draw | 5 |
Flow Rating | 34 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 58.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 1050.0 |
Resistance Ohms Full | 60.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

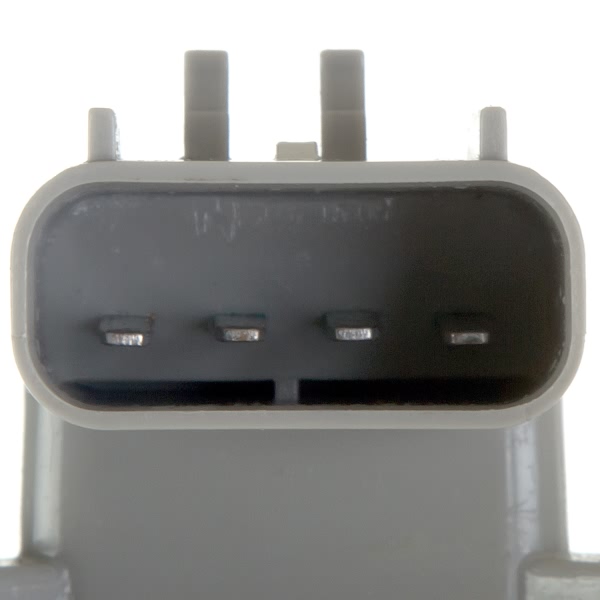

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604139608 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2003-2004 Chrysler Sebring | LX | 4 Cyl 2.4L |
2003-2005 Chrysler Sebring | All Trims | 6 Cyl 2.7L |
2004-2006 Chrysler Sebring | Base | 4 Cyl 2.4L |
2006 Chrysler Sebring | GTC | 6 Cyl 2.7L |
2006 Chrysler Sebring | Limited | 6 Cyl 2.7L |
2006 Chrysler Sebring | Touring | 6 Cyl 2.7L |
2006 Chrysler Sebring | TSi | 6 Cyl 2.7L |
2003 Dodge Stratus | All Trims | 6 Cyl 2.7L |
2003-2004 Dodge Stratus | All Trims | 4 Cyl 2.4L |
2004 Dodge Stratus | ES | 6 Cyl 2.7L |
