Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0426 |

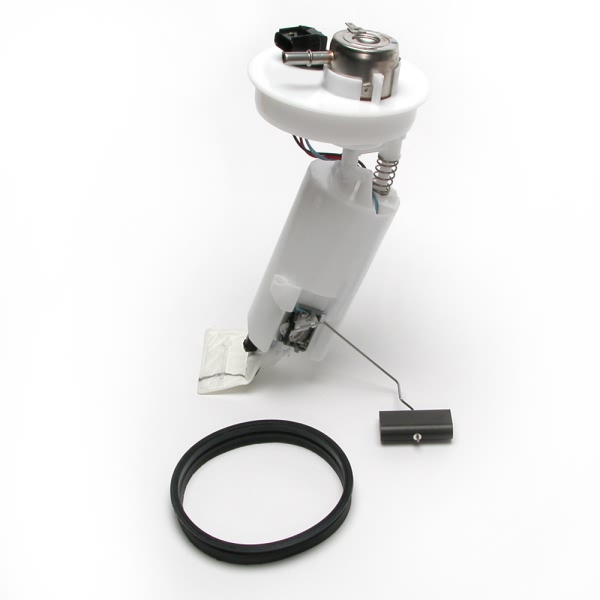

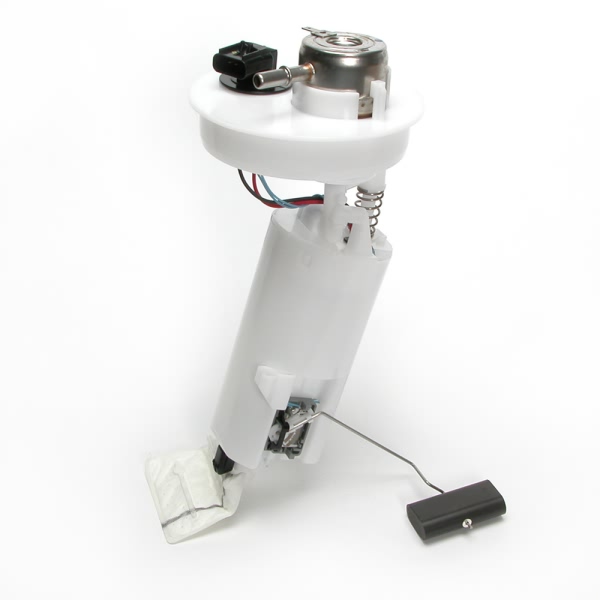

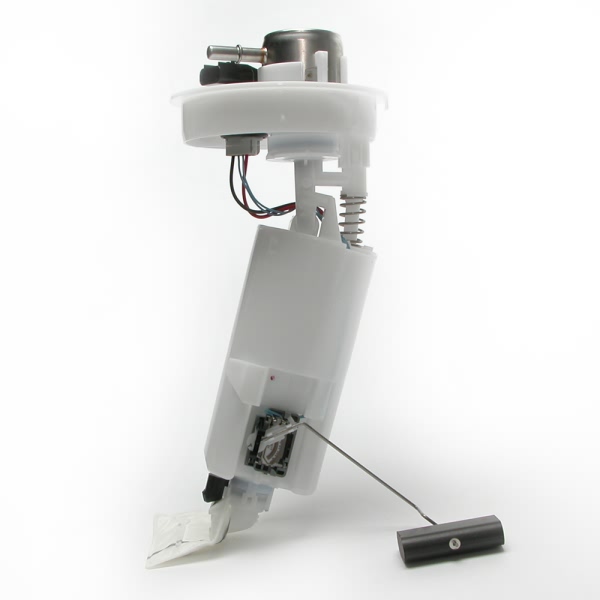

Part Description | Fuel Pump Module Assembly |
Current Draw | 13 |
Flow Rating | 20 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 94.0 PSI |

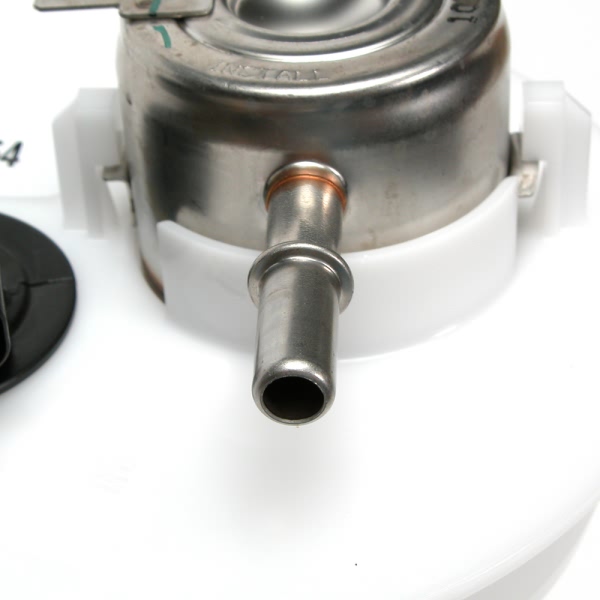

Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 115.0 |
Resistance Ohms Full | 1010.0 |
Strainer Included | Yes |
System Pressure | 58 psi |

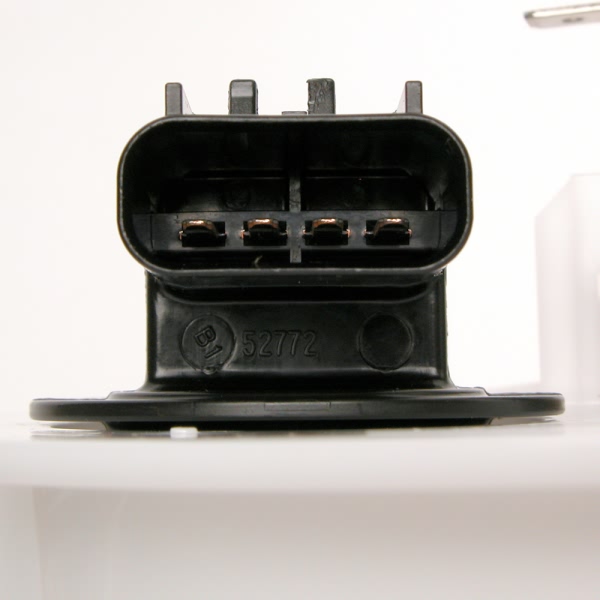

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604139592 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2001-2002 Chrysler Neon | All Trims | 4 Cyl 2.0L |
2001-2005 Dodge Neon | All Trims | 4 Cyl 2.0L |
2003-2005 Dodge SX 2.0 | All Trims | 4 Cyl 2.0L |
2001 Plymouth Neon | All Trims | 4 Cyl 2.0L |
