Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0415 |

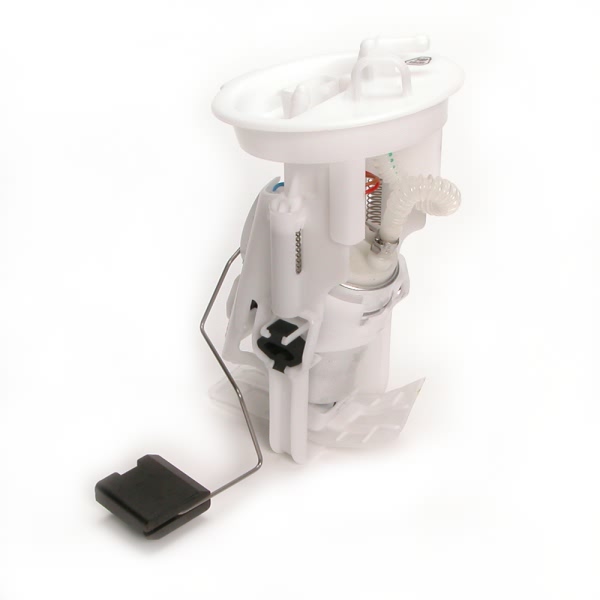

Part Description | Fuel Pump Module Assembly |
Current Draw | 7 |
Flow Rating | 26 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 70.0 |
Resistance Ohms Full | 395.0 |
Strainer Included | Yes |
System Pressure | 51 psi |

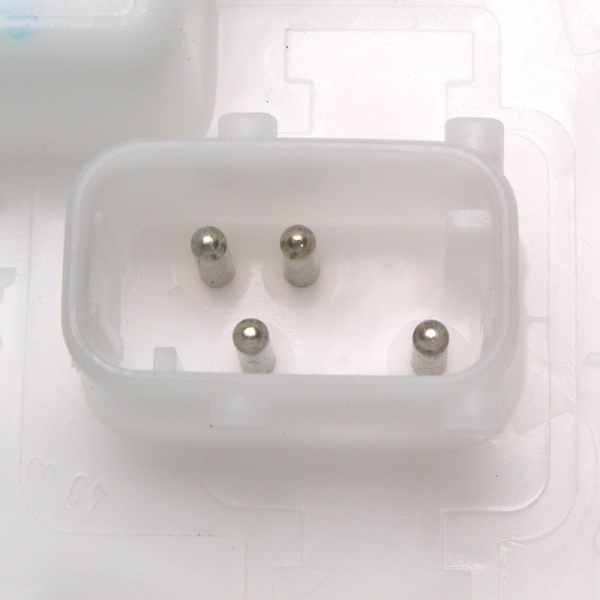

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604139646 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2000 BMW 323Ci | All Trims | All Engines |
1999 BMW 323i | All Trims | 6 Cyl 2.5L |
2000 BMW 323i | All Trims | All Engines |
2001-2006 BMW 325Ci | All Trims | All Engines |
2001-2005 BMW 325i | All Trims | All Engines |
2001-2005 BMW 325xi | All Trims | All Engines |
2000 BMW 328Ci | All Trims | All Engines |
1999 BMW 328i | All Trims | 6 Cyl 2.8L |
2000 BMW 328i | All Trims | All Engines |
2001-2006 BMW 330Ci | All Trims | All Engines |
