Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0412 |

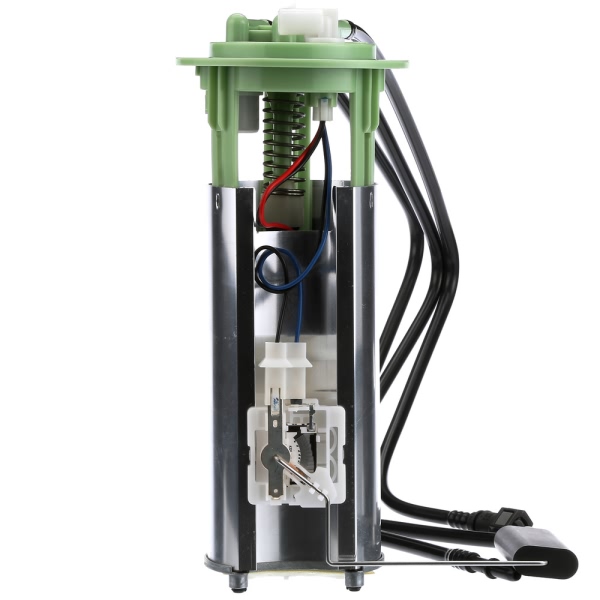

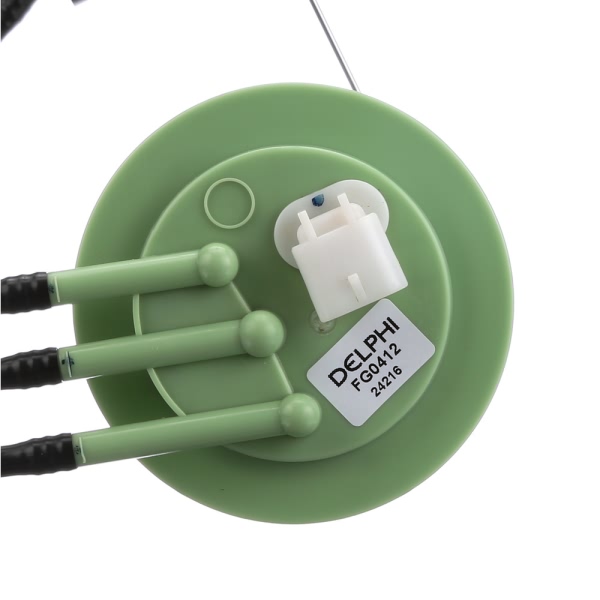

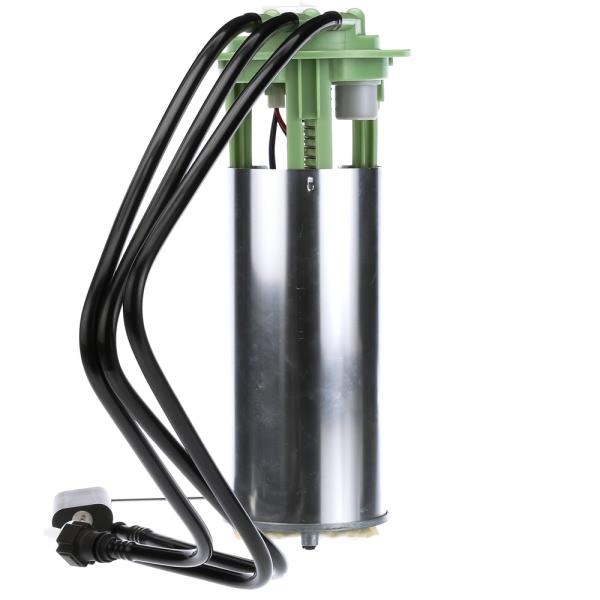

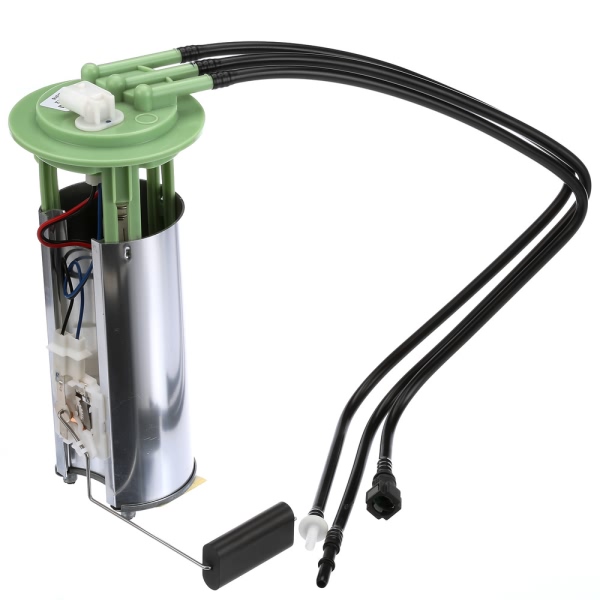

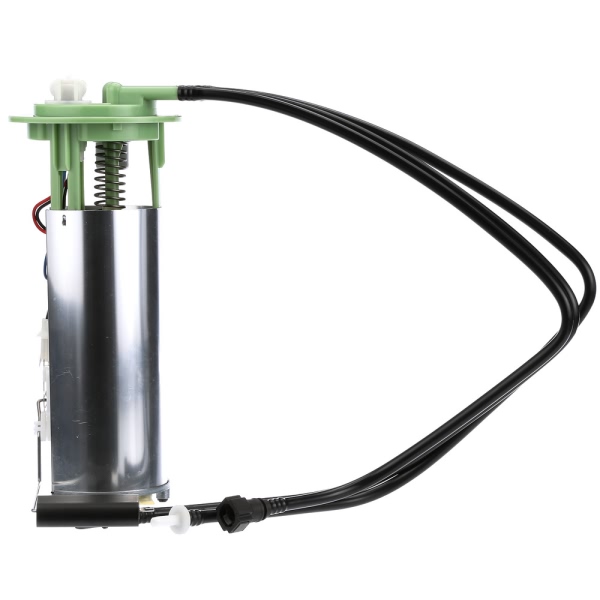

Part Description | Fuel Pump Module Assembly |
Current Draw | 8 |
Flow Rating | 20 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |

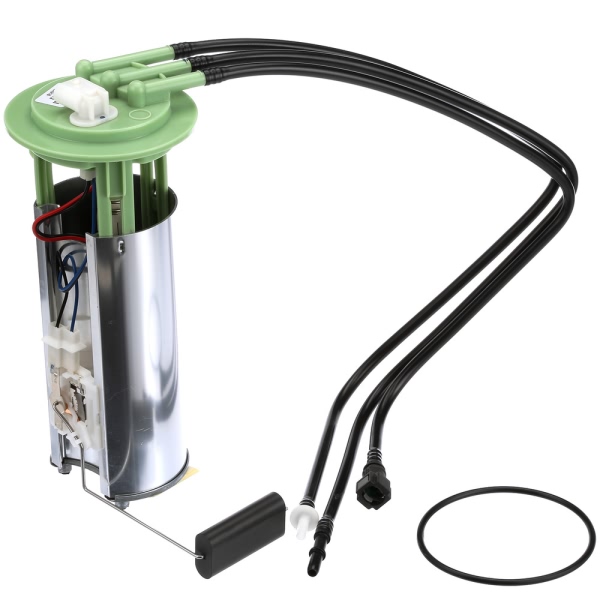

Gasket or Seal Included | Yes |
In Tank or External | In Tank |

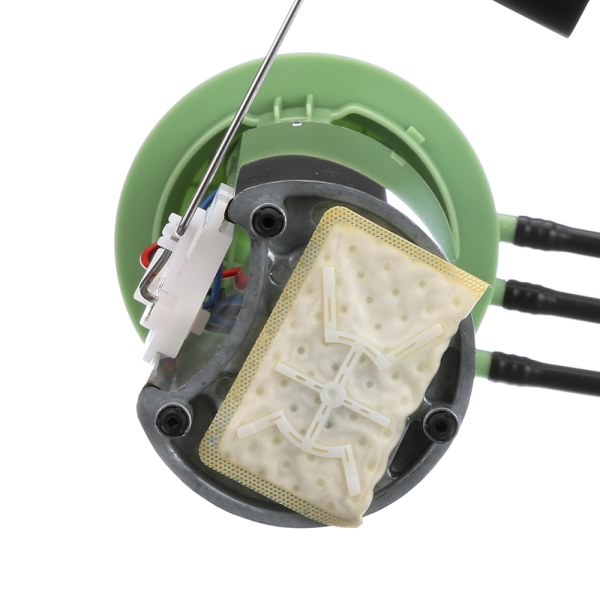

Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Female Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 685.0 |
Resistance Ohms Full | 20.0 |
Strainer Included | Yes |
System Pressure | 46 psi |

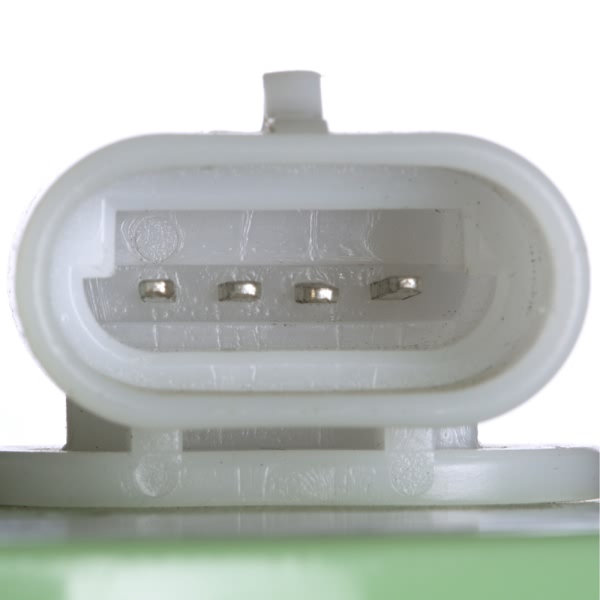

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604139516 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1997 Saturn SC1 | All Trims | 4 Cyl 1.9L |
1997 Saturn SC2 | All Trims | 4 Cyl 1.9L |
1997 Saturn SL | All Trims | 4 Cyl 1.9L |
1997 Saturn SL1 | All Trims | 4 Cyl 1.9L |
1997 Saturn SL2 | All Trims | 4 Cyl 1.9L |
1997 Saturn SW1 | All Trims | 4 Cyl 1.9L |
1997 Saturn SW2 | All Trims | 4 Cyl 1.9L |
