Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0406 |

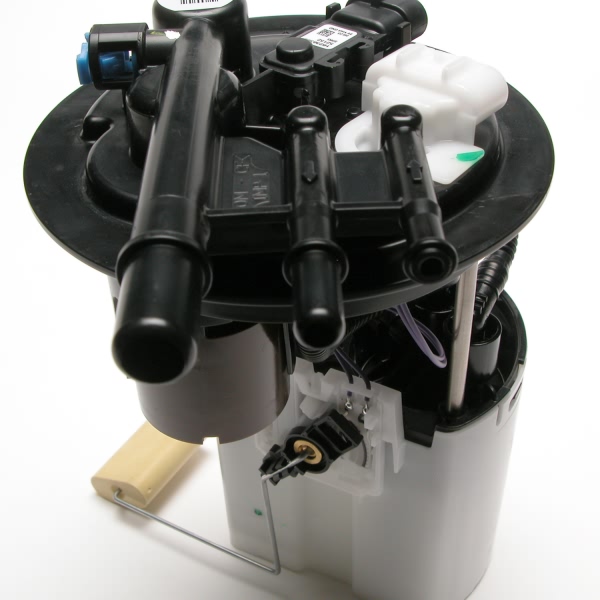

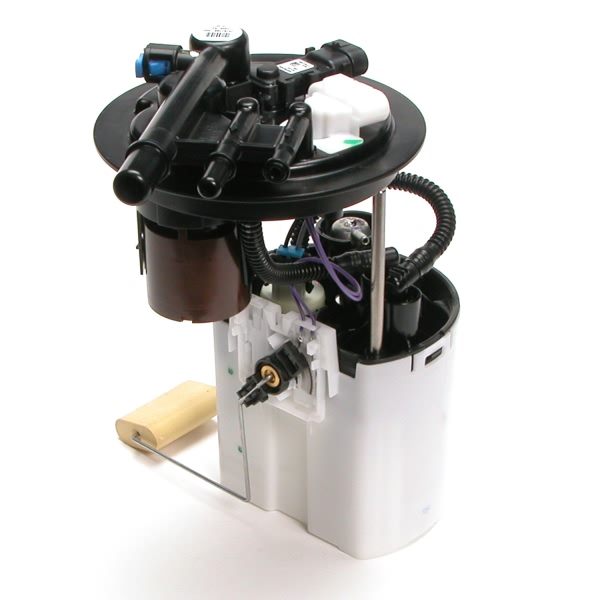

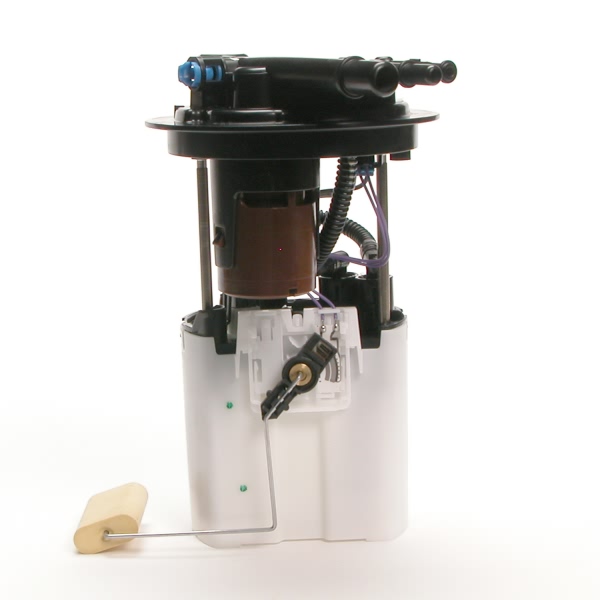

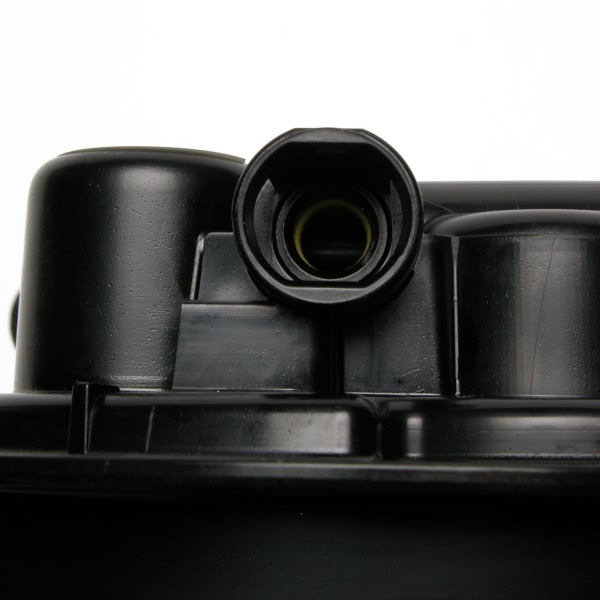

Part Description | Fuel Pump Module Assembly |
Current Draw | 7 |
Flow Rating | 21 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 131.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 40.0 |
Strainer Included | Yes |
System Pressure | 52 psi |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604160404 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2005-2006 Buick Terraza | All Trims | 6 Cyl 3.5L |
2006-2007 Buick Terraza | All Trims | 6 Cyl 3.9L |
2005-2006 Chevrolet Uplander | All Trims | 6 Cyl 3.5L |
2006-2007 Chevrolet Uplander | All Trims | 6 Cyl 3.9L |
2005-2006 Pontiac Montana | All Trims | 6 Cyl 3.5L |
2006-2007 Pontiac Montana | All Trims | 6 Cyl 3.9L |
2005-2006 Saturn Relay | 2 | 6 Cyl 3.5L |
2005-2006 Saturn Relay | 3 | 6 Cyl 3.5L |
2006 Saturn Relay | 3 | 6 Cyl 3.9L |
2007 Saturn Relay | All Trims | 6 Cyl 3.9L |
