Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0403 |

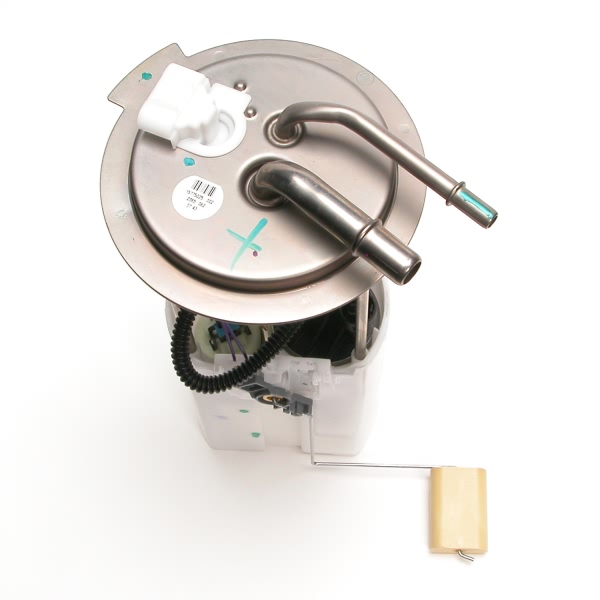

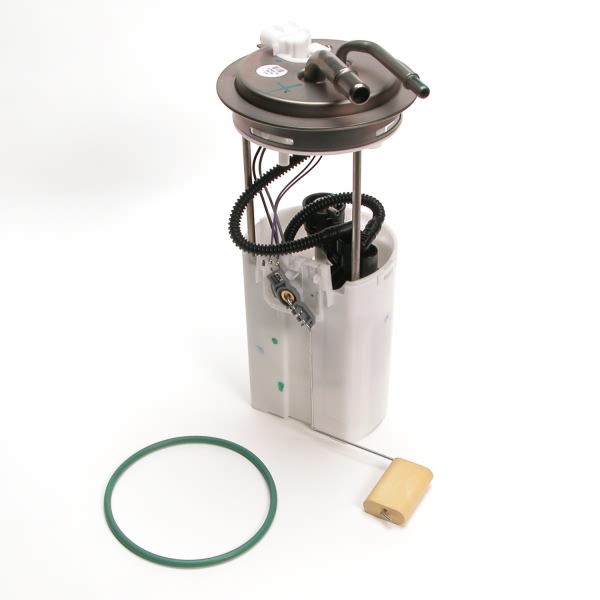

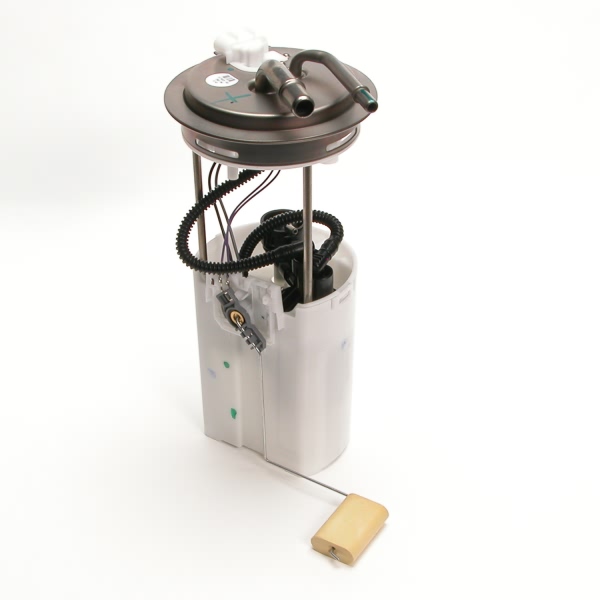

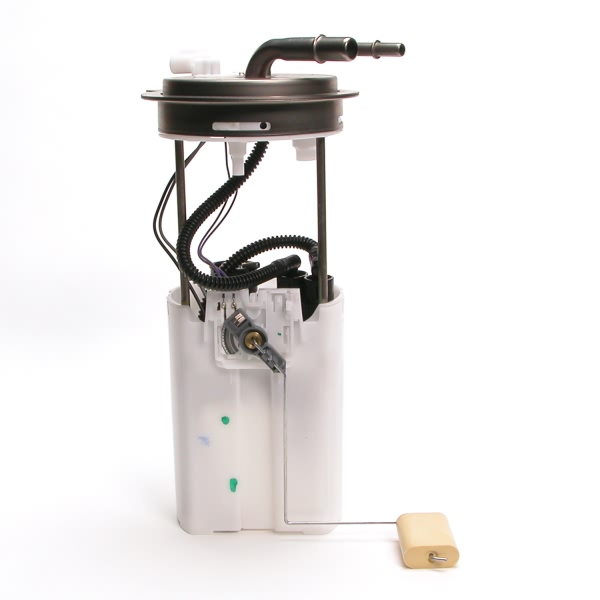

Part Description | Fuel Pump Module Assembly |
Current Draw | 11 |
Flow Rating | 28 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Flex |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 73.0 PSI |

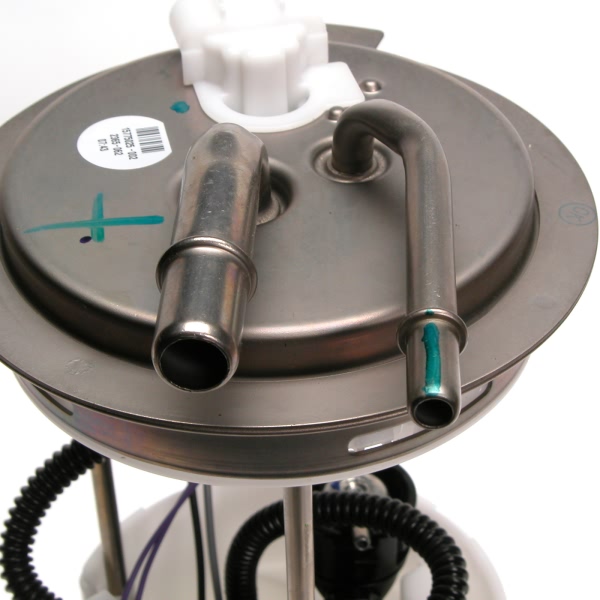

Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 40.0 |
Strainer Included | Yes |
System Pressure | 54 psi |

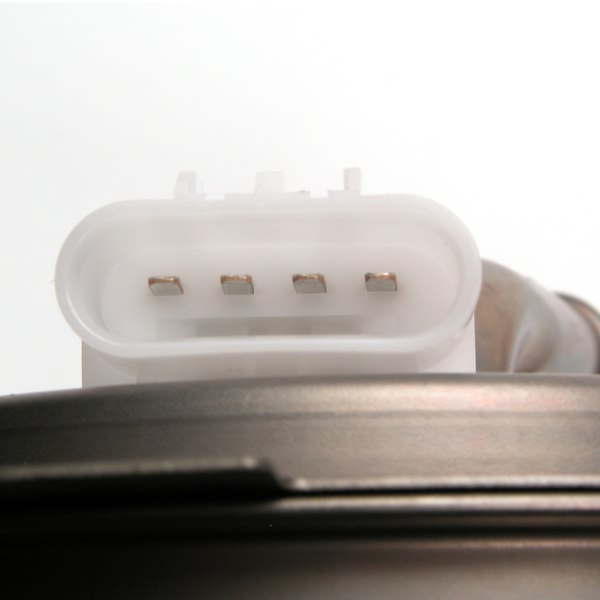

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604160381 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 Chevrolet Express 3500 | Base | 8 Cyl 6.0L |
2004-2005 Chevrolet Express 3500 | LS | 8 Cyl 6.0L |
2004-2005 GMC Savana 3500 | Base | 8 Cyl 6.0L |
2004-2005 GMC Savana 3500 | SLE | 8 Cyl 6.0L |
