Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0362 |

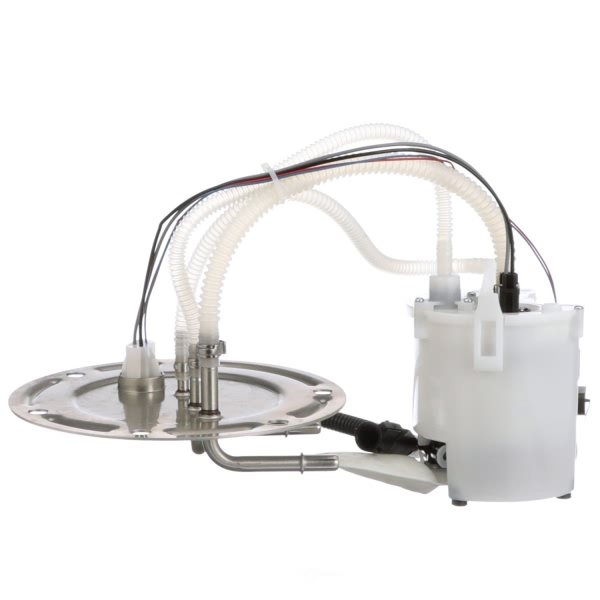

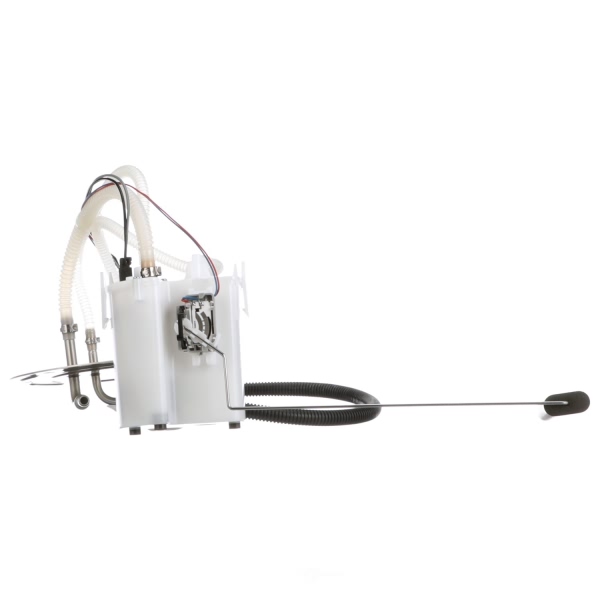

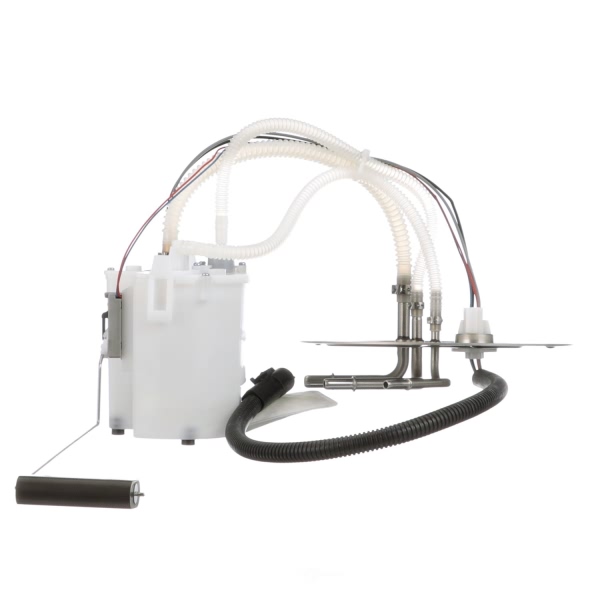

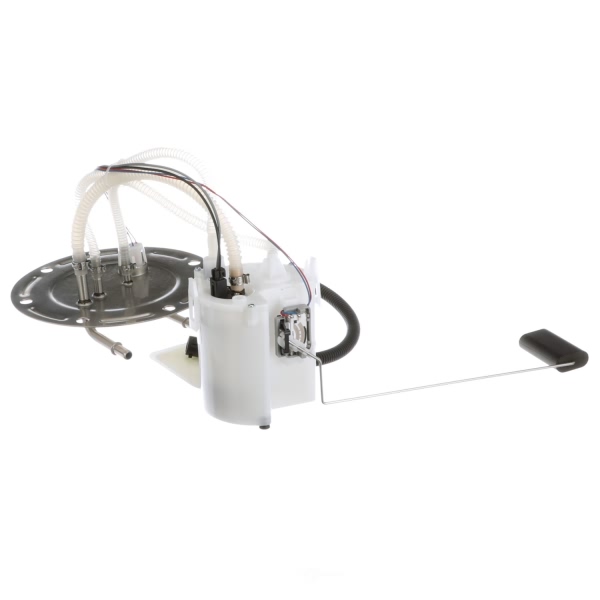

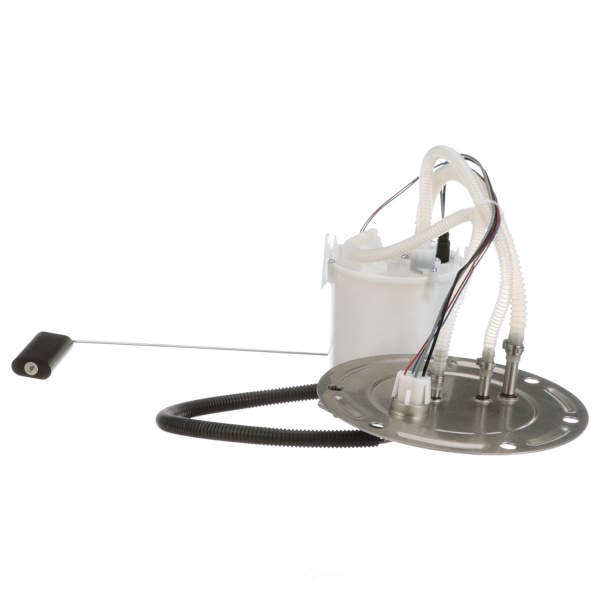

Part Description | Fuel Pump Module Assembly |
Current Draw | 5 |
Flow Rating | 30 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |

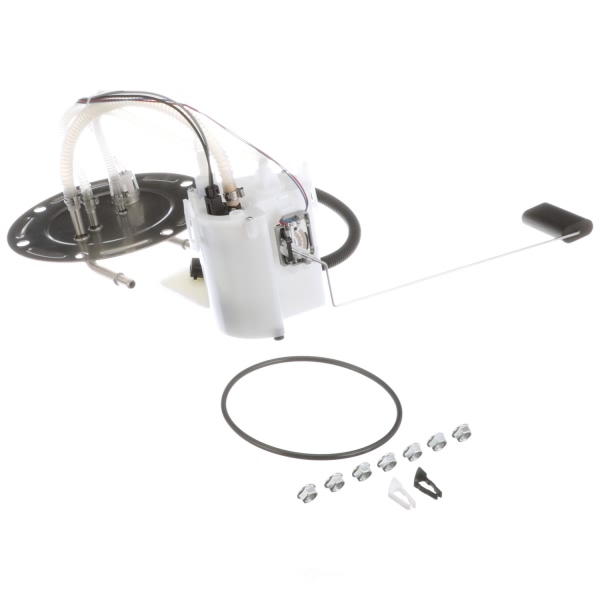

Gasket or Seal Included | Yes |
In Tank or External | In Tank |

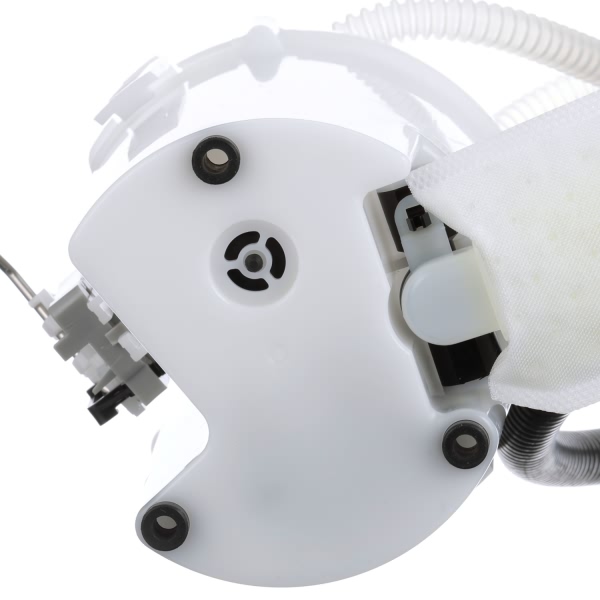

Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 109.0 PSI |
Outlet Outside Diameter | 0.375'' |

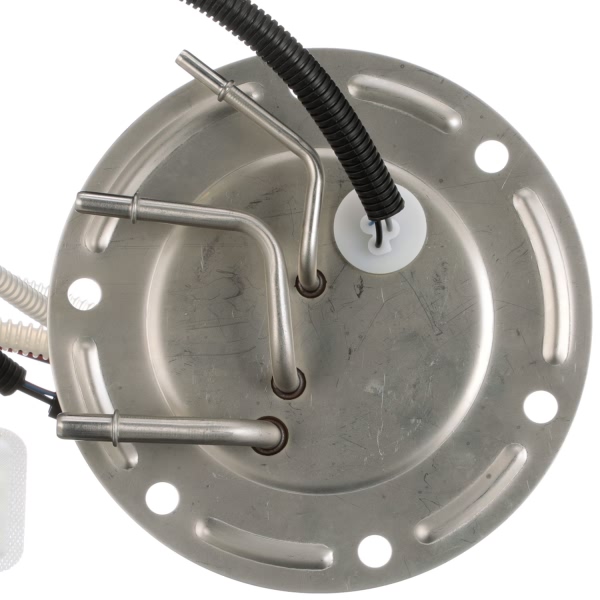

Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 16.0 |
Resistance Ohms Full | 160.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

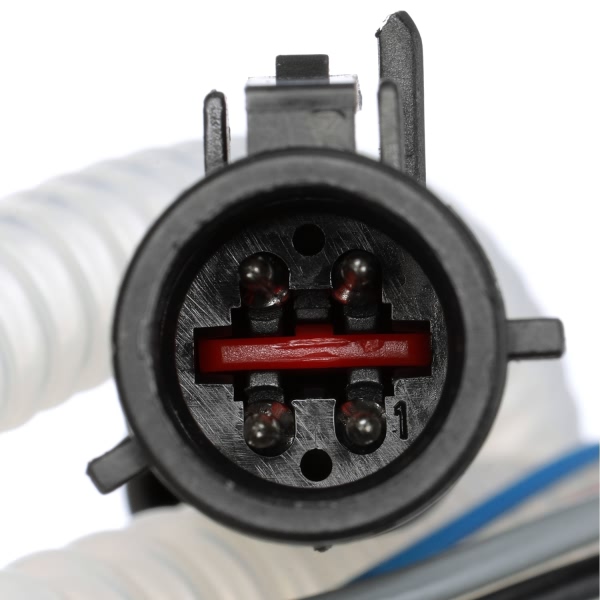

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604120521 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1999 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L |
1999 Ford F-250 Super Duty | All Trims | 8 Cyl 5.4L |
1999 Ford F-350 Super Duty | All Trims | 10 Cyl 6.8L |
1999 Ford F-350 Super Duty | All Trims | 8 Cyl 5.4L |
