Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0326 |

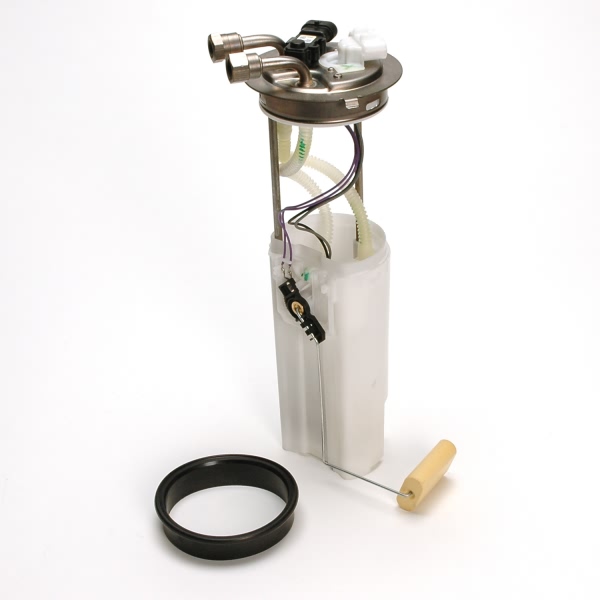

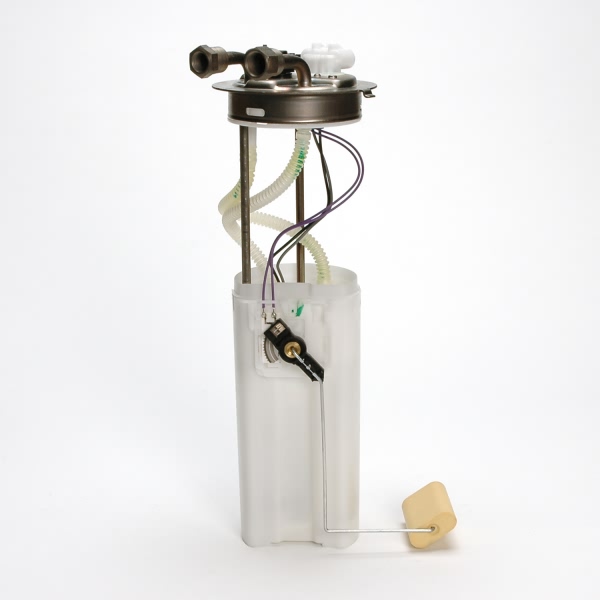

Part Description | Fuel Pump Module Assembly |
Current Draw | 8 |
Flow Rating | 29 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 73.0 PSI |
Outlet Fitting Thread Size | M16 - 1.5 |
Outlet Quantity | 2 |
Outlet Type | Female Threaded |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 40.0 |
Resistance Ohms Full | 250.0 |
Strainer Included | Yes |
System Pressure | 59 psi |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604084298 |
Vapor Pressure Sensor | Yes |
Voltage | 13.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2003 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L |
2003 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L |
2003 Chevrolet Express 2500 | All Trims | 6 Cyl 4.3L |
2003 Chevrolet Express 2500 | All Trims | 8 Cyl 4.8L |
2003 Chevrolet Express 2500 | All Trims | 8 Cyl 5.3L |
2003 Chevrolet Express 2500 | All Trims | 8 Cyl 6.0L |
2003 GMC Savana 1500 | All Trims | 6 Cyl 4.3L |
2003 GMC Savana 1500 | All Trims | 8 Cyl 5.3L |
2003 GMC Savana 2500 | All Trims | 6 Cyl 4.3L |
2003 GMC Savana 2500 | All Trims | 8 Cyl 4.8L |
