Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0269 |

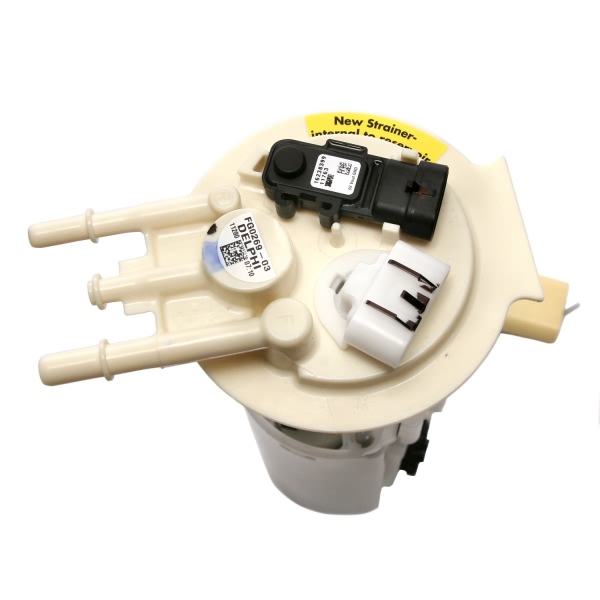

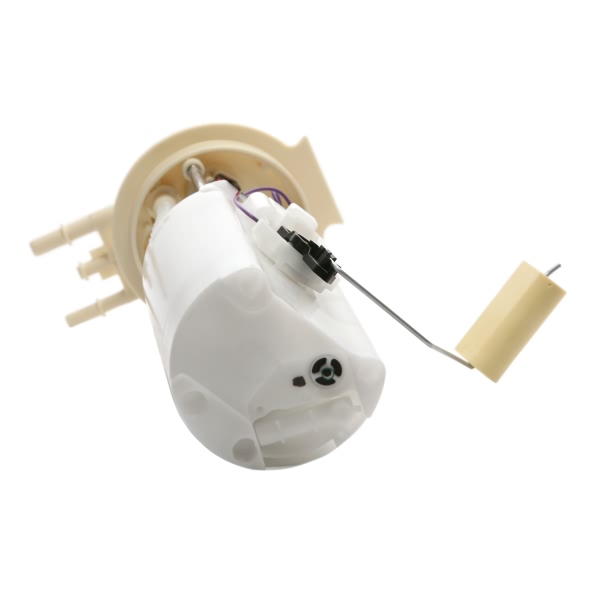

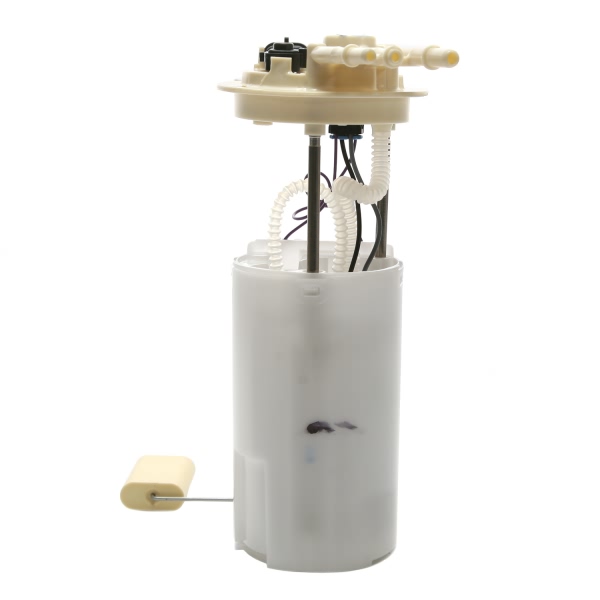

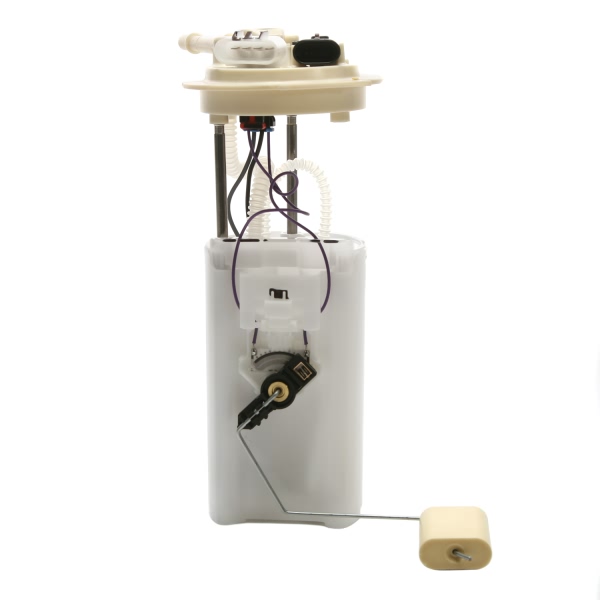

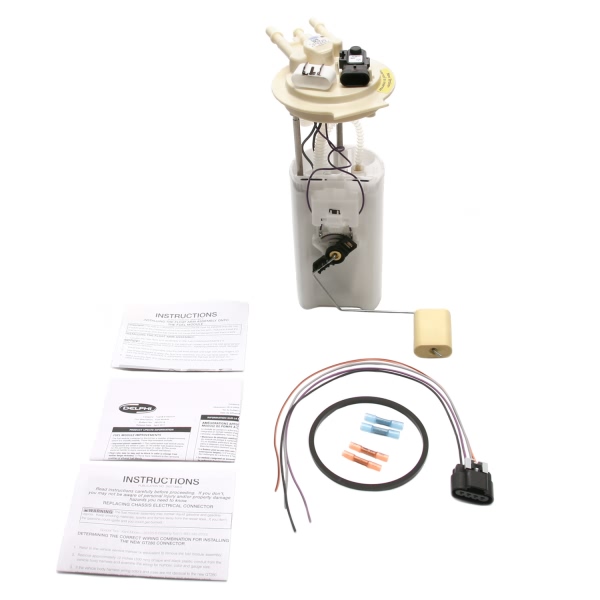

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 17 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 109.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 40.0 |
Resistance Ohms Full | 250.0 |
Strainer Included | Yes |
System Pressure | 52 psi |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604075890 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2002-2003 Chevrolet Venture | All Trims | 6 Cyl 3.4L |
2002-2003 Oldsmobile Silhouette | All Trims | 6 Cyl 3.4L |
2002-2003 Pontiac Montana | All Trims | 6 Cyl 3.4L |
