Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0234 |

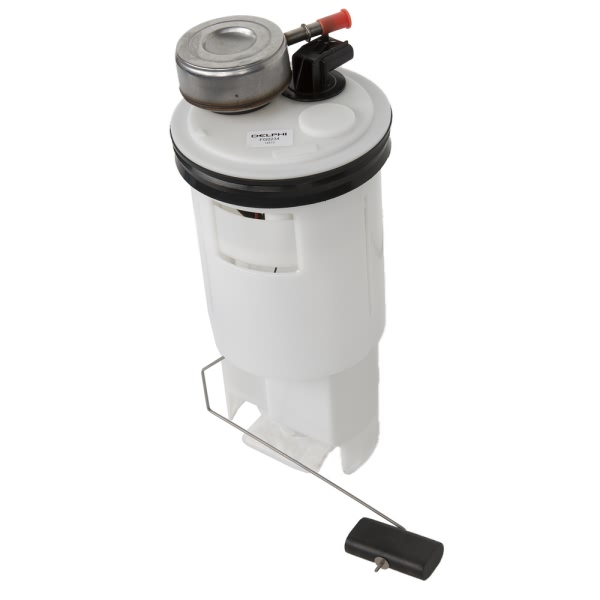

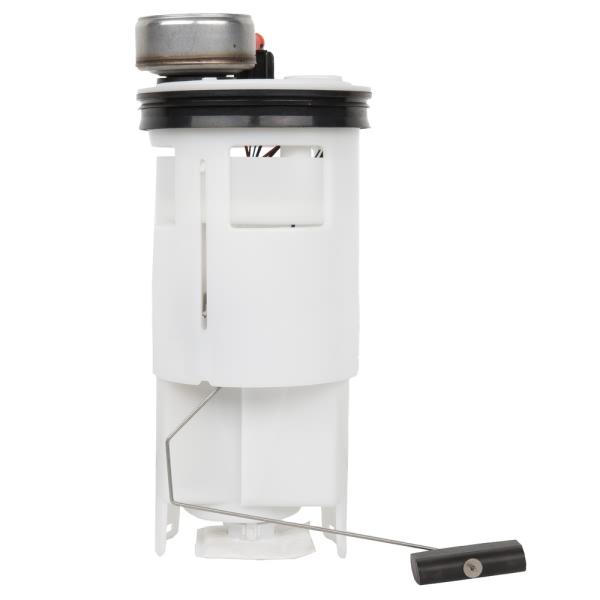

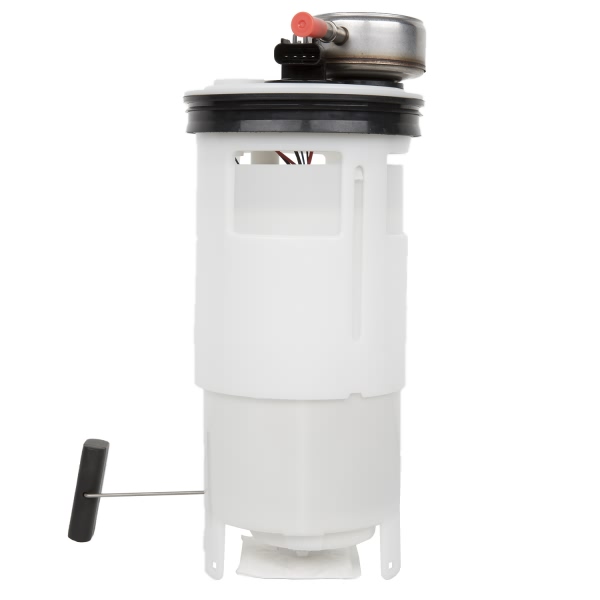

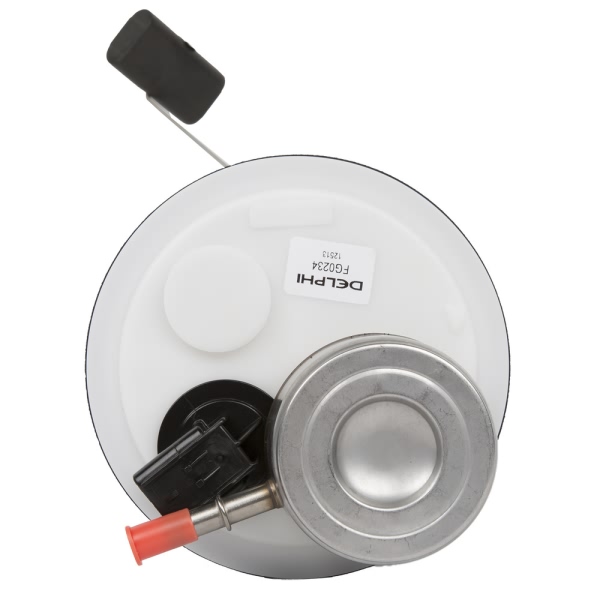

Part Description | Fuel Pump Module Assembly |
Current Draw | 6 |
Flow Rating | 28 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |

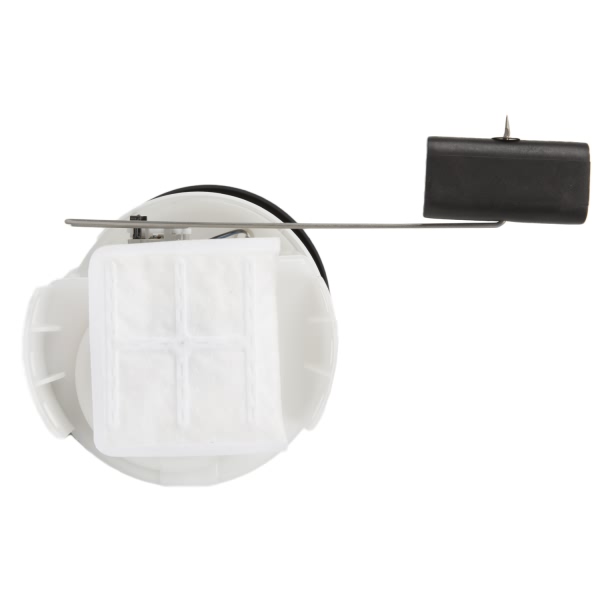

Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 73.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 224.0 |
Resistance Ohms Full | 19.0 |
Strainer Included | Yes |
System Pressure | 49 psi |

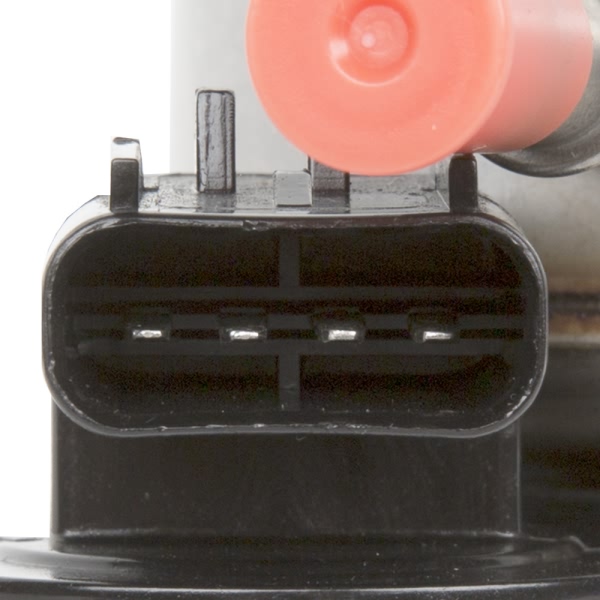

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604061718 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1997-1999 Dodge Dakota | All Trims | 4 Cyl 2.5L |
1997-1999 Dodge Dakota | All Trims | 6 Cyl 3.9L |
1997-1999 Dodge Dakota | All Trims | 8 Cyl 5.2L |
1998-1999 Dodge Dakota | All Trims | 8 Cyl 5.9L |
