Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |

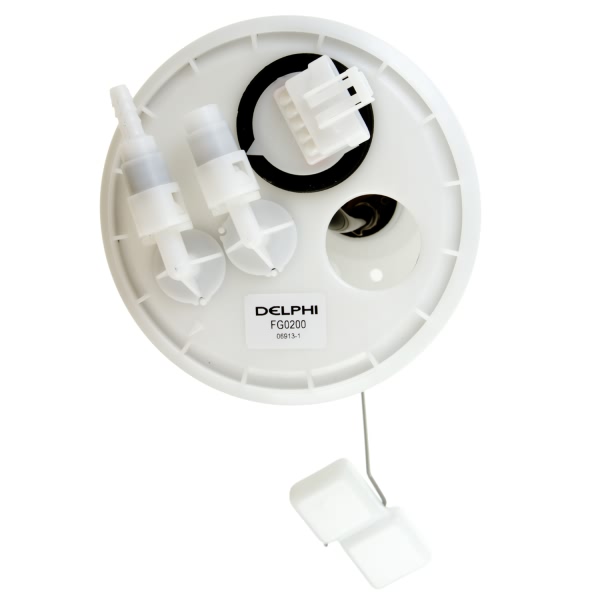

Part Number | FG0200 |

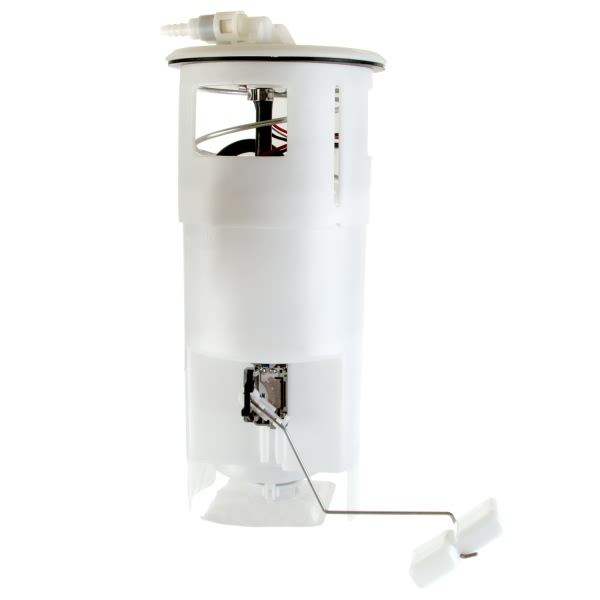

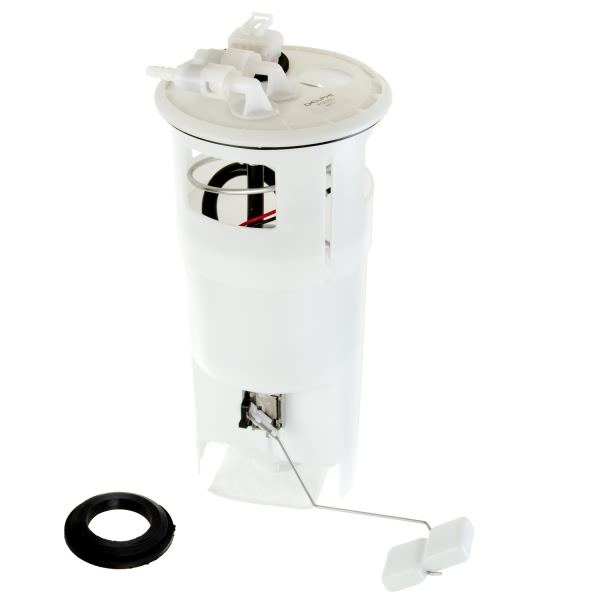

Part Description | Fuel Pump Module Assembly |
Current Draw | 8 |
Flow Rating | 23 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |

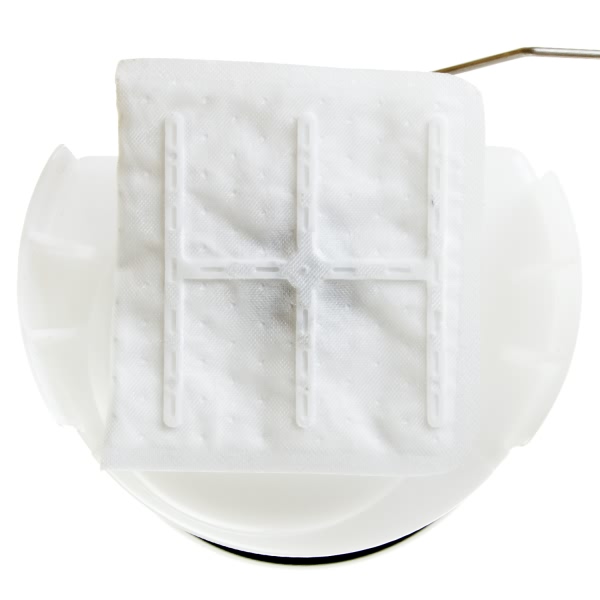

Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 105.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 1015.0 |
Resistance Ohms Full | 2.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

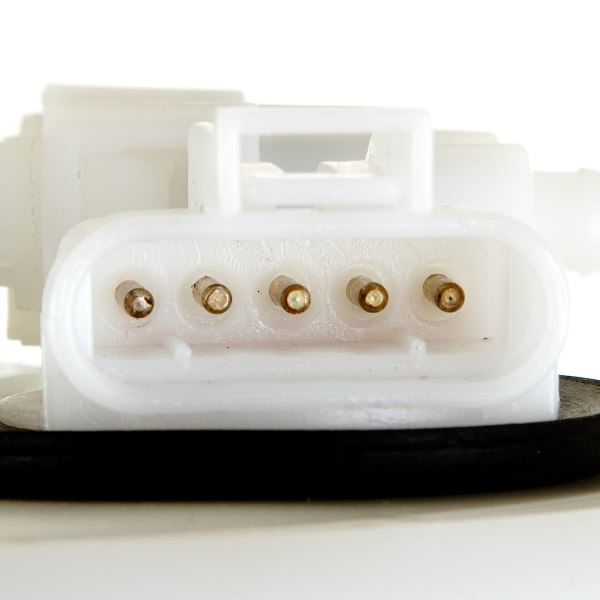

Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | Pin |
UPC | 689604061374 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1993-1995 Chrysler Concorde | All Trims | 6 Cyl 3.3L |
1993-1995 Chrysler Concorde | All Trims | 6 Cyl 3.5L |
1993-1994 Chrysler Intrepid | All Trims | 6 Cyl 3.3L |
1993-1995 Chrysler Intrepid | All Trims | 6 Cyl 3.5L |
1994-1995 Chrysler LHS | All Trims | 6 Cyl 3.5L |
1994-1995 Chrysler New Yorker | All Trims | 6 Cyl 3.5L |
1993-1995 Dodge Intrepid | All Trims | 6 Cyl 3.3L |
1993-1995 Dodge Intrepid | All Trims | 6 Cyl 3.5L |
1993-1995 Eagle Vision | All Trims | 6 Cyl 3.3L |
1993-1995 Eagle Vision | All Trims | 6 Cyl 3.5L |
