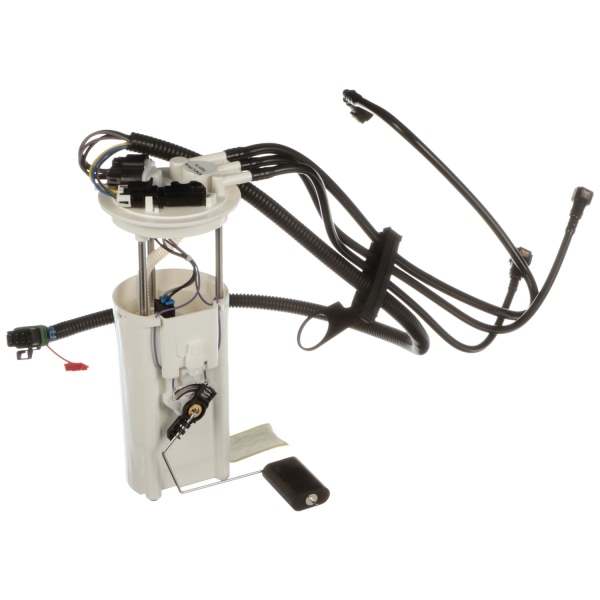

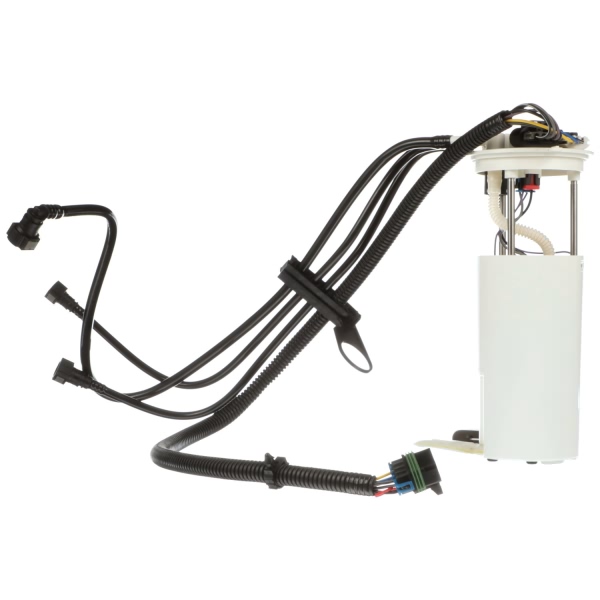

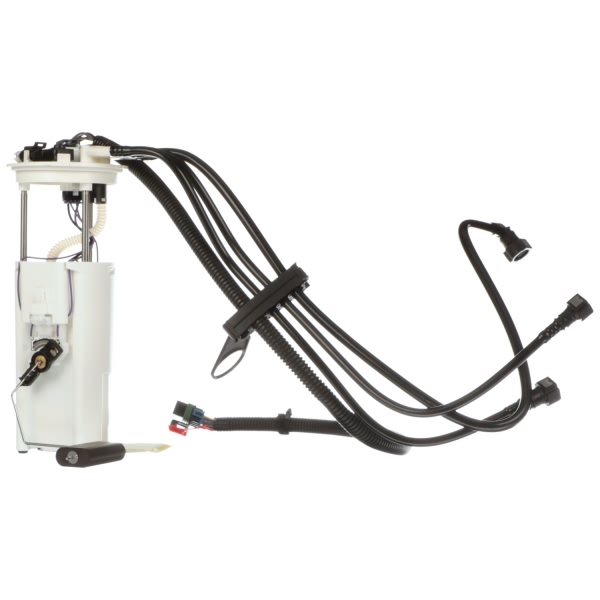

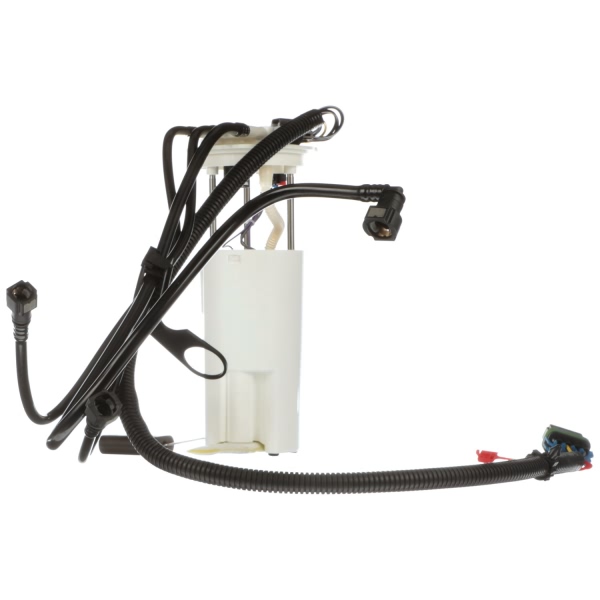

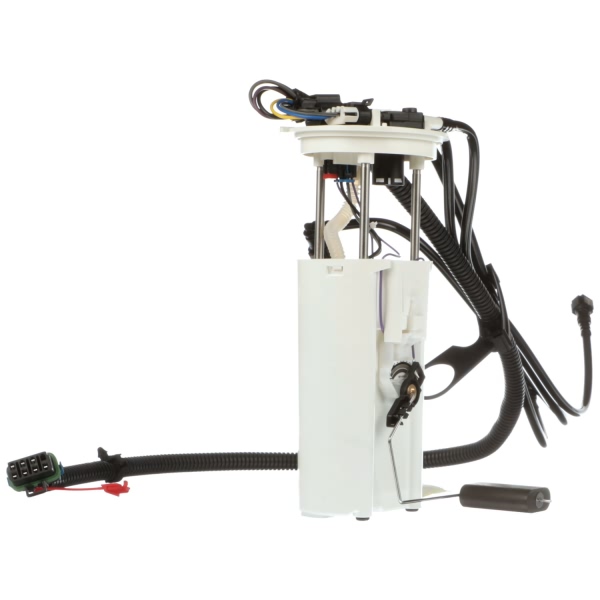

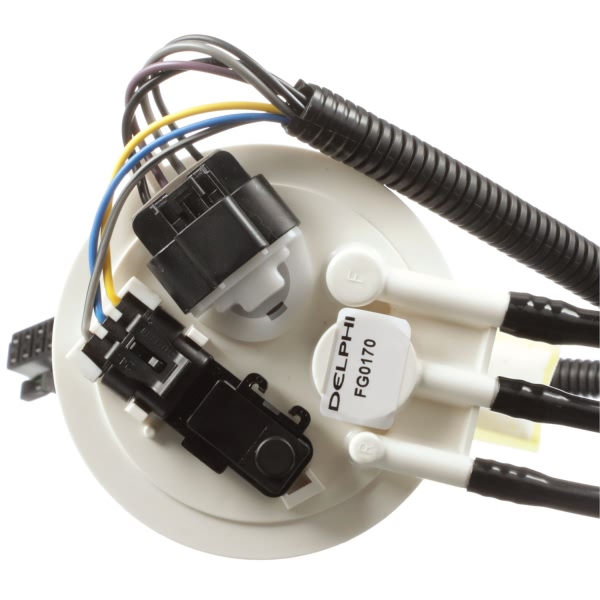

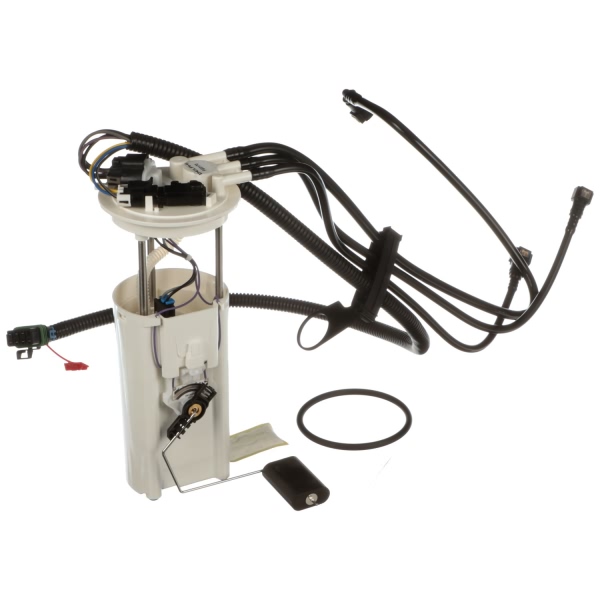

Delphi® Fuel Pump Module Assembly FG0170

Delphi Fuel Pump Module Assembly FG0170
$83.44
In Stock. Ships in 1-3 Business Days

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Includes
  • Features
  • Product Information
  • Warranty
  • Vehicle Fitment
  • Specifications

    BrandDelphi
    Part NumberFG0170
    Part DescriptionFuel Pump Module Assembly
    Current Draw10
    Flow Rating12 gph
    Fuel Level Sender Assembly IncludedYes
    Fuel TypeGas
    Gasket or Seal IncludedYes
    In Tank or ExternalIn Tank
    Inlet TypeStrainer
    Internal or External StrainerInternal
    Item GradeStandard Replacement
    Maximum Pressure109.0 PSI
    Outlet Outside Diameter0.375''
    Outlet Quantity3

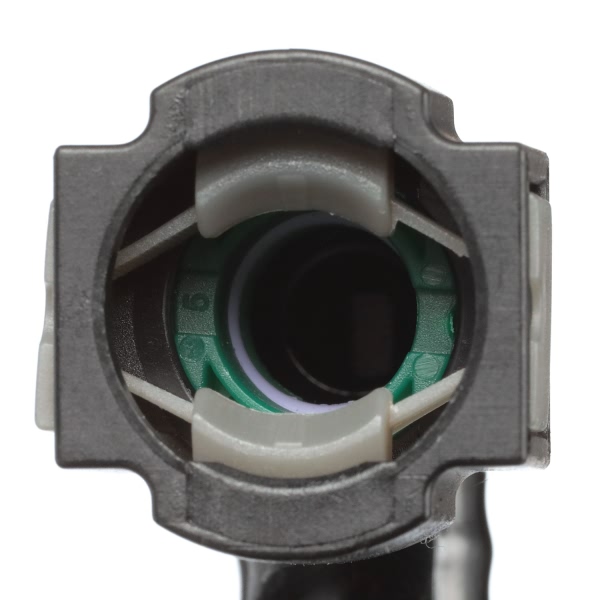

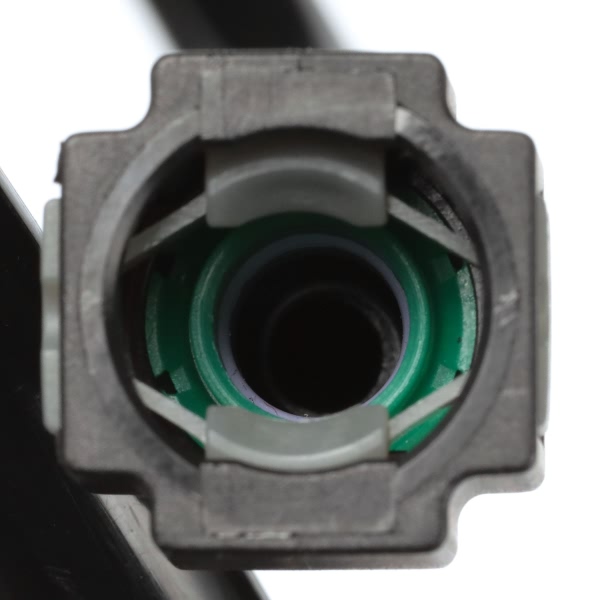

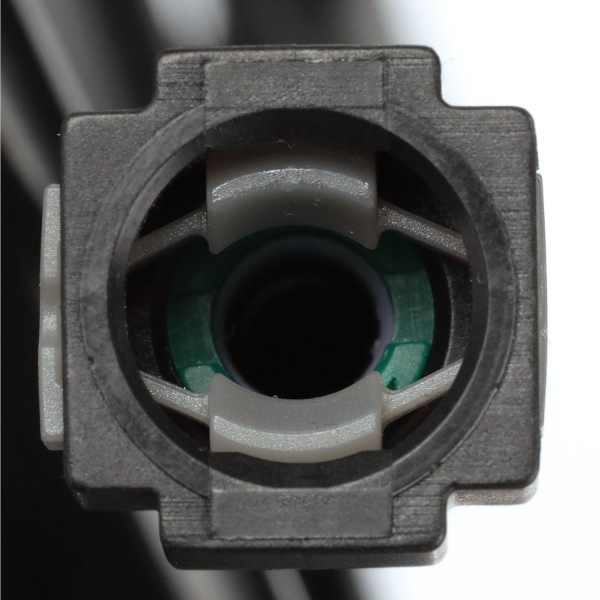

    Outlet TypeFemale Quick Connect
    Pump TypeElectric
    Regulator IncludedNo
    Resistance Ohms Empty0.1
    Resistance Ohms Full90.0
    Strainer IncludedYes
    System Pressure44 psi

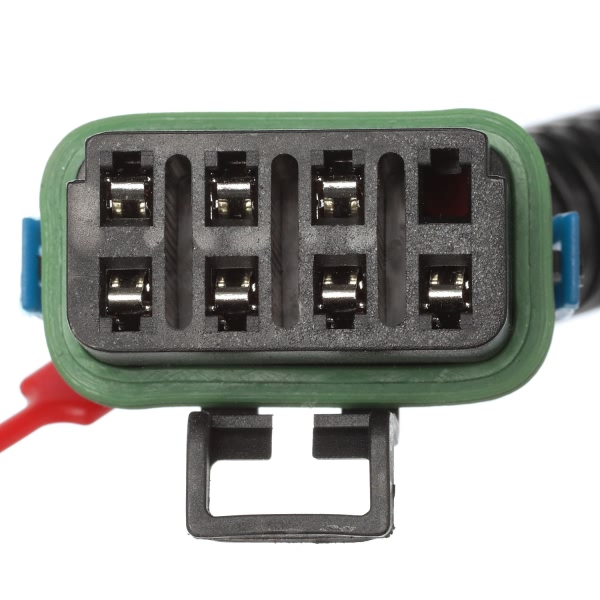

    Terminal GenderMale
    Terminal Quantity4
    Terminal TypeBlade
    UPC689604061077
    Vapor Pressure SensorYes
    Voltage13.0 VDC
    Warning: California’s Proposition 65
  • Includes

    • Fuel Pump Module Assembly with Float Arm
    • Seal
    • (4) Splices
    • Wire Harness
    • Instruction Sheet
  • Features

    Delphi Fuel Pump Module Assembly are featured as follows:
    • Compatible with positive displacement or turbine pumps.
    • Enables quick-pressure performance to be restored, enhancing pump efficiency with less energy.
    • Prevent chafing in fuel tubes caused by internal springs which protect fuel flow and pressure.
    • Enhanced security and durability with multiple redundant buttons on the fuel level sensor.
    • Provides an OE-like part with a specific integrated fuel vapor pressure sensor to prevent false ""check engine"" alerts.

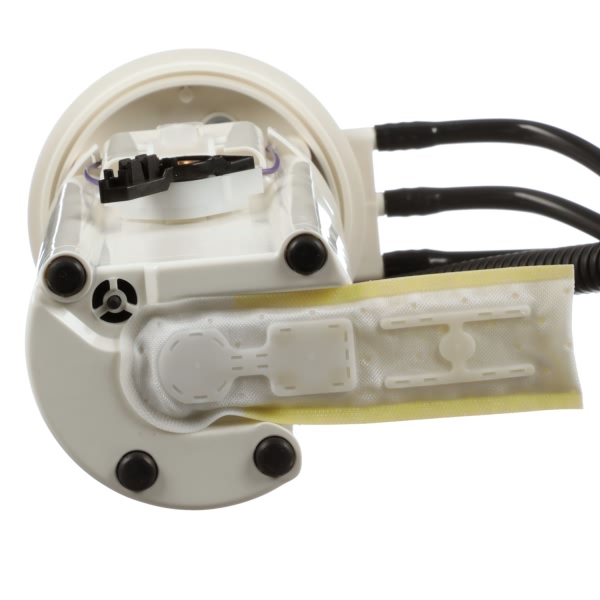

    • The dual-strainer system prolongs pump life by effectively filtering out contaminants.
    • Designed to withstand extreme temperatures, prompt engine starts, low-fuel conditions.
    The Delphi Fuel Pump Module Assembly FG0170 is made to restore system integrity and fast-pump pressure resulting in greater pumping through lower energy. It features internal springs for increased durability and enhanced stability, preventing fuel tube chafing and possible loss of fuel flow and pressure. Designed to operate under extreme temperatures and avoid low-fuel hesitation, including alcohol fuels and blends. Also, the pump has two strainers for better filtering of impurities to extend the pump's life span. Delphi fuel pump comes with both positive displacement and turbine pumps, and also an integrated fuel vapor pressure sensor to keep off greenhouse gas emissions.
    Delphi is a respectable brand within the automotive industry for over 100 years. They started to making the first automobile radiator (in 1911), the first vehicle air conditioning system (in 1954), and the initial car heater (in 1929). As a leader in OE-quality products, Delphi manufactures efficient and reliable compressors that are utilized in more than 3,400 applications in North America. The company continues to maintain its focus on quality and innovation by manufacturing most of its products within North America.
  • Product Information

  • Warranty

    Limited Lifetime
  • Vehicle Fitment

    Year Make Model Trim Engine
    1996-1998 Buick SkylarkAll Trims4 Cyl 2.4L
    1996-1998 Buick SkylarkAll Trims6 Cyl 3.1L
    1996-1998 Chevrolet CavalierAll Trims4 Cyl 2.2L
    1996-1998 Chevrolet CavalierAll Trims4 Cyl 2.4L
    1996-1998 Oldsmobile AchievaAll Trims4 Cyl 2.4L
    1996-1998 Oldsmobile AchievaAll Trims6 Cyl 3.1L
    1996-1998 Pontiac Grand AmAll Trims4 Cyl 2.4L
    1996-1998 Pontiac Grand AmAll Trims6 Cyl 3.1L
    1996-1998 Pontiac SunfireAll Trims4 Cyl 2.2L
    1996-1998 Pontiac SunfireAll Trims4 Cyl 2.4L
