Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0164 |

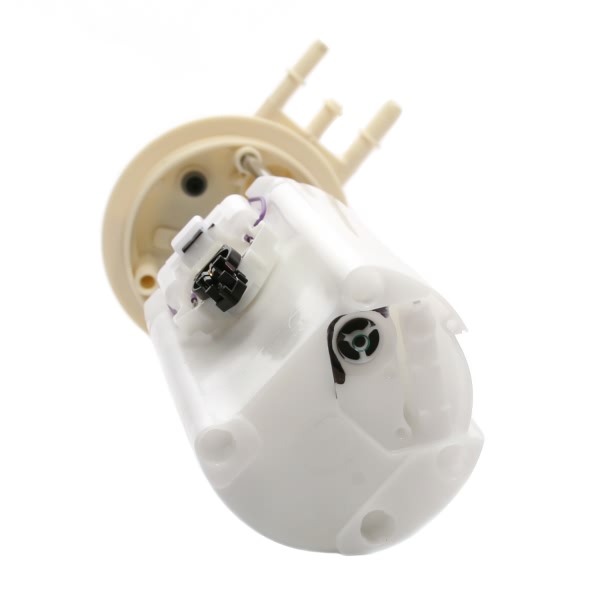

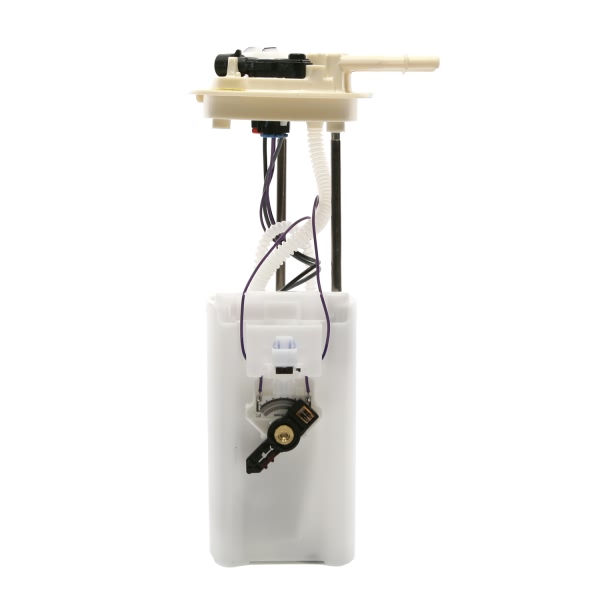

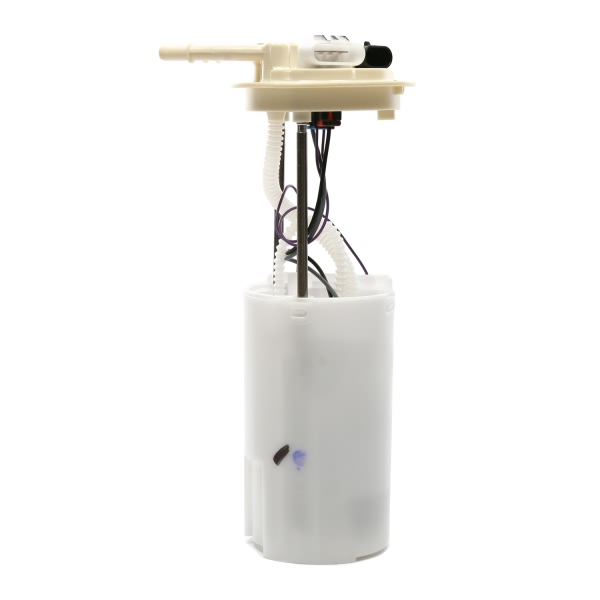

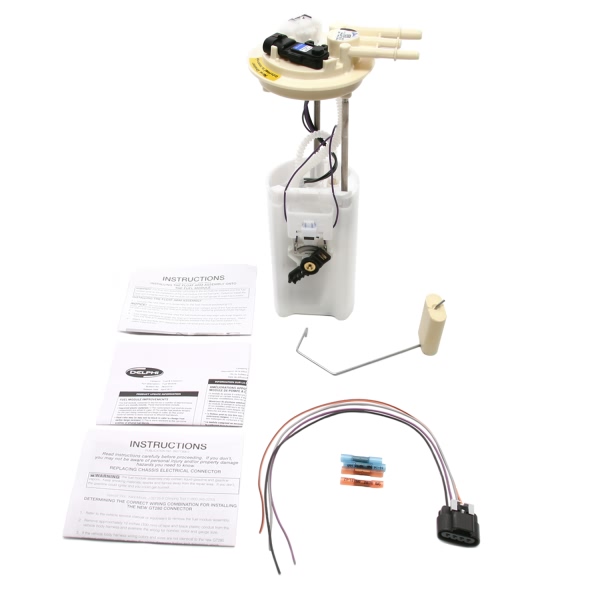

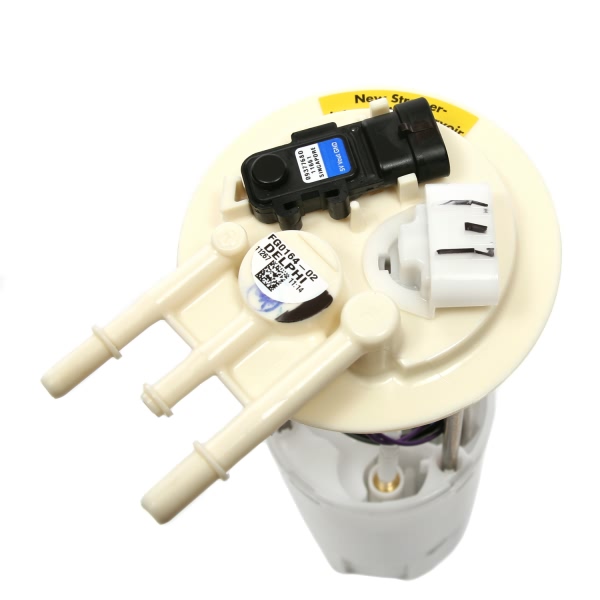

Part Description | Fuel Pump Module Assembly |
Current Draw | 5 |
Flow Rating | 23 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 109.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 80.0 |
Resistance Ohms Full | 291.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

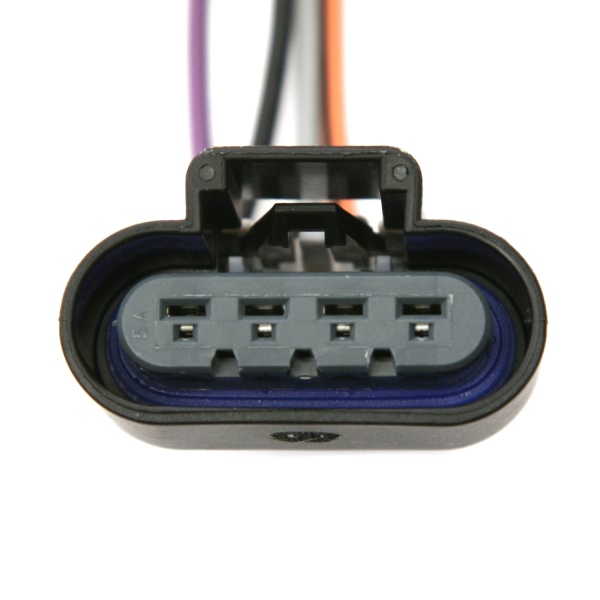

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604061015 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2001 Honda Passport | All Trims | 6 Cyl 3.2L |
2002 Isuzu Axiom | All Trims | 6 Cyl 3.5L |
2001 Isuzu Rodeo | All Trims | 4 Cyl 2.2L |
2001 Isuzu Rodeo | All Trims | 6 Cyl 3.2L |
2001 Isuzu Rodeo Sport | All Trims | 6 Cyl 3.2L |
