Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0111 |

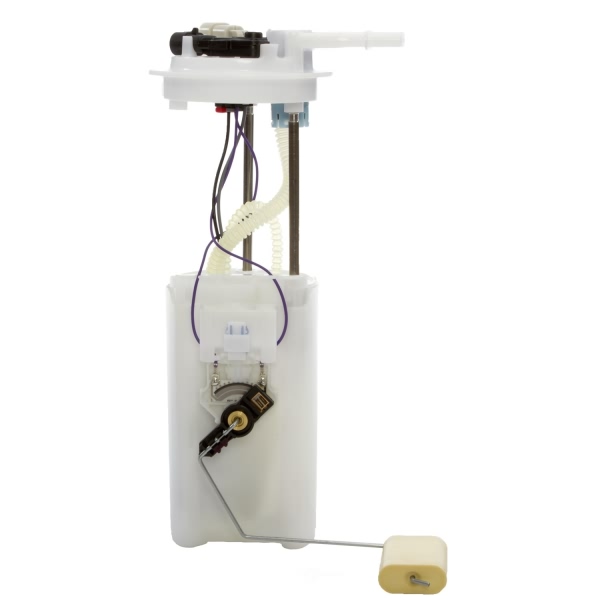

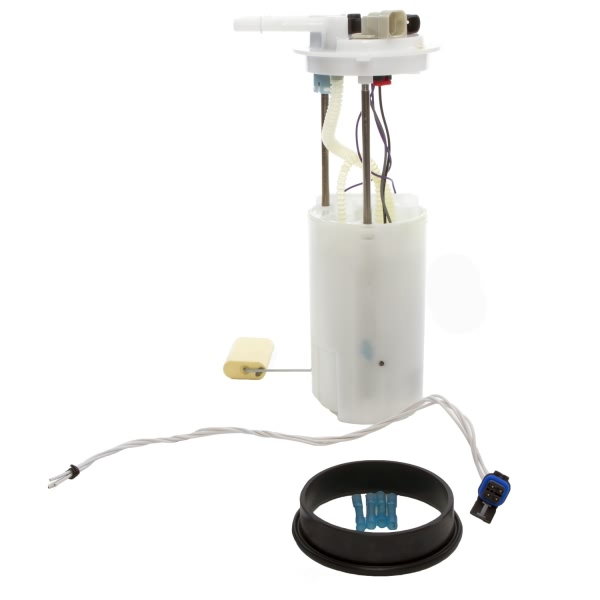

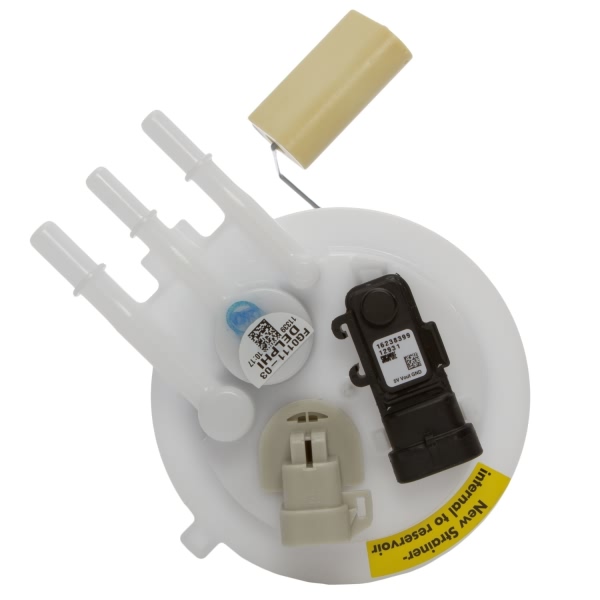

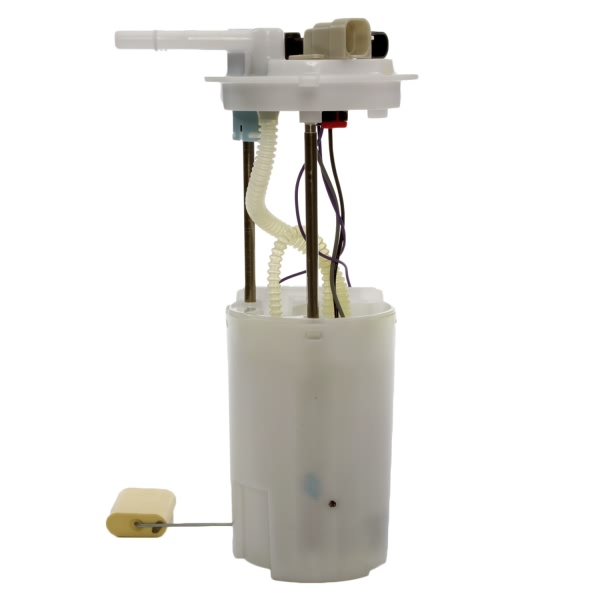

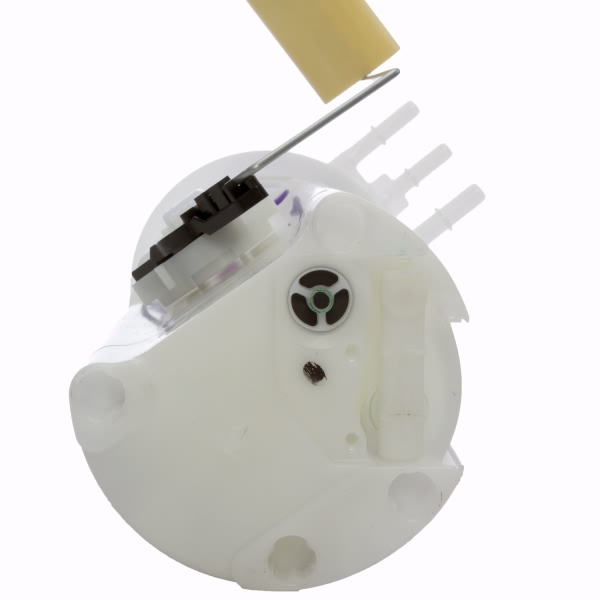

Part Description | Fuel Pump Module Assembly |
Current Draw | 7 |
Flow Rating | 17 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 109.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 40.0 |
Resistance Ohms Full | 250.0 |
Strainer Included | Yes |
System Pressure | 52 psi |

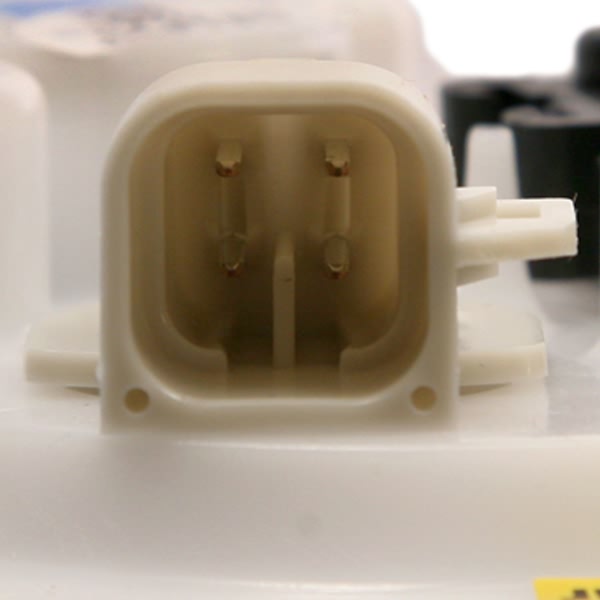

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604060483 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2000-2003 Buick Century | All Trims | 6 Cyl 3.1L |
2000-2003 Buick Regal | All Trims | 6 Cyl 3.8L |
2000-2003 Chevrolet Impala | All Trims | 6 Cyl 3.4L |
2000-2003 Chevrolet Impala | All Trims | 6 Cyl 3.8L |
2000-2003 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.4L |
2000-2003 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.8L |
2001-2002 Oldsmobile Intrigue | All Trims | 6 Cyl 3.5L |
2001-2003 Pontiac Grand Prix | All Trims | 6 Cyl 3.1L |
2001-2003 Pontiac Grand Prix | All Trims | 6 Cyl 3.8L |
