Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0094 |

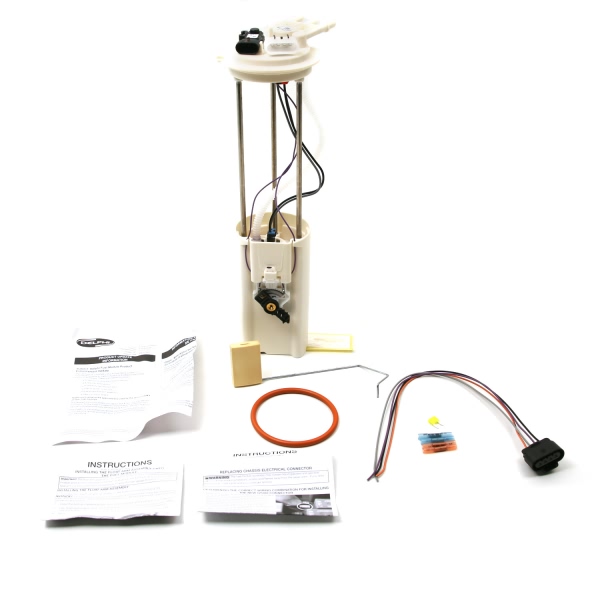

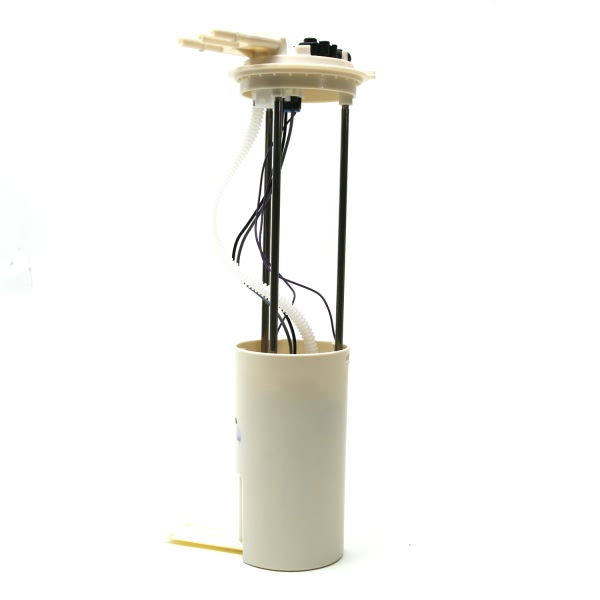

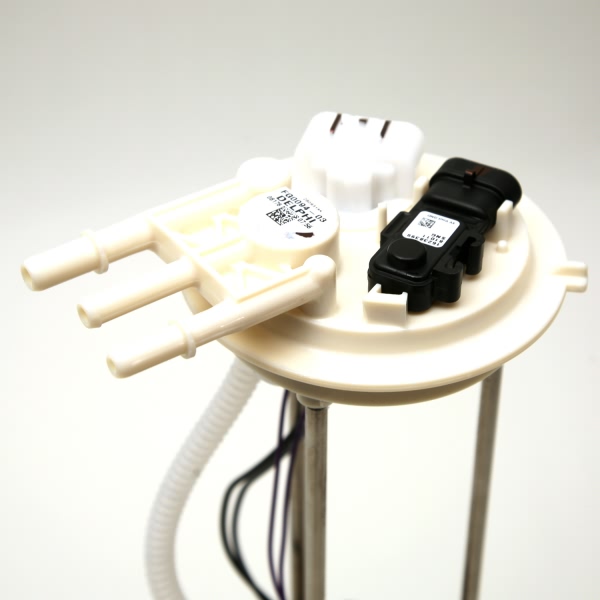

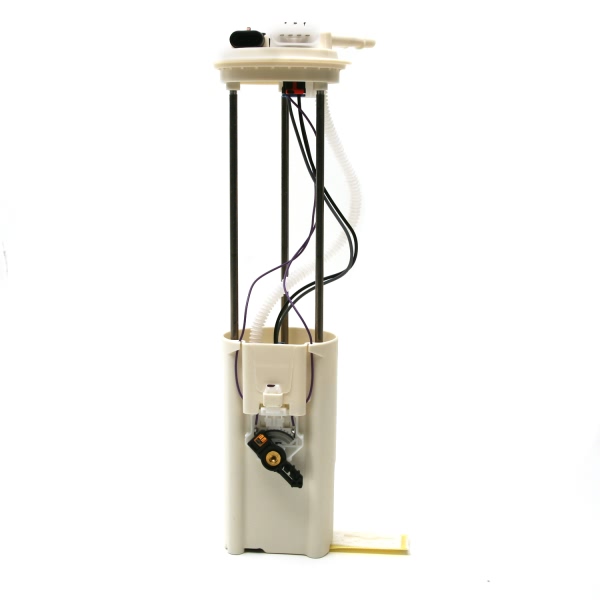

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 24 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |

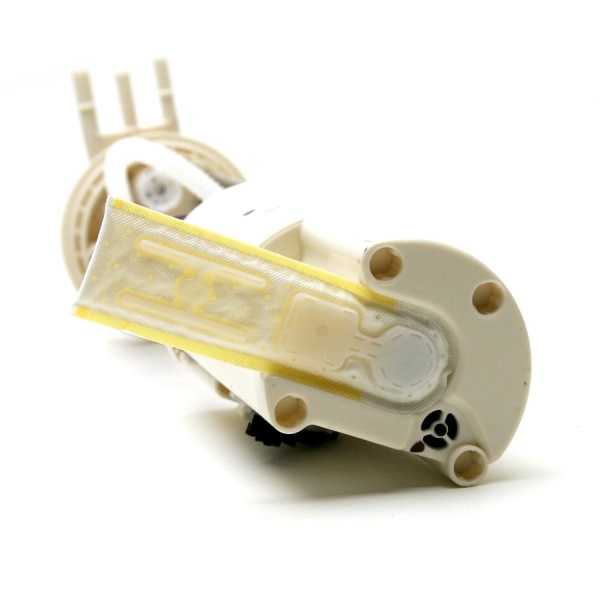

Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 109.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 40.0 |
Resistance Ohms Full | 250.0 |
Strainer Included | Yes |
System Pressure | 62 psi |

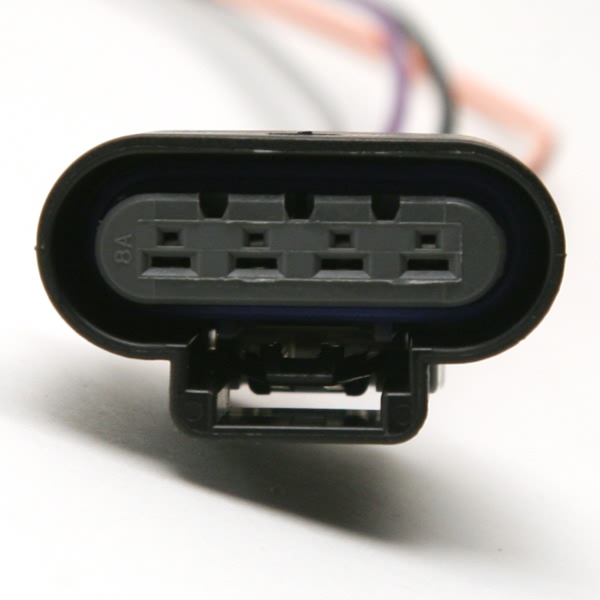

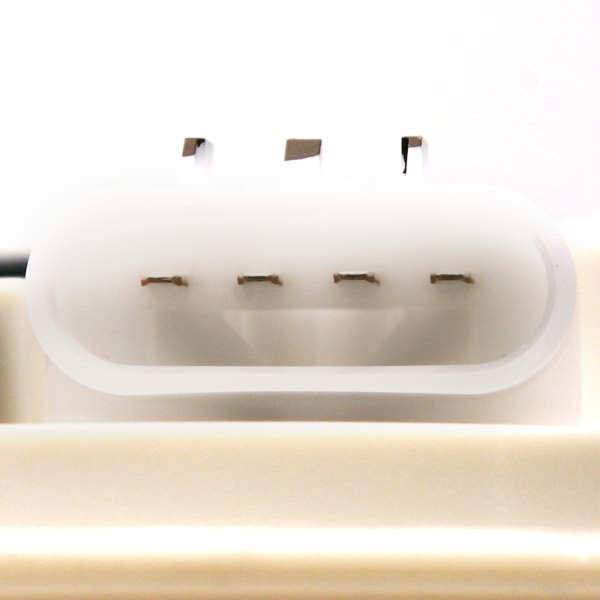

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604060315 |
Vapor Pressure Sensor | No |
Voltage | 13.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2000 Chevrolet C3500 | All Trims | 8 Cyl 5.7L |
2000 Chevrolet C3500 | All Trims | 8 Cyl 7.4L |
1998-2000 Chevrolet K3500 | All Trims | 8 Cyl 5.7L |
1998-2000 Chevrolet K3500 | All Trims | 8 Cyl 7.4L |
2000 GMC C3500 | All Trims | 8 Cyl 5.7L |
2000 GMC C3500 | All Trims | 8 Cyl 7.4L |
1998-2000 GMC K3500 | All Trims | 8 Cyl 5.7L |
1998-2000 GMC K3500 | All Trims | 8 Cyl 7.4L |
