Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0023 |

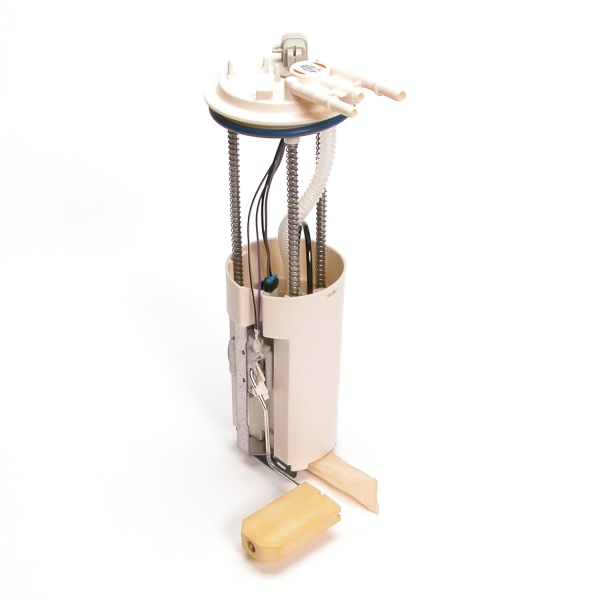

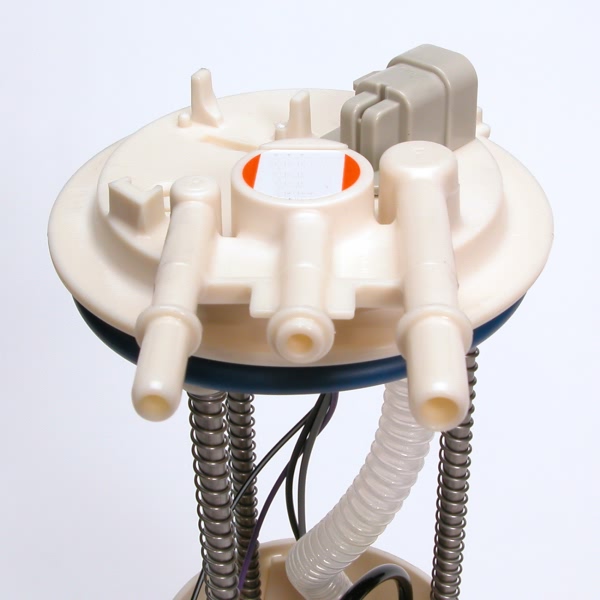

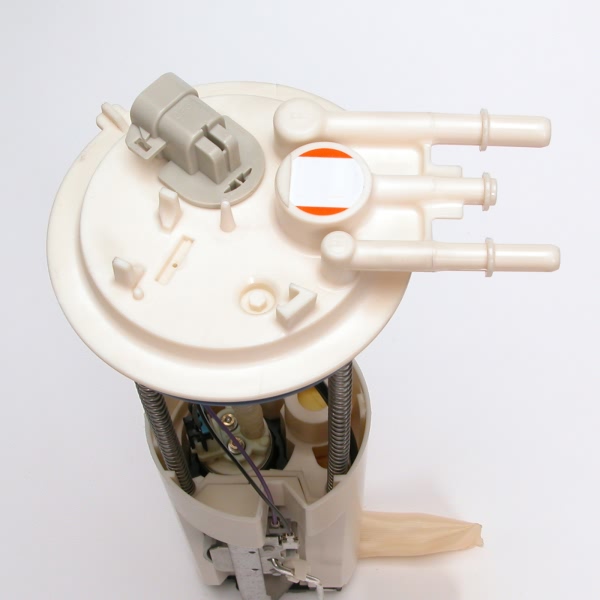

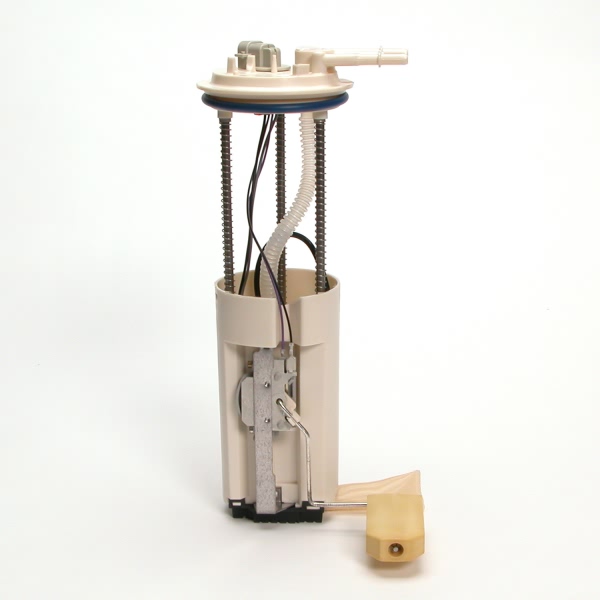

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 23 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 109.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 0.1 |
Resistance Ohms Full | 90.0 |
Strainer Included | Yes |
System Pressure | 62 psi |

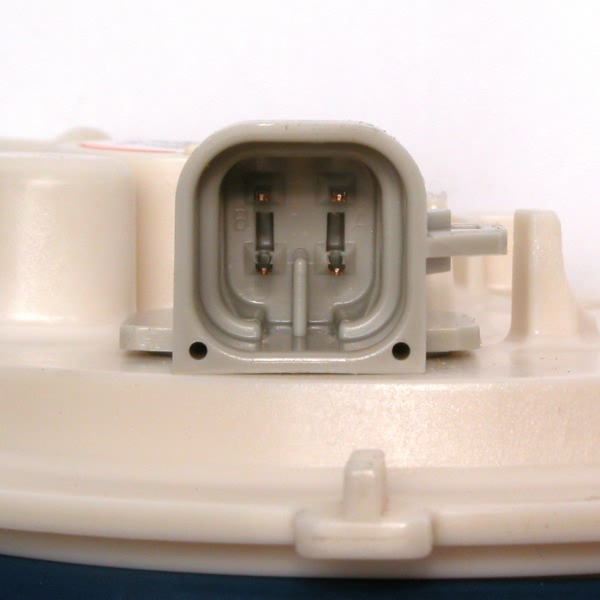

Terminal Gender | Female |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604059609 |
Vapor Pressure Sensor | No |
Voltage | 13.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1996 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L |
1996 Chevrolet Express 1500 | All Trims | 8 Cyl 5.0L |
1996 Chevrolet Express 1500 | All Trims | 8 Cyl 5.7L |
1996 Chevrolet Express 2500 | All Trims | 6 Cyl 4.3L |
1996 Chevrolet Express 2500 | All Trims | 8 Cyl 5.0L |
1996 Chevrolet Express 2500 | Base | 8 Cyl 5.7L |
1996 Chevrolet Express 2500 | LS | 8 Cyl 5.7L |
1996 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L |
1996 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L |
1996 GMC Savana 1500 | All Trims | 6 Cyl 4.3L |
