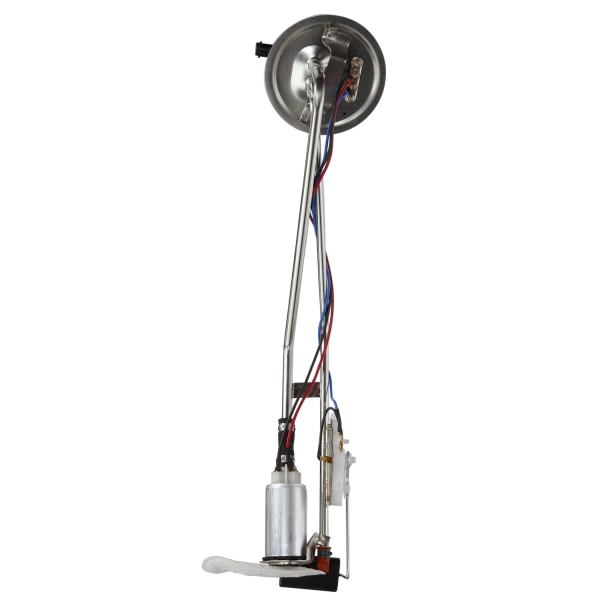

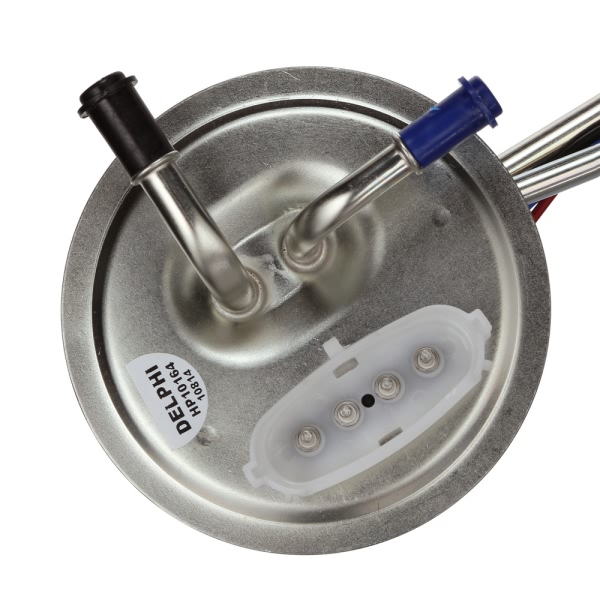

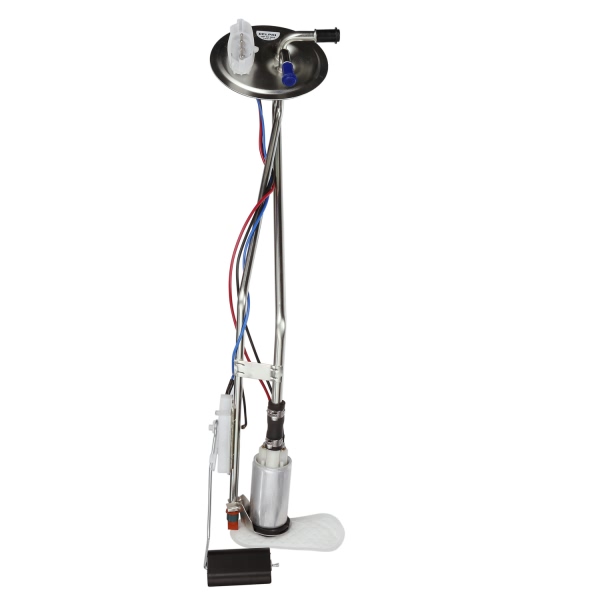

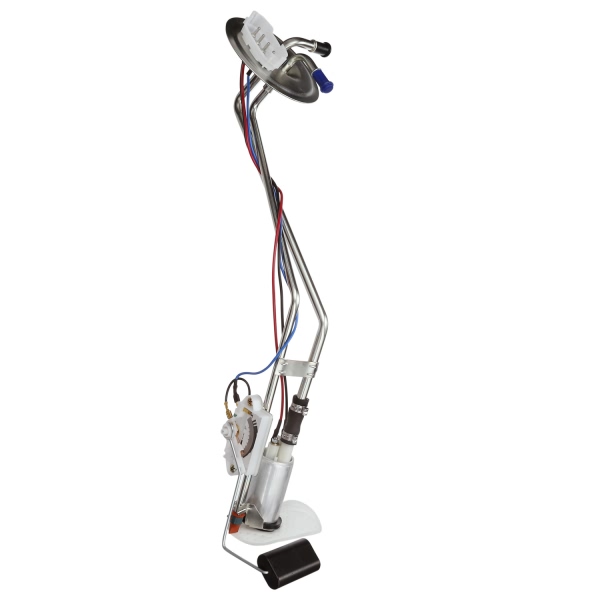

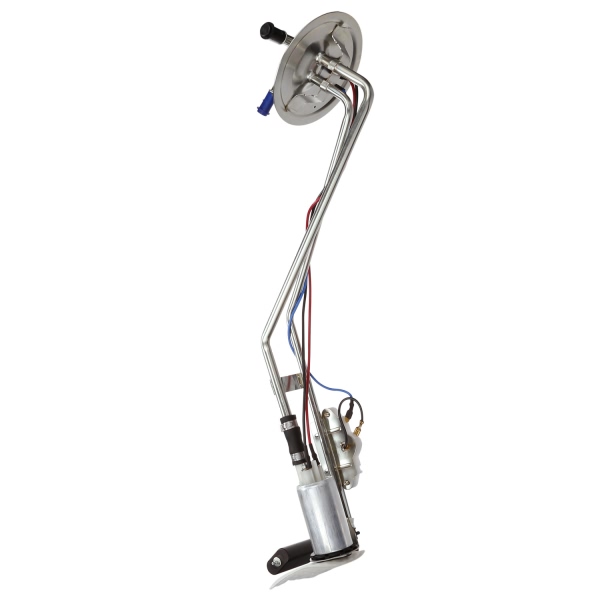

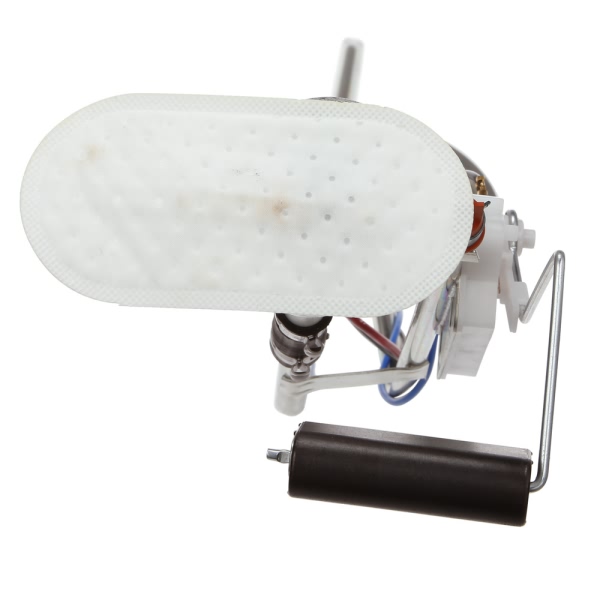

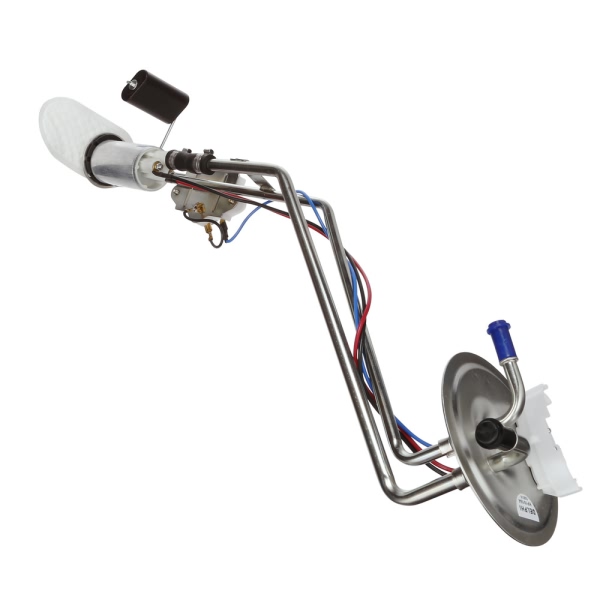

Delphi® Fuel Pump Hanger Assembly HP10164

Delphi Fuel Pump Hanger Assembly HP10164
$110.09
In Stock. Ships in 1-3 Business Days

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Includes
  • Features
  • Product Information
  • Installation
  • Warranty
  • Vehicle Fitment
  • Specifications

    BrandDelphi
    Part NumberHP10164
    Part DescriptionFuel Pump Hanger Assembly
    Current Draw6
    Flow Rating29 gph
    Fuel Level Sender Assembly IncludedYes
    Fuel TypeGas
    Gasket or Seal IncludedYes
    In Tank or ExternalIn Tank
    Inlet TypeStrainer
    Internal or External StrainerExternal
    Item GradeStandard Replacement
    Maximum Pressure6.5 PSI
    Outlet Outside Diameter0.375''
    Outlet Quantity2
    Outlet TypeQuick Connect
    Pump TypeElectric
    Resistance Ohms Empty70.0
    Resistance Ohms Full10.0
    Strainer IncludedYes
    System Pressure4.5 psi

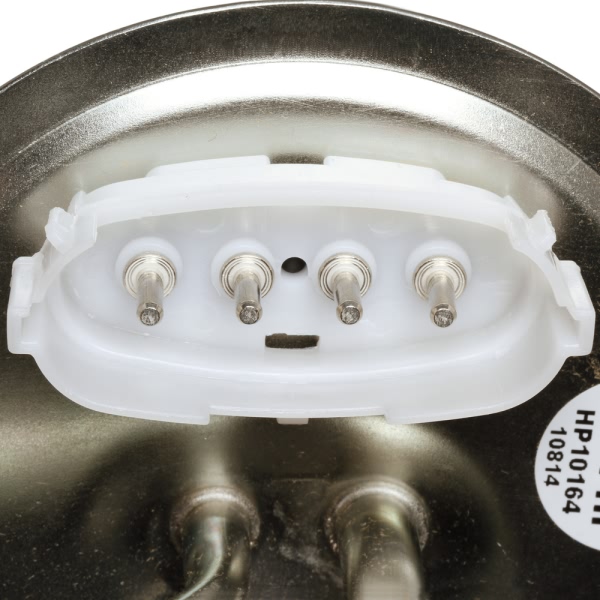

    Terminal GenderMale
    Terminal Quantity4
    Terminal TypePin
    UPC689604226636
    Voltage12.0 VDC
    Warning: California’s Proposition 65

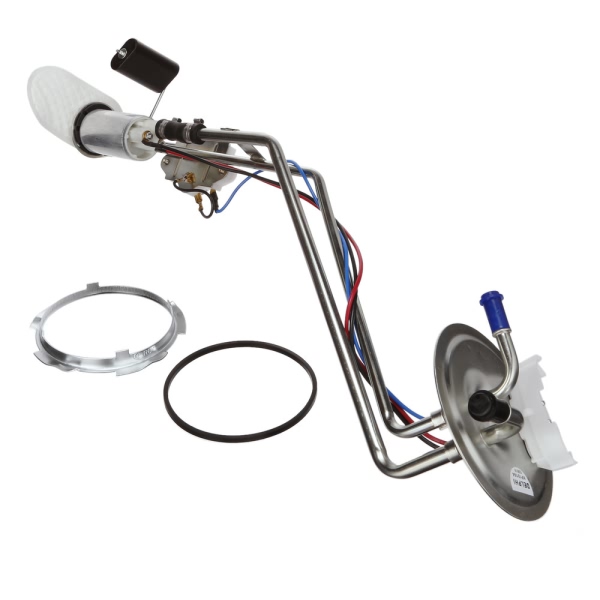

  • Includes

    • Fuel Pump Hanger Assembly with Float Arm
    • Seal
    • Lock Ring
    • Instruction Sheet
  • Features

    Delphi Fuel Pump Hanger Assembly are featured as follows:
    • Design to improve fuel efficiency by replacing old components.
    • Built from high-quality material for higher performance levels.
    • Exceed the standard manufacturing measures by the OEMs.
    • Enhances fuel pumping pressure for efficient fuel pumping.
    • Features internal springs for increased durability and stability.
    • Reduces greenhouse gas emissions with integrated OE fuel vapor pressure sensor.
    • Two-strainer system extends pump life by filtering contaminants.
    Delphi Fuel Pump Hanger Assembly HP10164 is a premium replacement part that made to improve your vehicle's fuel efficiency and performance. Constructed from superior materials, this pump is crafted to replace the original, ensuring an easy and straightforward installation. Moreover, it surpasses the OEM specifications and compatible with electronic fuel injection systems. It has a rapid pressure rise that makes pumping more efficient using less power. This reduces problems such as long cranking, hesitations and sluggishness in performance. Also, it has two strainers for better filtering of impurities to extend the pump's life span.
    Delphi is a respectable brand within the automotive industry for over 100 years. They started to making the first automobile radiator (in 1911), the first vehicle air conditioning system (in 1954), and the initial car heater (in 1929). As a leader in OE-quality products, Delphi manufactures efficient and reliable compressors that are utilized in more than 3,400 applications in North America. The company continues to maintain its focus on quality and innovation by manufacturing most of its products within North America.
  • Product Information

  • Installation

  • Warranty

    Limited Lifetime
  • Vehicle Fitment

    Year Make Model Trim Engine
    1986-1988 Ford RangerAll Trims4 Cyl 2.3L
    1986-1988 Ford RangerAll Trims6 Cyl 2.9L
