Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HP10152 |

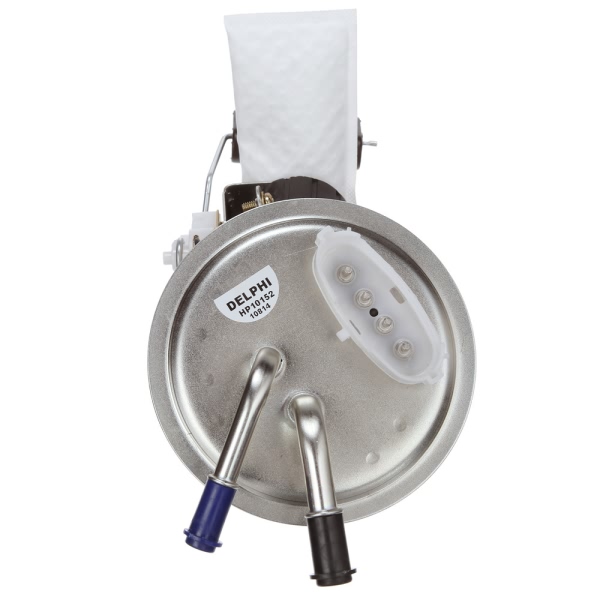

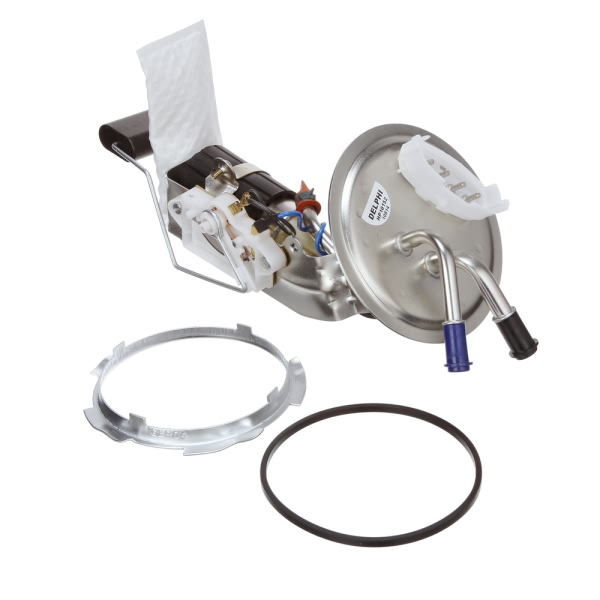

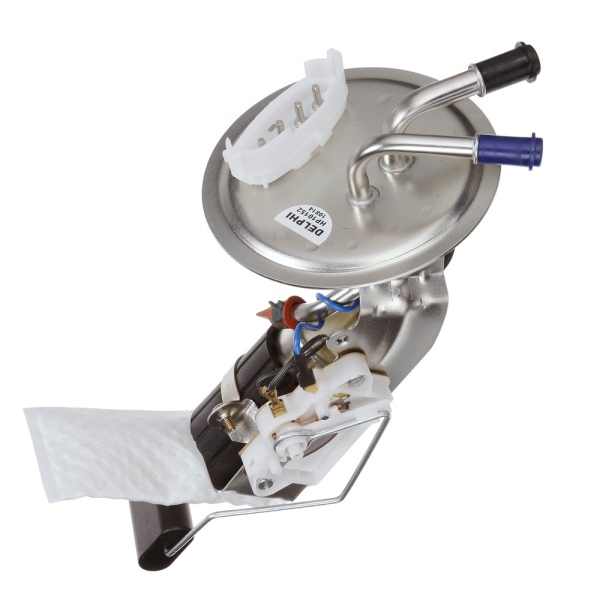

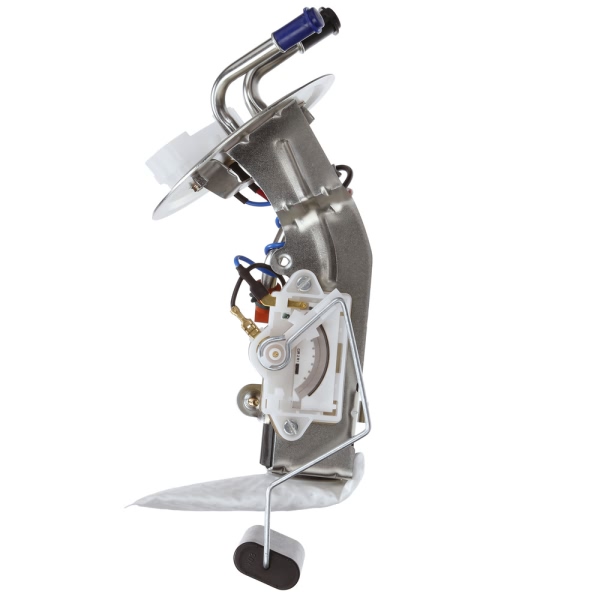

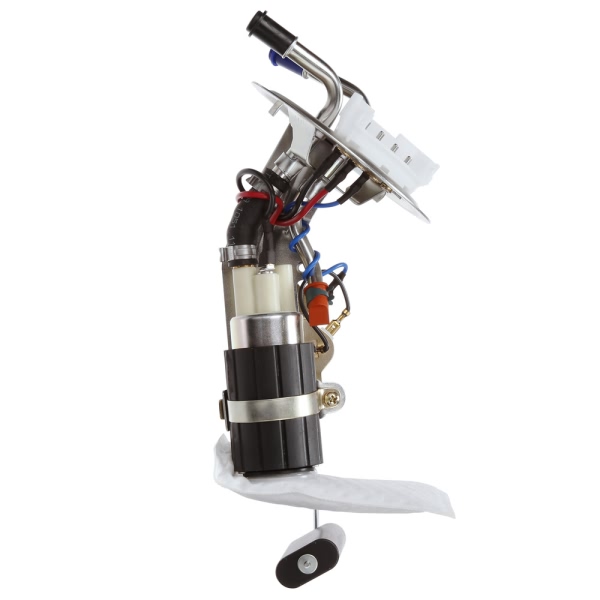

Part Description | Fuel Pump Hanger Assembly |
Current Draw | 7 |
Flow Rating | 22 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 73.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Resistance Ohms Empty | 10.0 |
Resistance Ohms Full | 160.0 |
Strainer Included | Yes |
System Pressure | 51 psi |

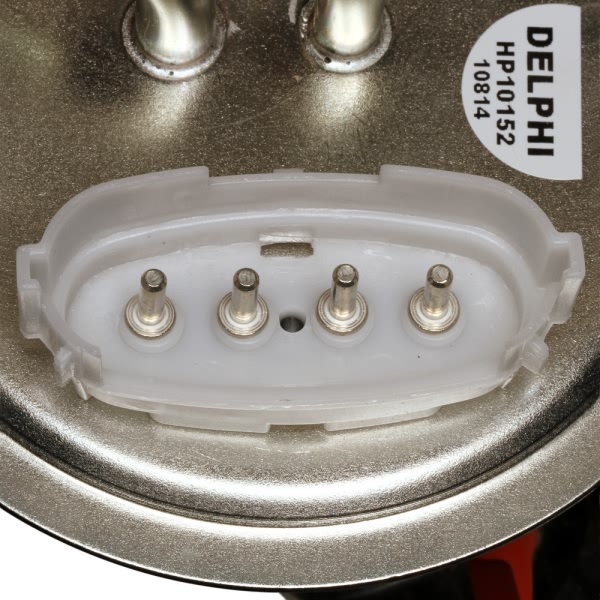

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604218648 |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1988-1994 Ford Tempo | All Trims | 4 Cyl 2.3L |
1992-1994 Ford Tempo | All Trims | 6 Cyl 3.0L |
1988-1994 Mercury Topaz | All Trims | 4 Cyl 2.3L |
1992-1994 Mercury Topaz | All Trims | 6 Cyl 3.0L |
