Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HP10231 |

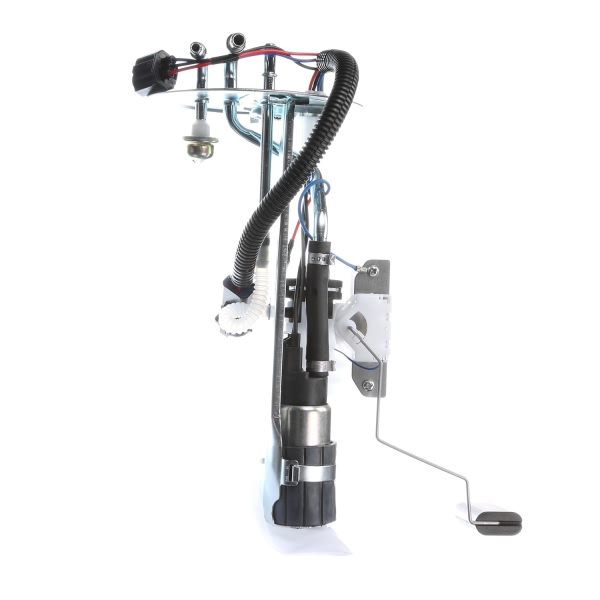

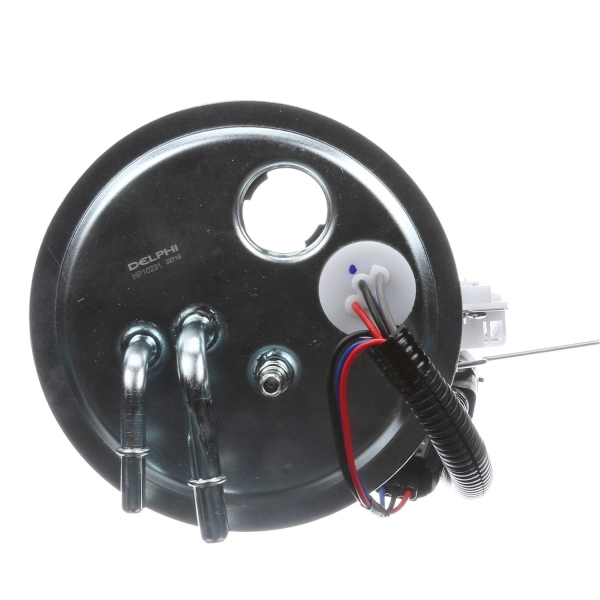

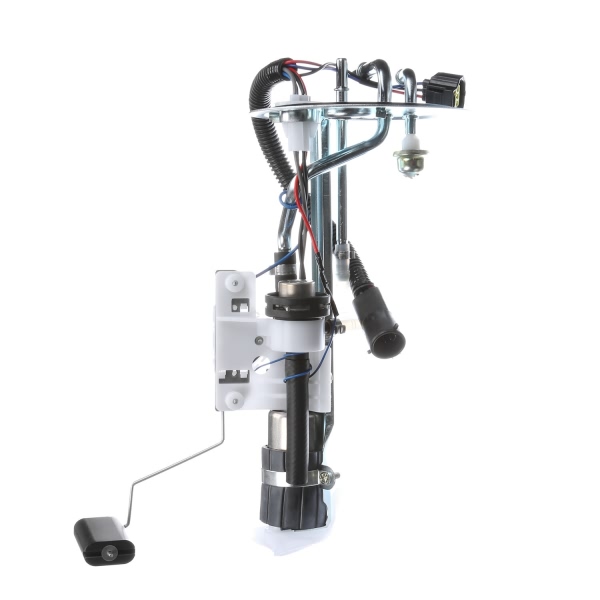

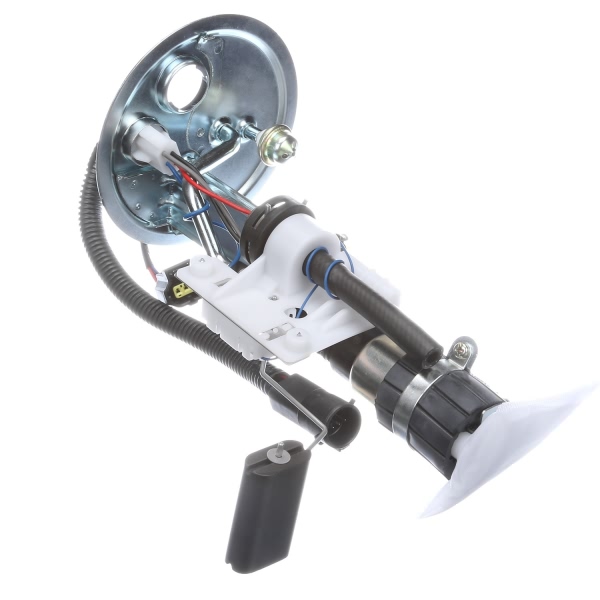

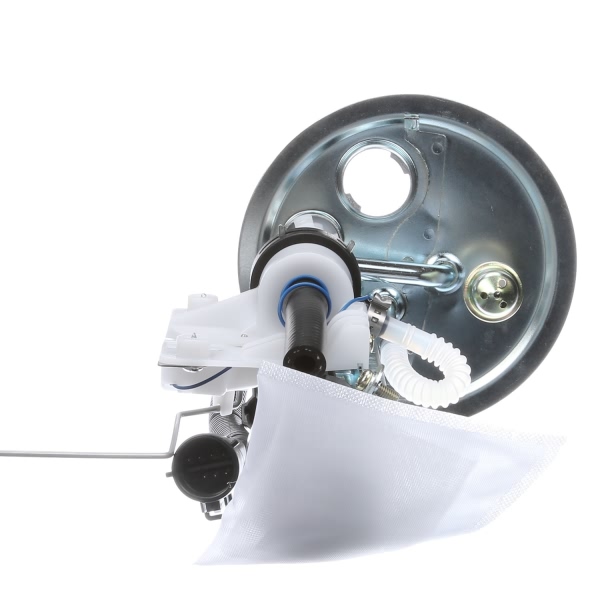

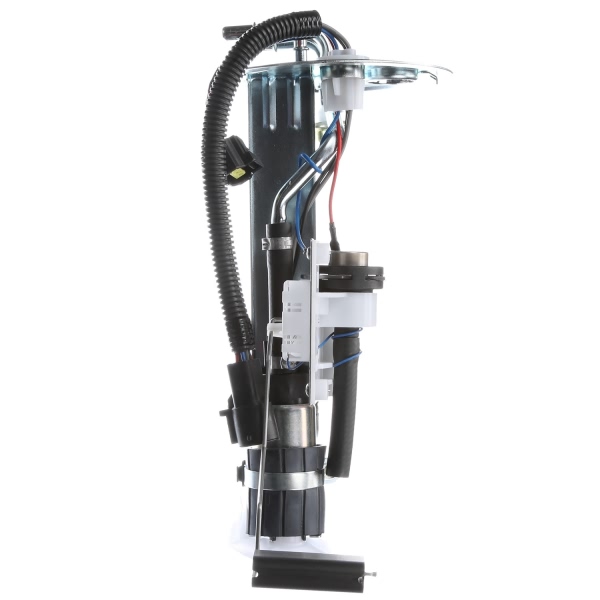

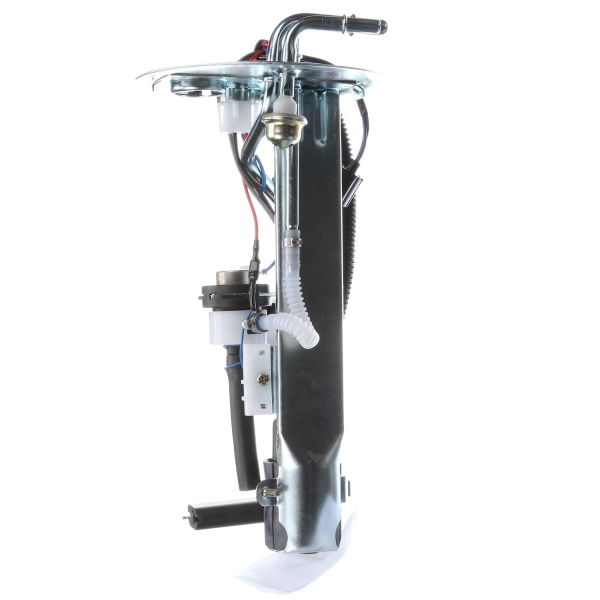

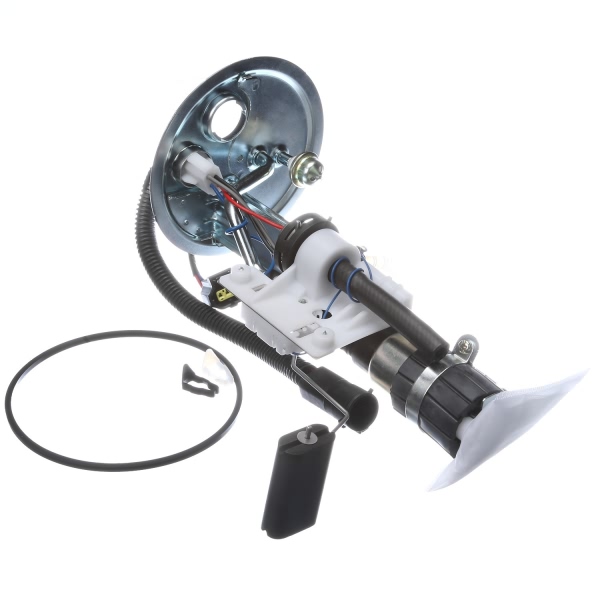

Part Description | Fuel Pump And Sender Assembly |
Current Draw | 6 |
Flow Rating | 28 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 94.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Location | In Tank |
Pump Type | Electric |
Resistance Ohms Empty | 15.0 |
Resistance Ohms Full | 160.0 |
Strainer Included | Yes |
System Pressure | 65 psi |

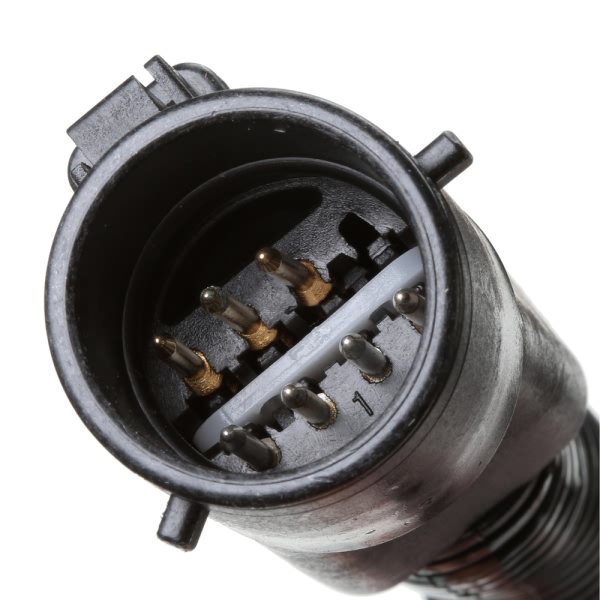

Terminal Gender | Male |
Terminal Quantity | 7 |
Terminal Type | Pin |
UPC | 689604233856 |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2000 Ford Ranger | All Trims | 6 Cyl 3.0L |
2000 Ford Ranger | All Trims | 6 Cyl 4.0L |
2000-2001 Ford Ranger | All Trims | 4 Cyl 2.5L |
