Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HP10207 |

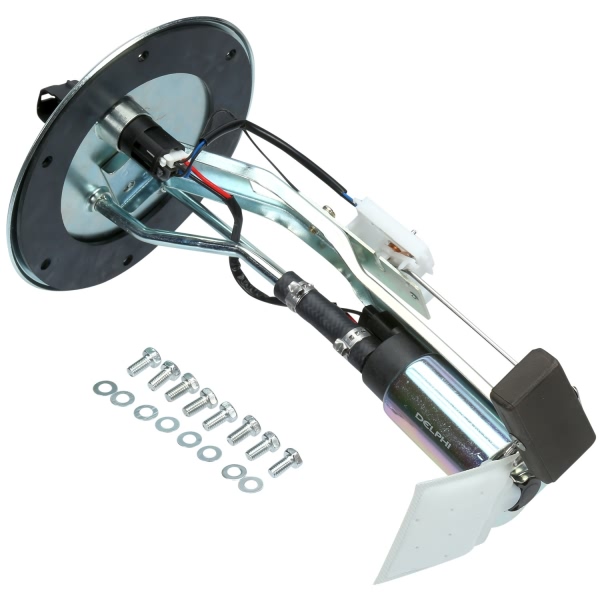

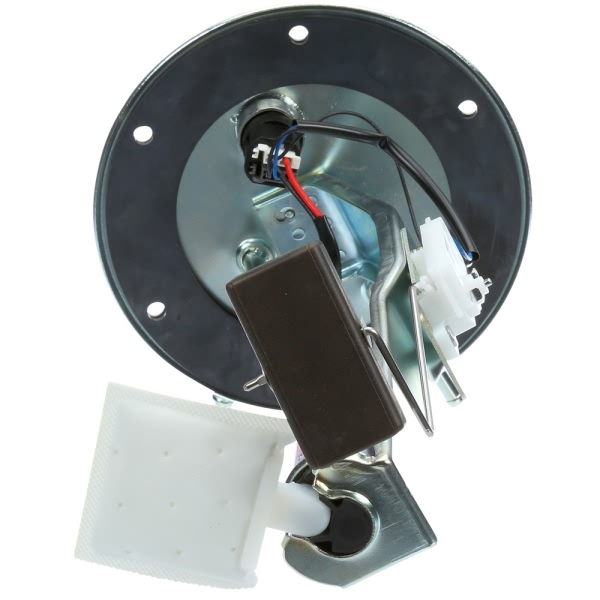

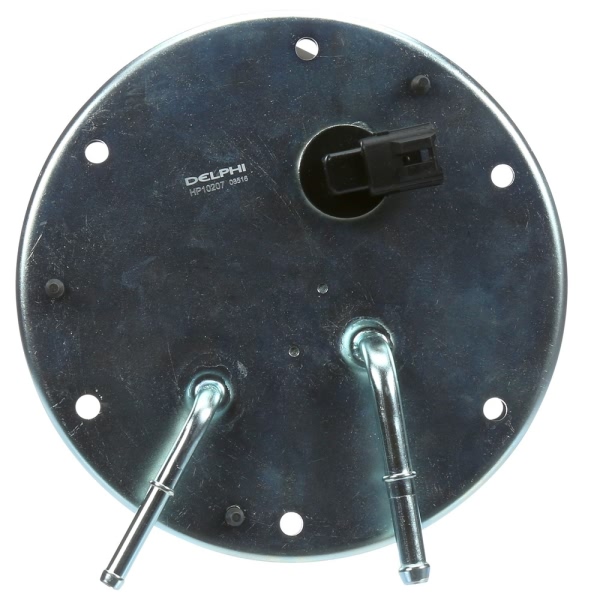

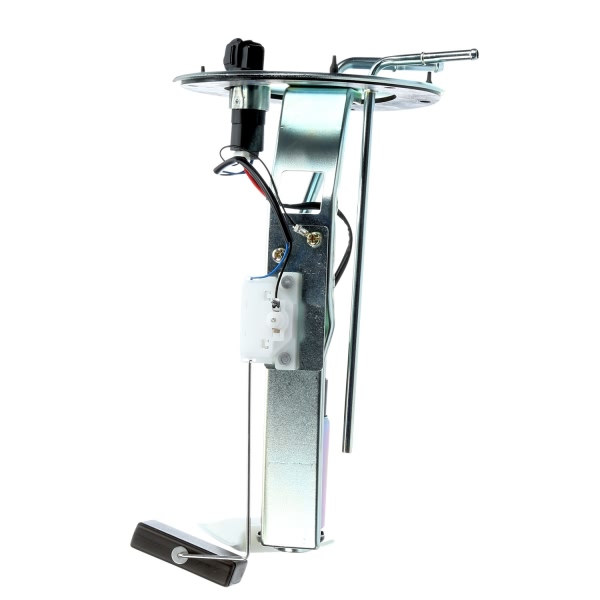

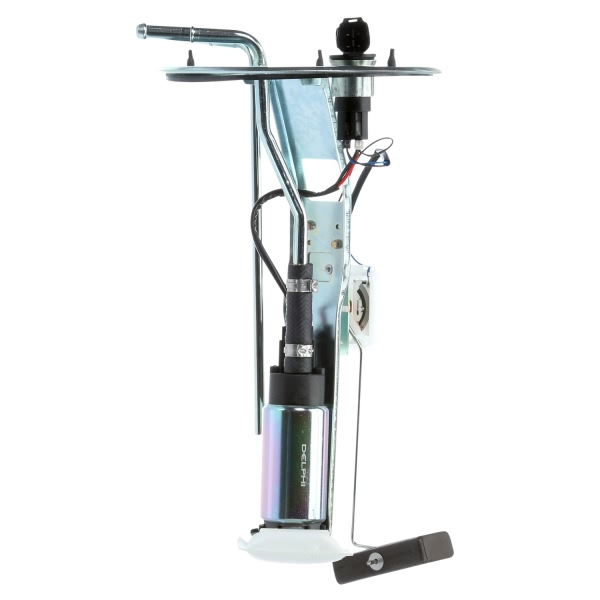

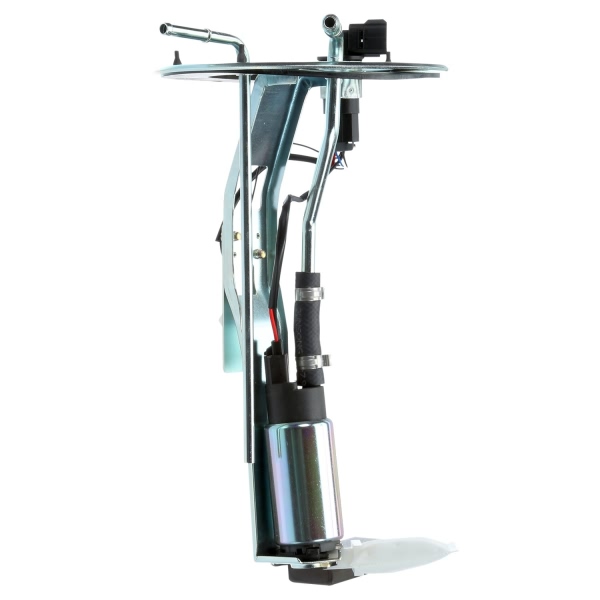

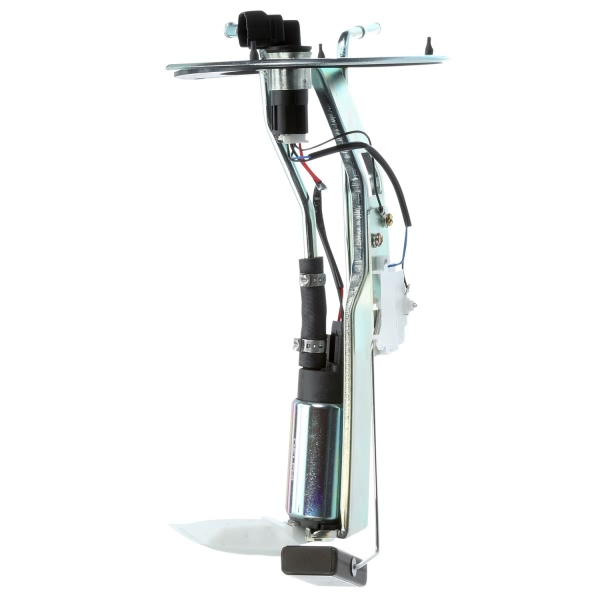

Part Description | Fuel Pump And Sender Assembly |
Current Draw | 5 |
Flow Rating | 21 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 94.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 2 |
Outlet Type | Hose |
Pump Location | In Tank |
Pump Type | Electric |
Resistance Ohms Empty | 120.0 |
Resistance Ohms Full | 10.0 |
Strainer Included | Yes |
System Pressure | 36 psi |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604233634 |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2001 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L |
2002-2003 Suzuki XL-7 | All Trims | 6 Cyl 2.7L |
