Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HP10201 |

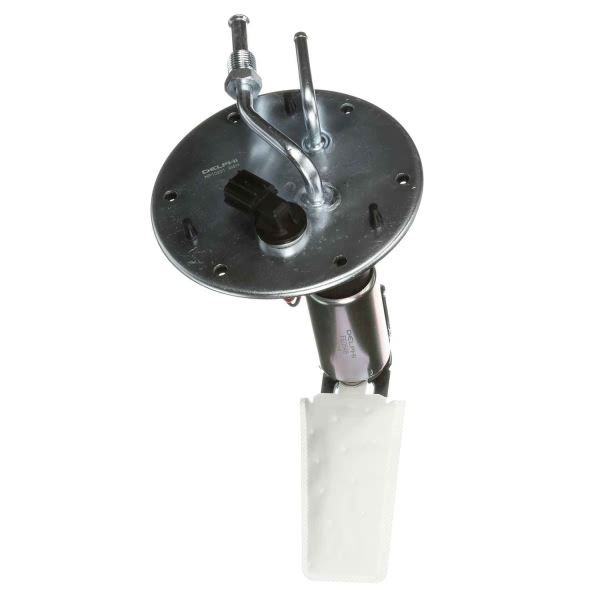

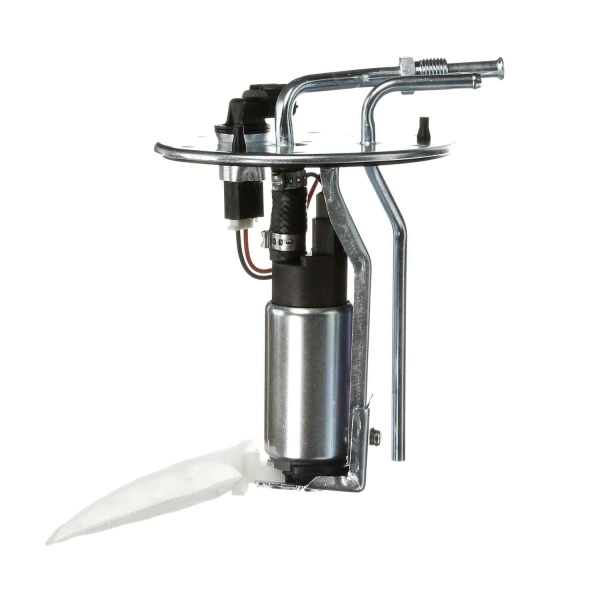

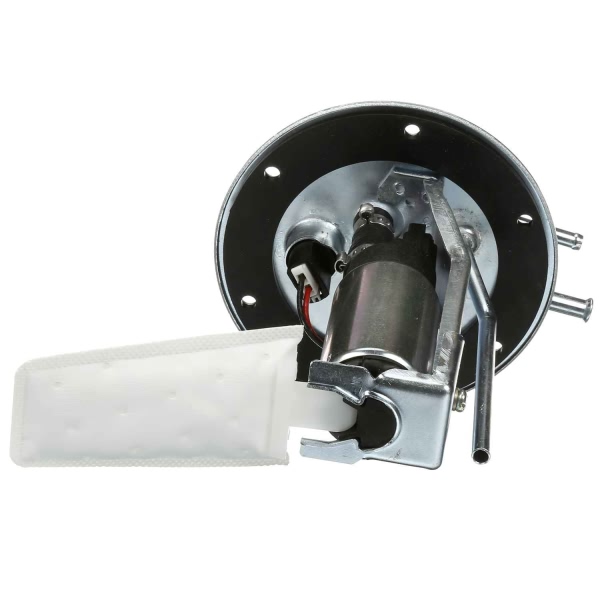

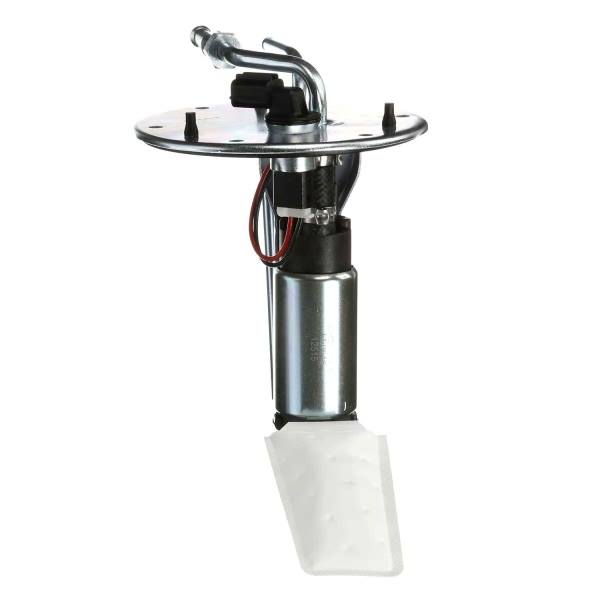

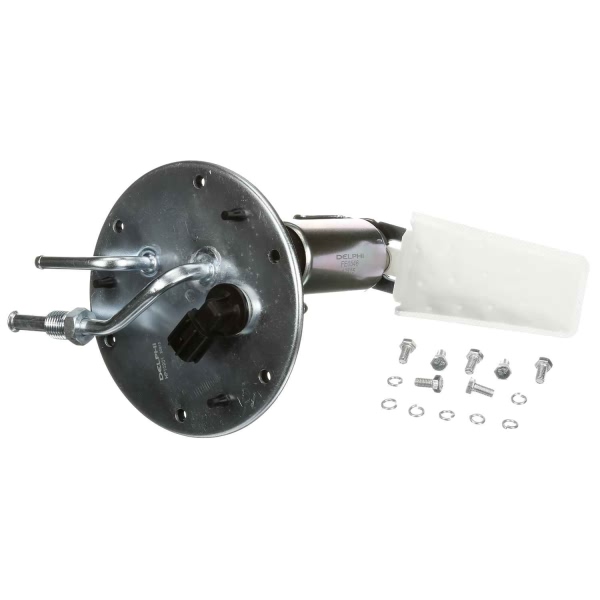

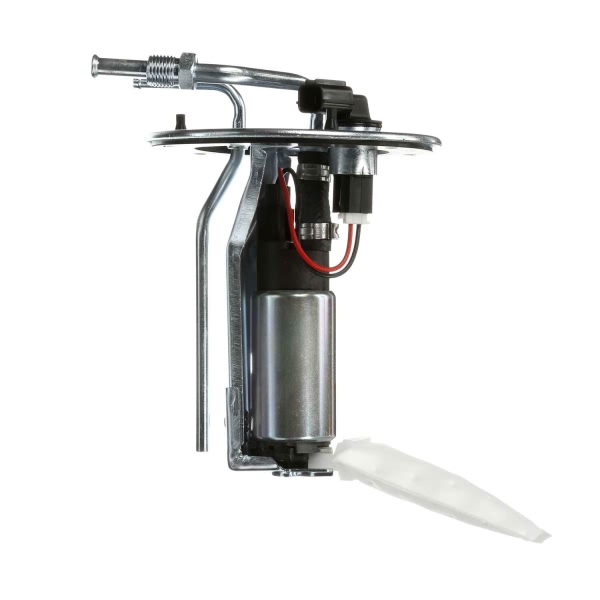

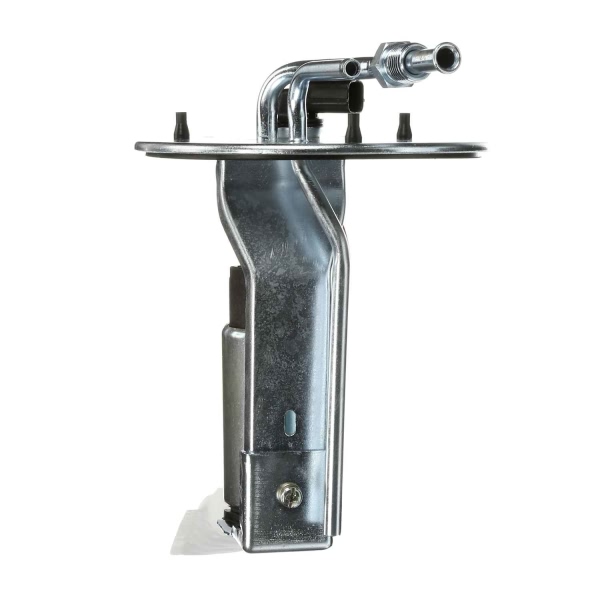

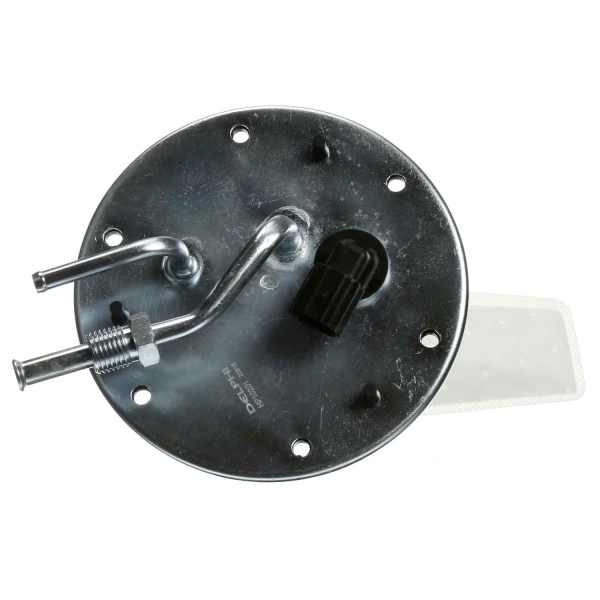

Part Description | Fuel Pump And Sender Assembly |
Current Draw | 5 |
Flow Rating | 33 gph |
Fuel Level Sender Assembly Included | No |
Fuel Type | Gas |
Gasket or Seal Included | No |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 87.0 PSI |
Outlet Fitting Thread Size | M14 - 1.5 |
Outlet Quantity | 2 |
Outlet Type | Threaded |
Pump Location | In Tank |
Pump Type | Electric |
Strainer Included | Yes |
System Pressure | 44 psi |

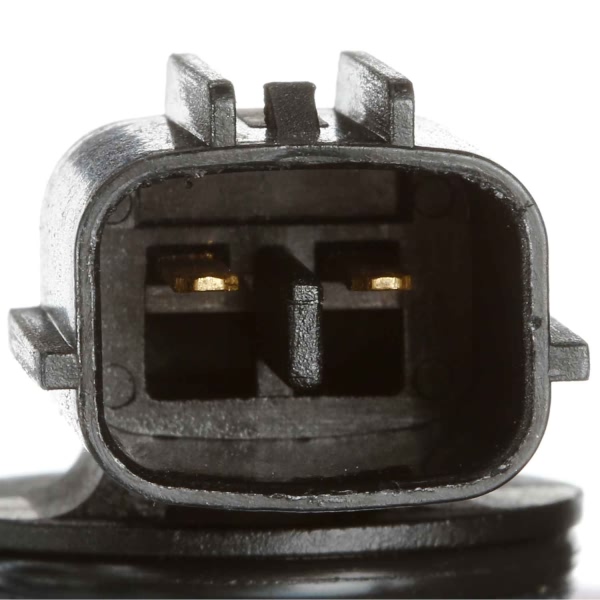

Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Pin |
UPC | 689604233573 |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1995-1999 Chrysler Sebring | All Trims | 4 Cyl 2.0L |
1995-2000 Chrysler Sebring | All Trims | 6 Cyl 2.5L |
1995-1999 Dodge Avenger | All Trims | 4 Cyl 2.0L |
1995-2000 Dodge Avenger | All Trims | 6 Cyl 2.5L |
1995-1998 Eagle Talon | All Trims | 4 Cyl 2.0L |
1995-1999 Mitsubishi Eclipse | All Trims | 4 Cyl 2.0L |
1996 Mitsubishi Eclipse | All Trims | 4 Cyl 2.4L |
1994-1998 Mitsubishi Galant | All Trims | 4 Cyl 2.4L |
