Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HP10183 |

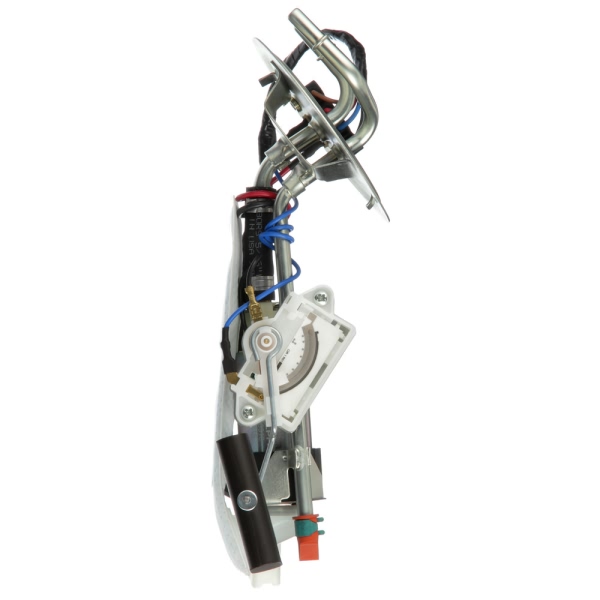

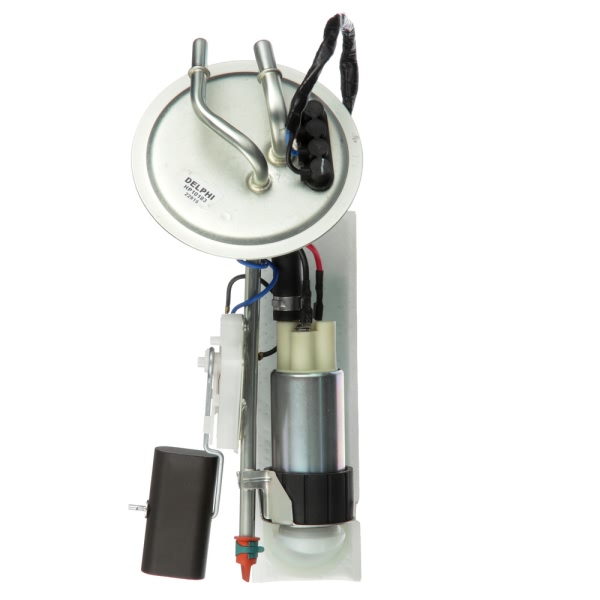

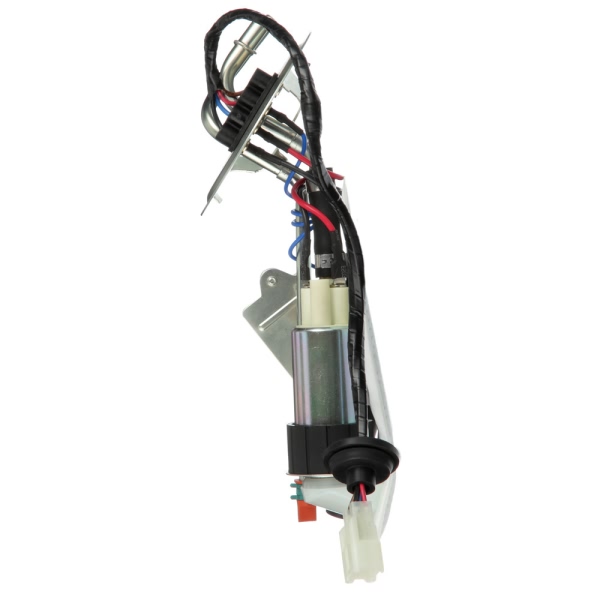

Part Description | Fuel Pump And Sender Assembly |
Current Draw | 6 |
Flow Rating | 41 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 73.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Location | In Tank |
Pump Type | Electric |
Resistance Ohms Empty | 16.0 |
Resistance Ohms Full | 160.0 |
Strainer Included | Yes |
System Pressure | 36 psi |
Terminal Gender | Male |
Terminal Quantity | 6 |
Terminal Type | Pin |
UPC | 689604233399 |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1991-1996 Ford Escort | All Trims | 4 Cyl 1.8L |
1991-1996 Ford Escort | All Trims | 4 Cyl 1.9L |
1991-1996 Mercury Tracer | All Trims | 4 Cyl 1.8L |
1991-1996 Mercury Tracer | All Trims | 4 Cyl 1.9L |
