Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HP10089 |

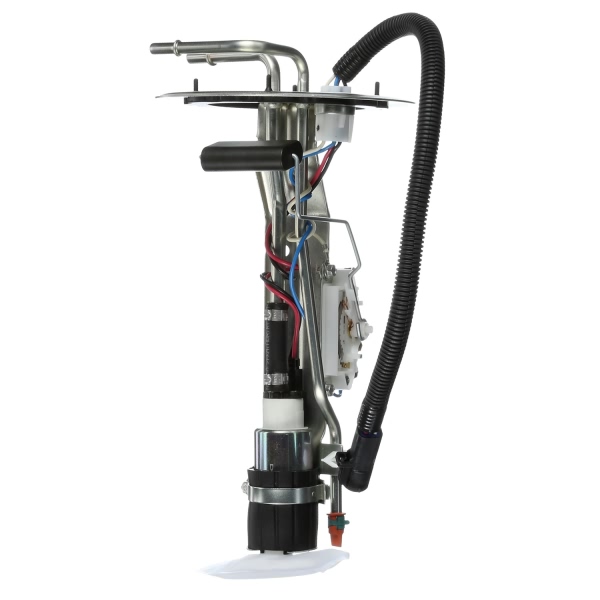

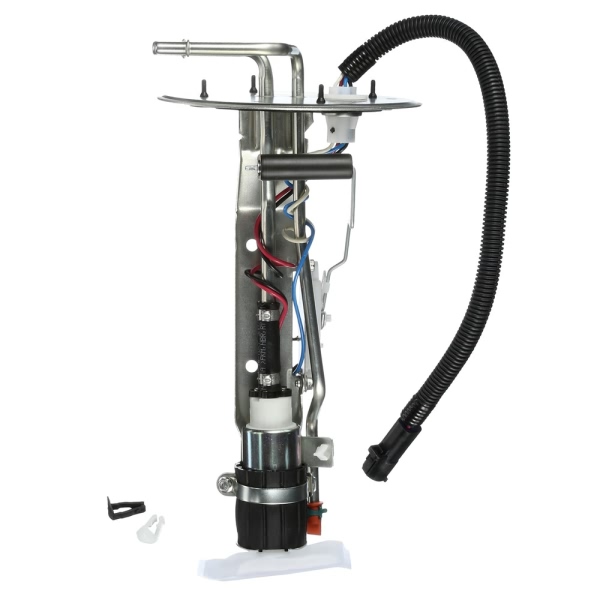

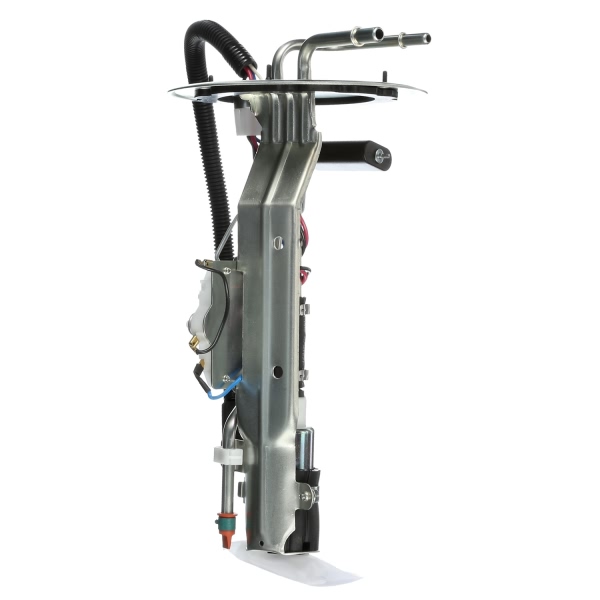

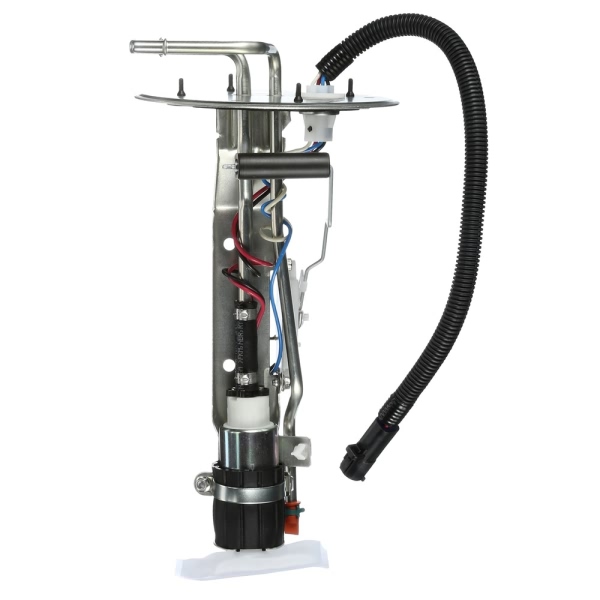

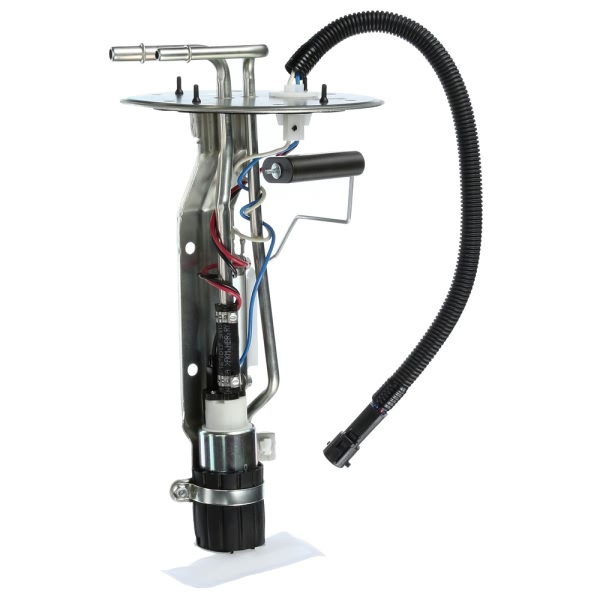

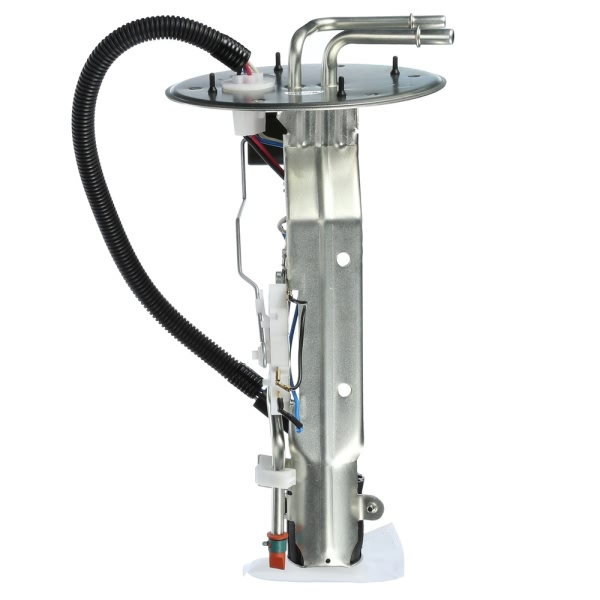

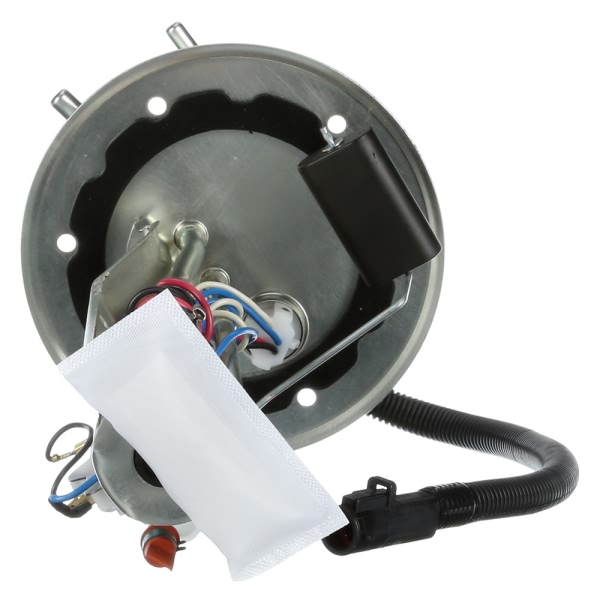

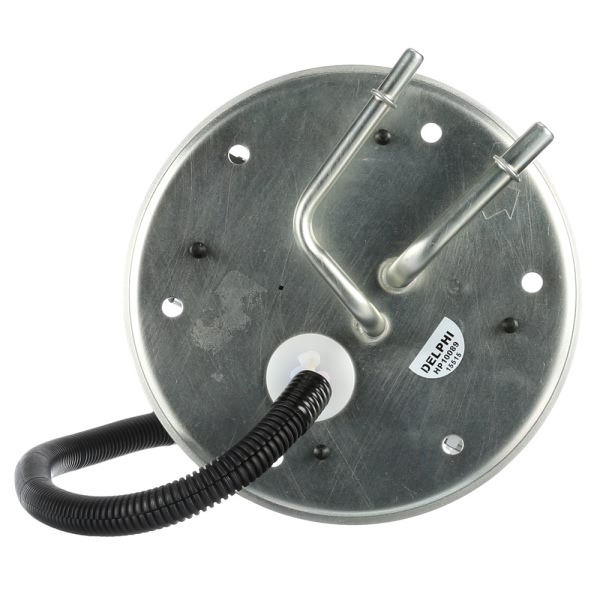

Part Description | Fuel Pump And Sender Assembly |
Current Draw | 6 |
Flow Rating | 29 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 73.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Location | In Tank |
Pump Type | Electric |
Resistance Ohms Empty | 16.0 |
Resistance Ohms Full | 160.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

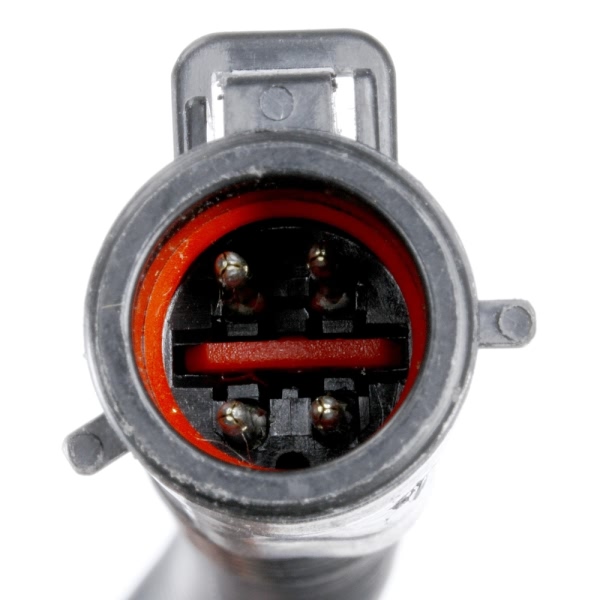

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604194485 |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1997-2003 Ford F-150 | All Trims | 6 Cyl 4.2L |
1997-2003 Ford F-150 | All Trims | 8 Cyl 4.6L |
1998 Ford F-150 | XLT | 6 Cyl 4.2L |
1998 Ford F-150 | XLT | 8 Cyl 4.6L |
1999-2003 Ford F-150 | All Trims | 8 Cyl 5.4L |
2002-2003 Ford F-150 | XL | 6 Cyl 4.2L |
2004 Ford F-150 Heritage | All Trims | 6 Cyl 4.2L |
2004 Ford F-150 Heritage | All Trims | 8 Cyl 4.6L |
2004 Ford F-150 Heritage | All Trims | 8 Cyl 5.4L |
1997-1999 Ford F-250 | All Trims | 8 Cyl 4.6L |
