Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HP10059 |

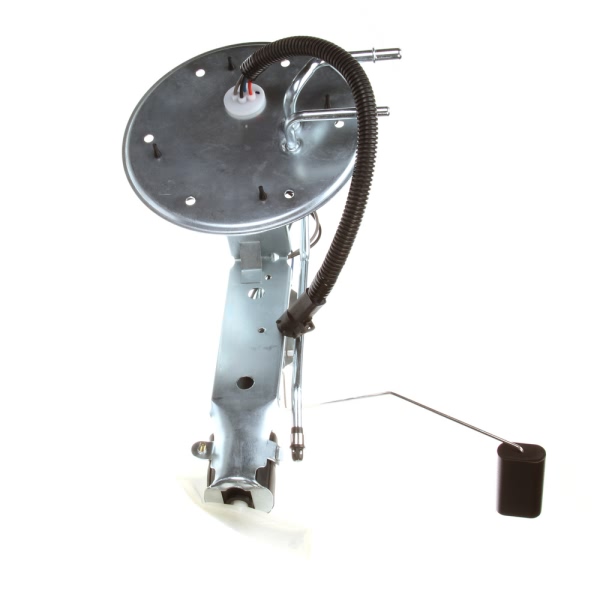

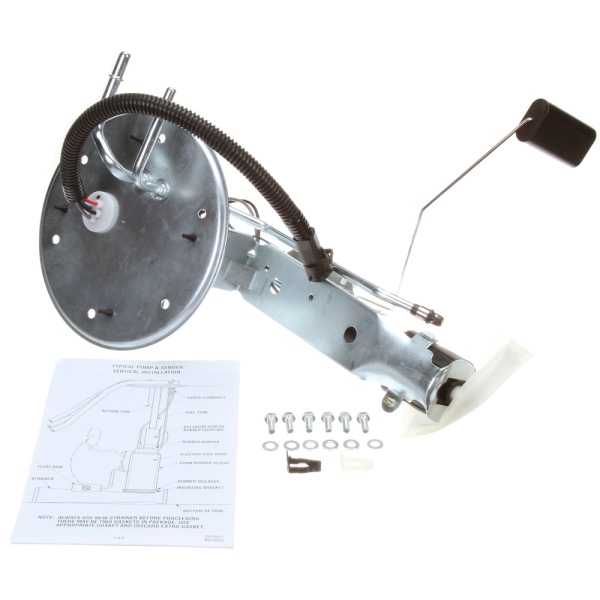

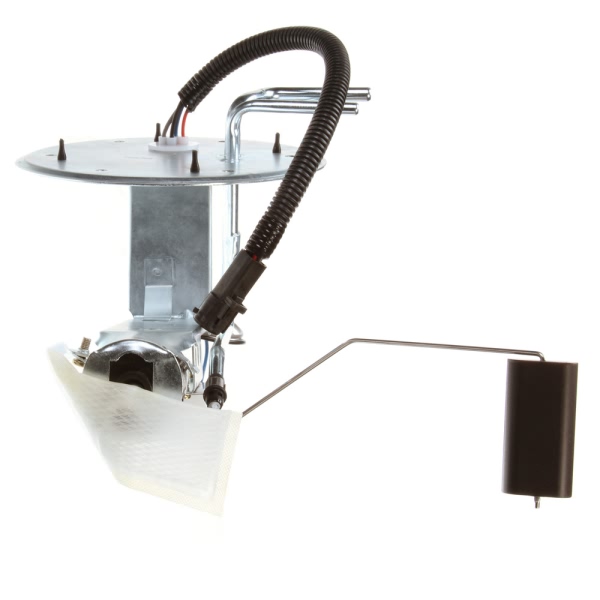

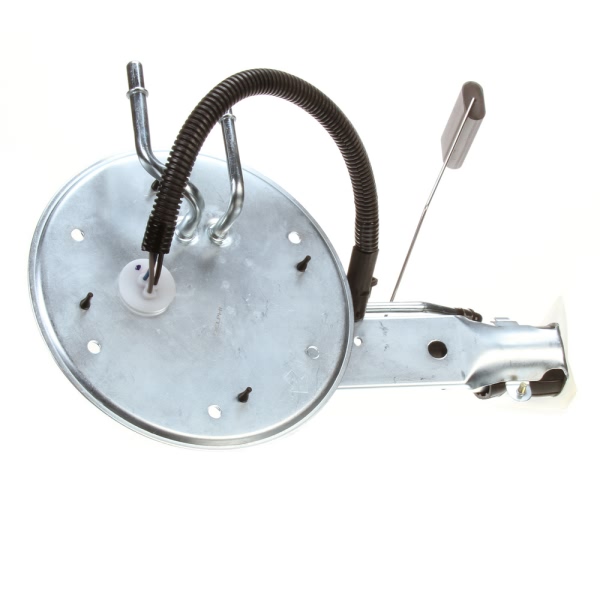

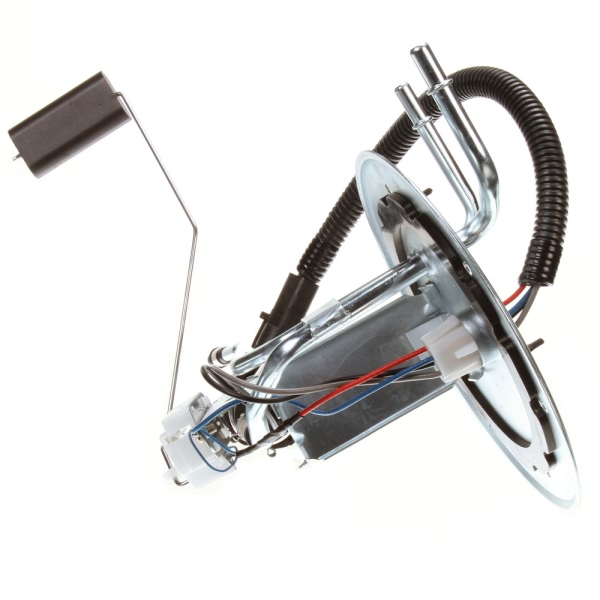

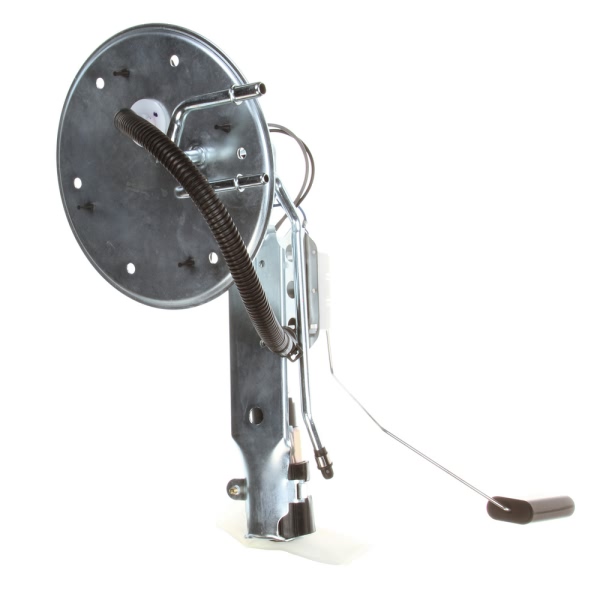

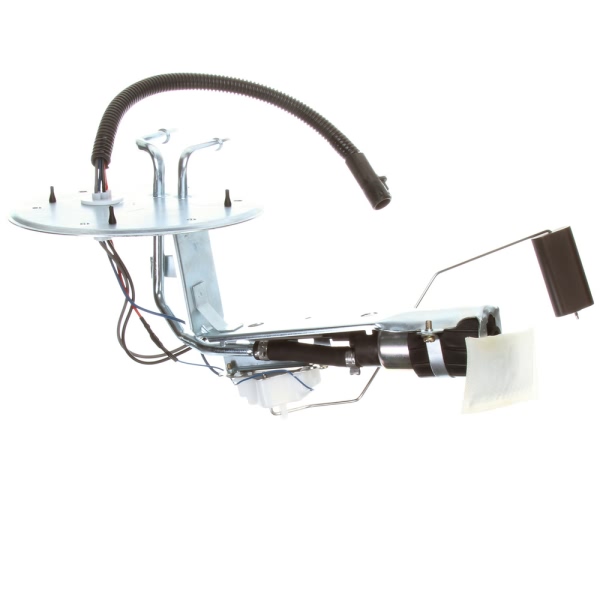

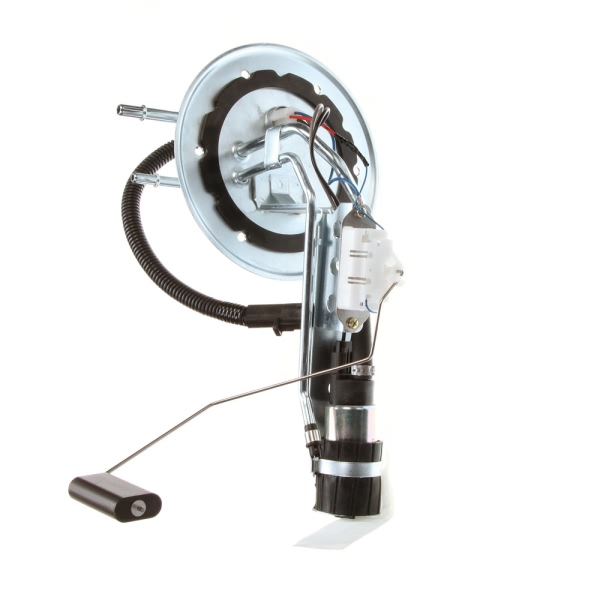

Part Description | Fuel Pump And Sender Assembly |
Current Draw | 6 |
Flow Rating | 22 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 87.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Location | In Tank |
Pump Type | Electric |
Resistance Ohms Empty | 16.0 |
Resistance Ohms Full | 160.0 |
Strainer Included | Yes |
System Pressure | 36 psi |

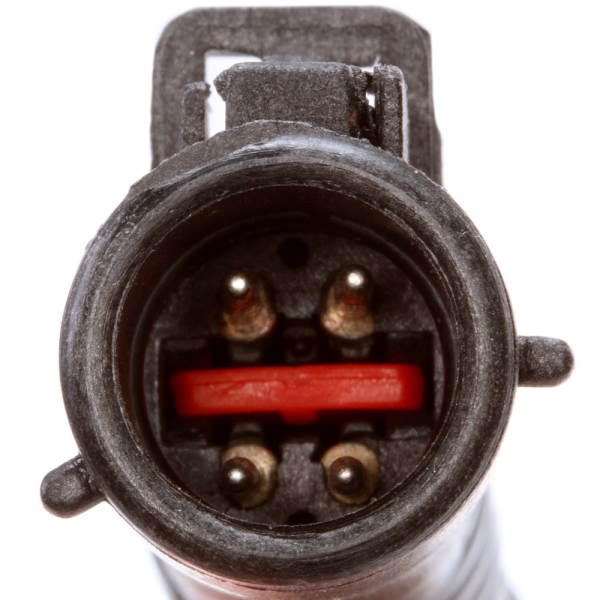

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604197172 |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1995-1996 Ford Crown Victoria | All Trims | 8 Cyl 4.6L |
1995-1996 Ford Grand Marquis | All Trims | 8 Cyl 4.6L |
1995-1996 Lincoln Town Car | All Trims | 8 Cyl 4.6L |
1995-1996 Mercury Grand Marquis | All Trims | 8 Cyl 4.6L |
