Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HP10021 |

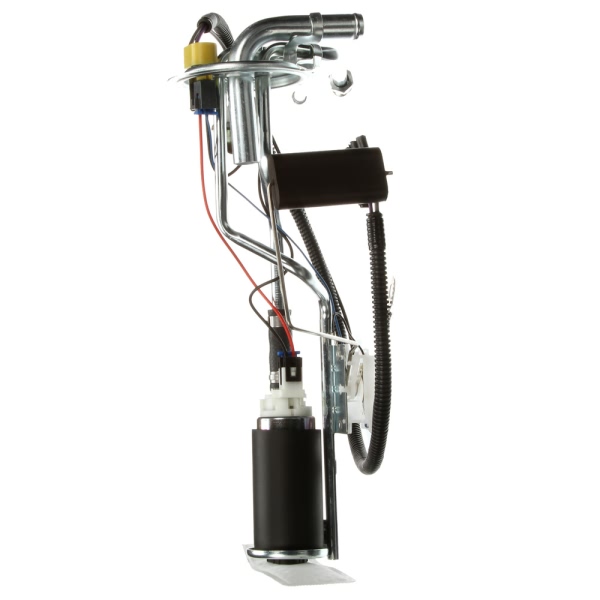

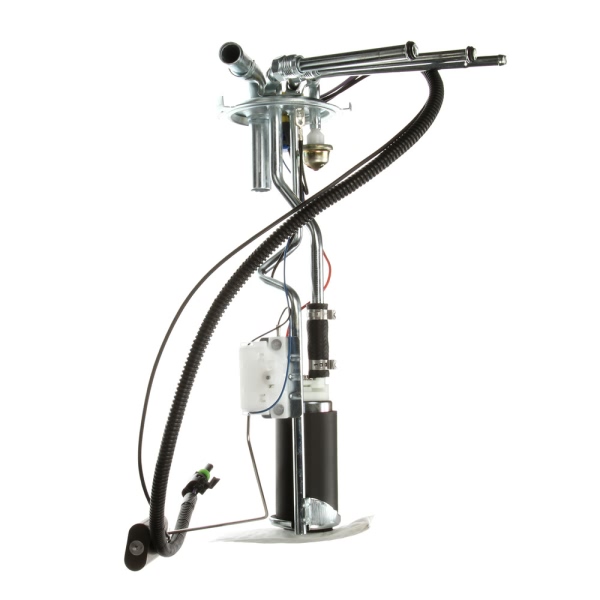

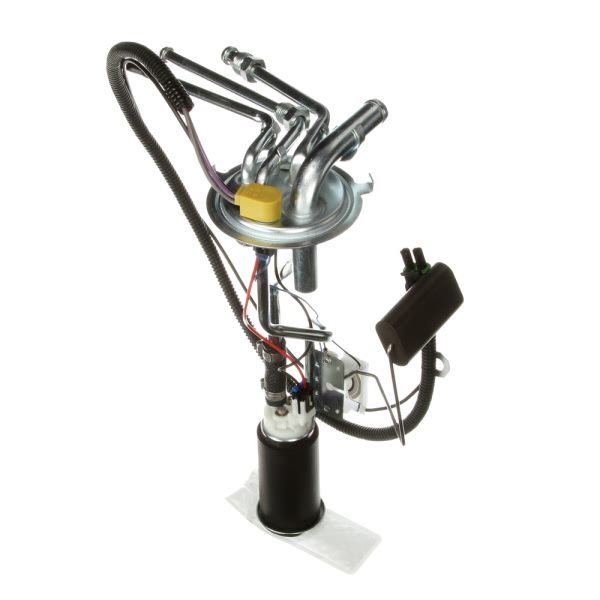

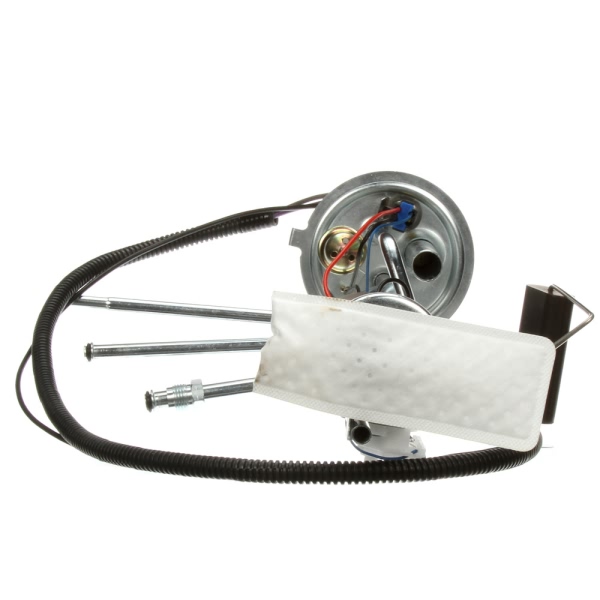

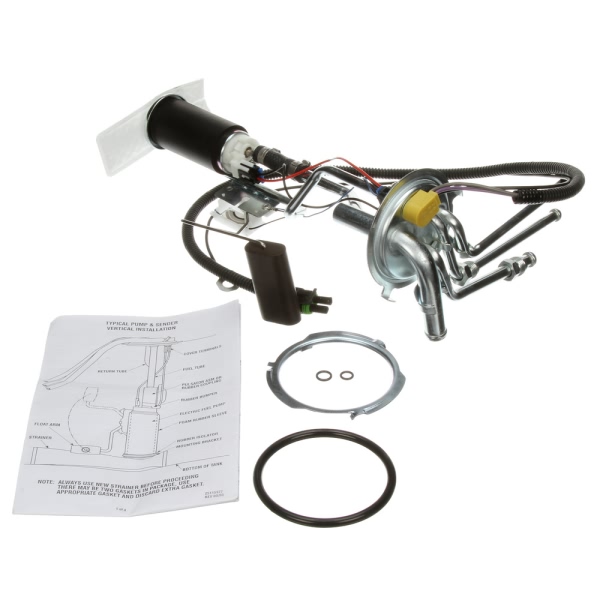

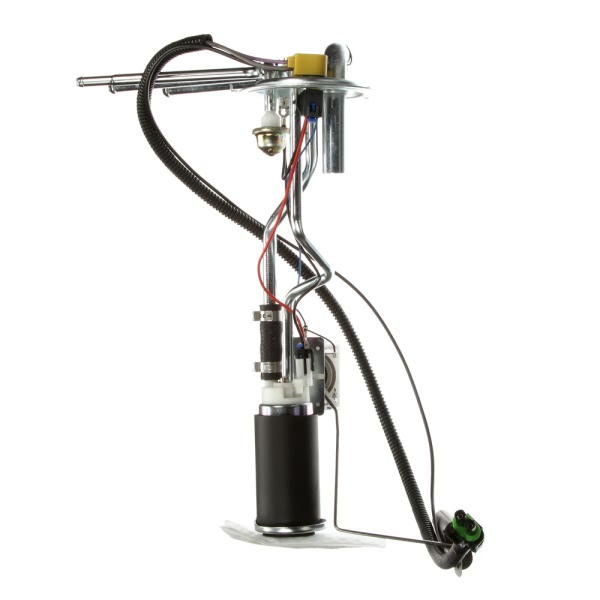

Part Description | Fuel Pump And Sender Assembly |
Current Draw | 4 |
Flow Rating | 26 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 29.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 4 |
Outlet Type | Quick Connect |
Pump Location | In Tank |
Pump Type | Electric |
Resistance Ohms Empty | 1.0 |
Resistance Ohms Full | 90.0 |
Strainer Included | Yes |
System Pressure | 12 psi |
Terminal Gender | Female |
Terminal Quantity | 2 |
Terminal Type | Pin |
UPC | 689604187418 |
Voltage | 13.5 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1987 Chevrolet R10 Suburban | All Trims | 8 Cyl 5.0L |
1988 Chevrolet R10 Suburban | All Trims | 8 Cyl 5.7L |
1989-1991 Chevrolet R1500 Suburban | All Trims | 8 Cyl 5.7L |
1987-1988 Chevrolet R20 Suburban | All Trims | 8 Cyl 5.7L |
1987-1988 Chevrolet R20 Suburban | All Trims | 8 Cyl 7.4L |
1989 Chevrolet R2500 | All Trims | 8 Cyl 7.4L |
1989-1991 Chevrolet R2500 Suburban | All Trims | 8 Cyl 5.7L |
1989-1991 Chevrolet R2500 Suburban | All Trims | 8 Cyl 7.4L |
1987-1988 Chevrolet V10 Suburban | All Trims | 8 Cyl 5.7L |
1989-1991 Chevrolet V1500 Suburban | All Trims | 8 Cyl 5.7L |
