Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HP10017 |

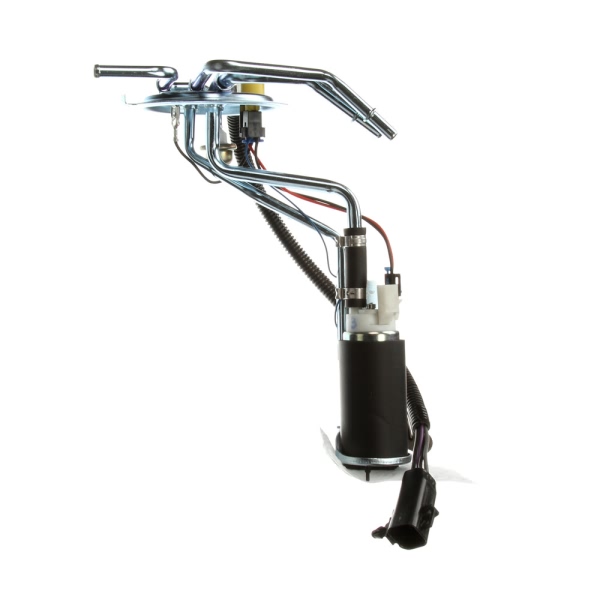

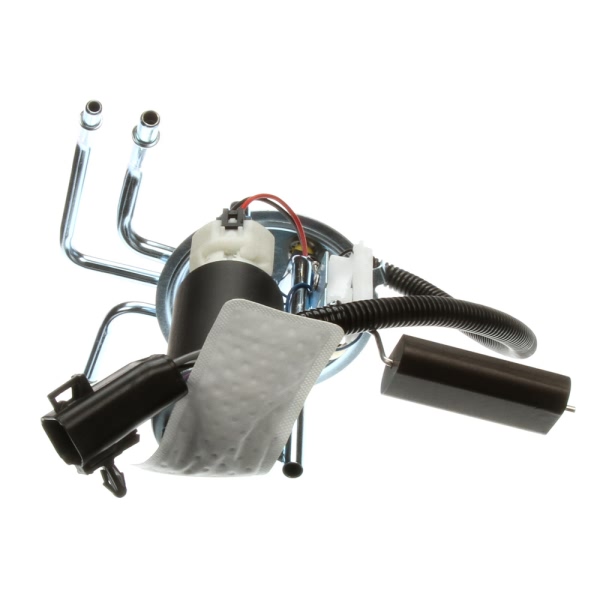

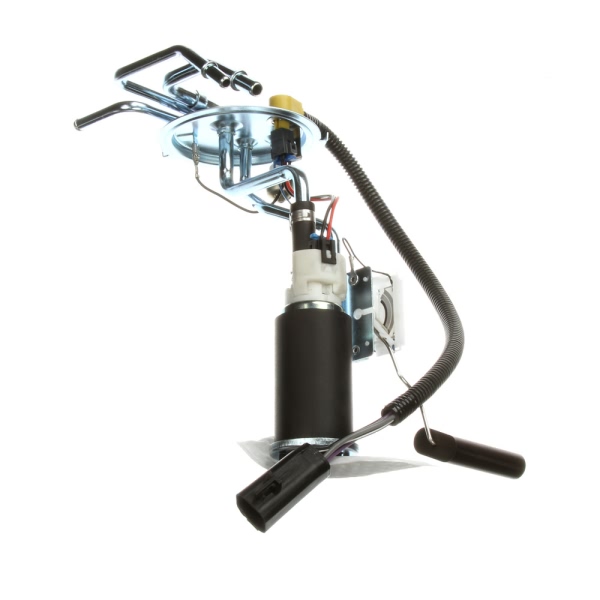

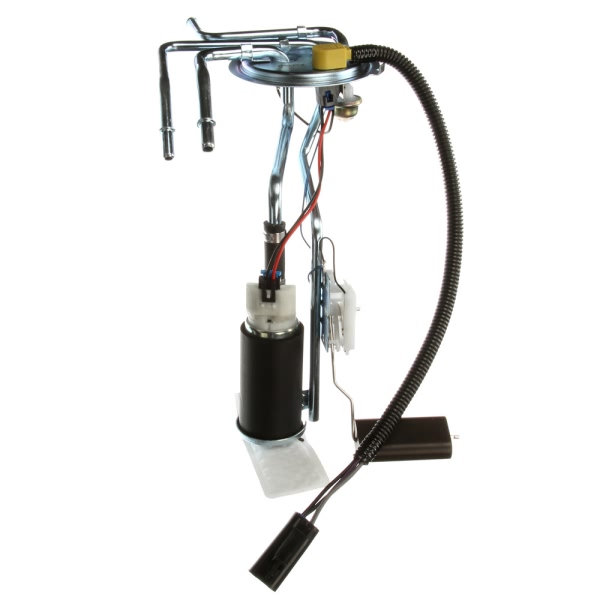

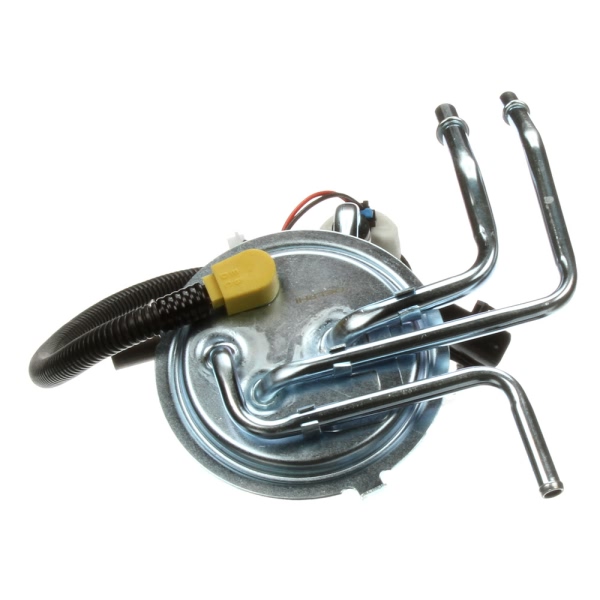

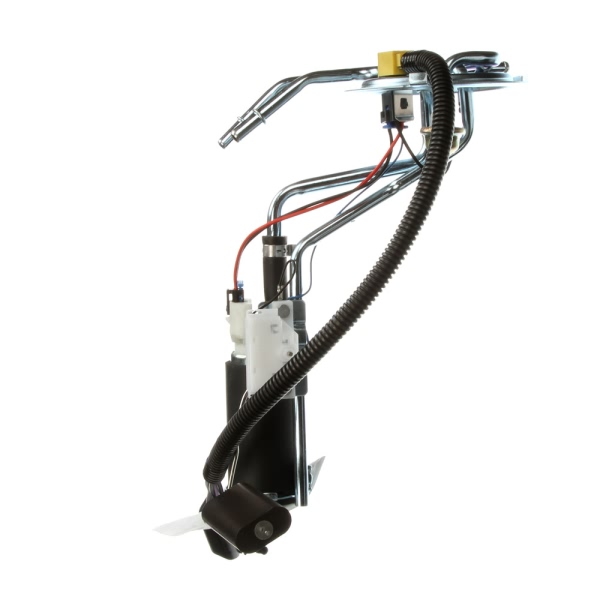

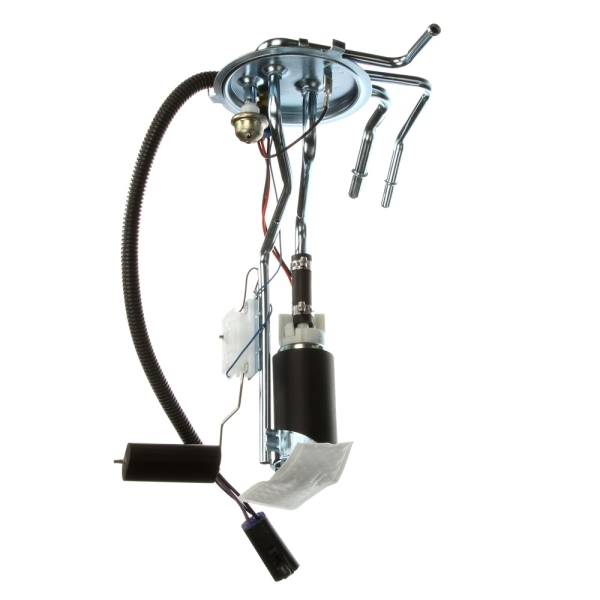

Part Description | Fuel Pump And Sender Assembly |
Current Draw | 4 |
Flow Rating | 26 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |

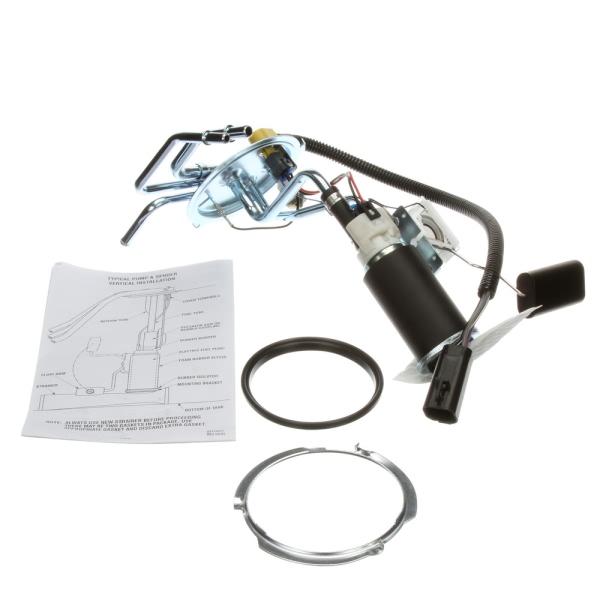

Gasket or Seal Included | Yes |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 73.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Location | In Tank |
Pump Type | Electric |
Resistance Ohms Empty | 1.0 |
Resistance Ohms Full | 90.0 |
Strainer Included | Yes |
System Pressure | 51 psi |

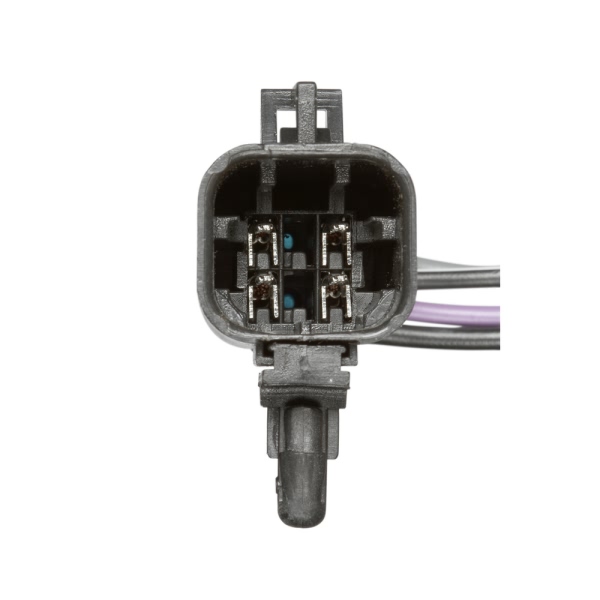

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604187371 |
Voltage | 13.5 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1993-1994 Buick Regal | All Trims | 6 Cyl 3.1L |
1993-1994 Chevrolet Lumina | All Trims | 6 Cyl 3.1L |
1993-1994 Chevrolet Lumina | All Trims | 6 Cyl 3.4L |
1993-1994 Oldsmobile Cutlass Supreme | All Trims | 6 Cyl 3.1L |
1993-1994 Oldsmobile Cutlass Supreme | All Trims | 6 Cyl 3.4L |
1993-1994 Pontiac Grand Prix | All Trims | 6 Cyl 3.1L |
1993-1994 Pontiac Grand Prix | All Trims | 6 Cyl 3.4L |
