Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HP10008 |

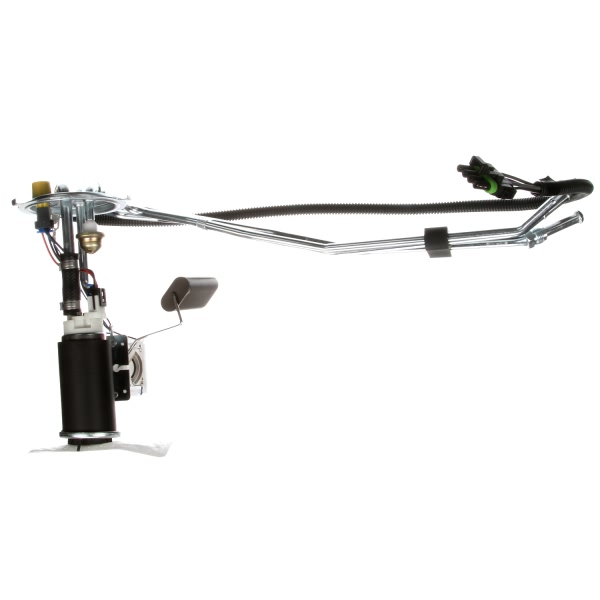

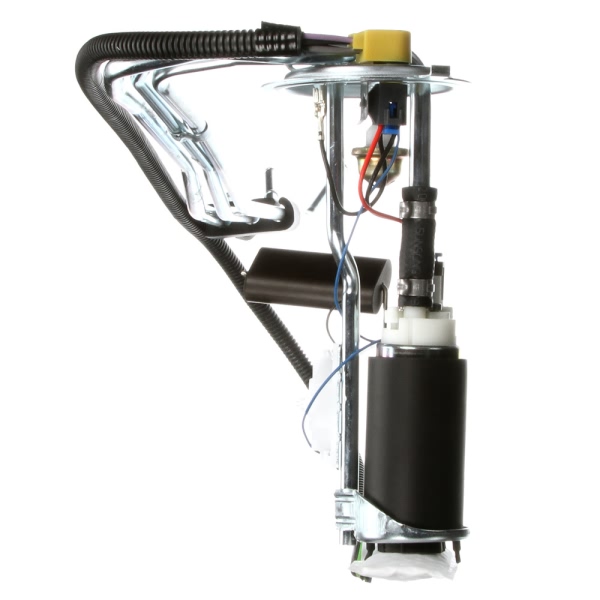

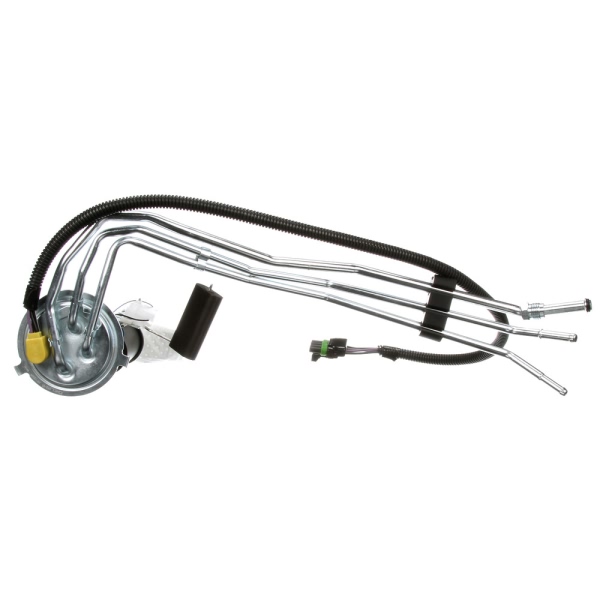

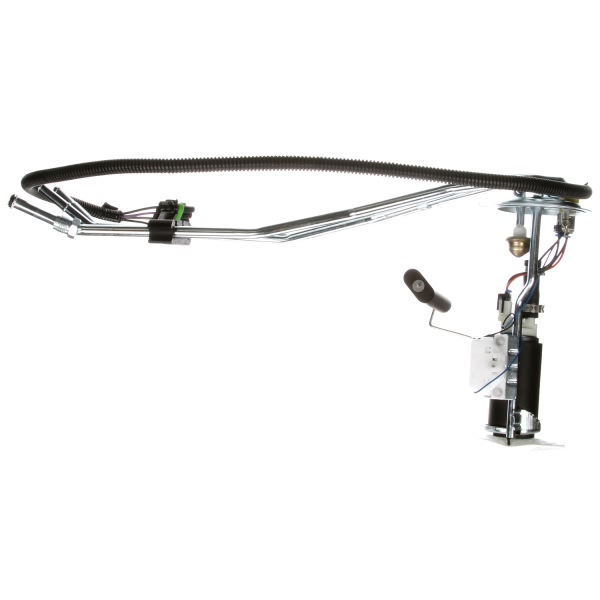

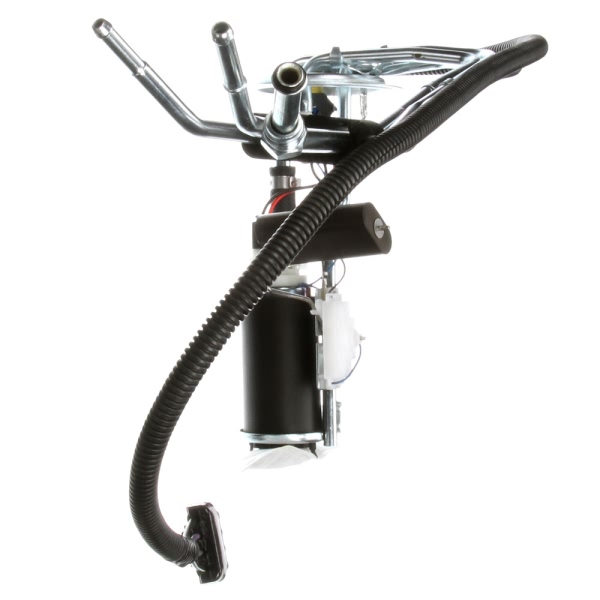

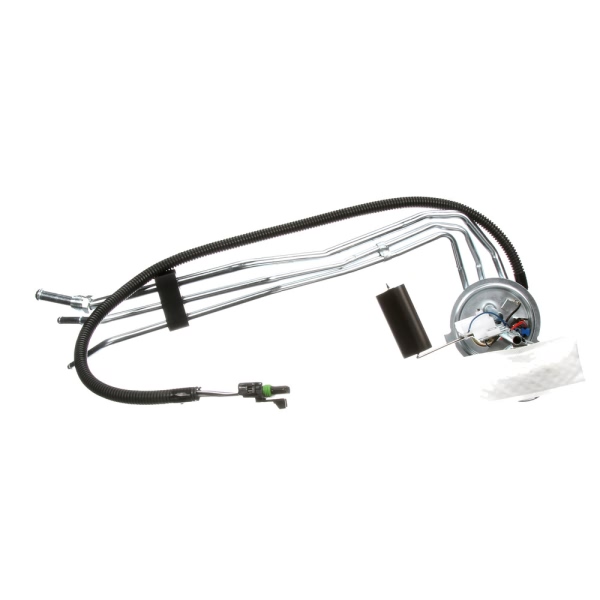

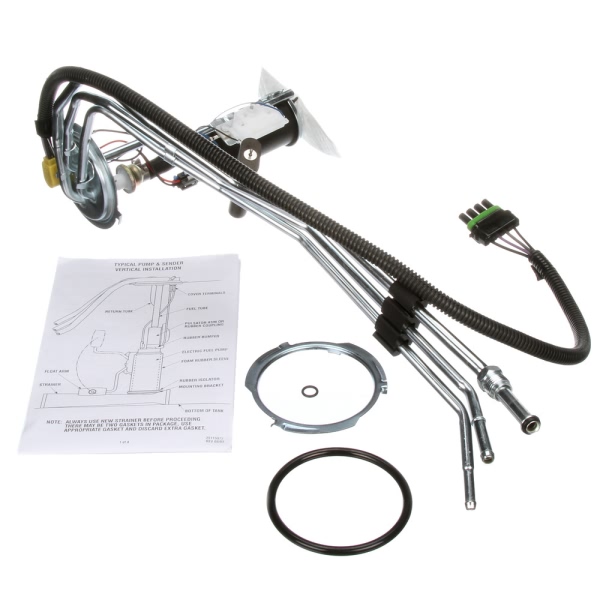

Part Description | Fuel Pump And Sender Assembly |
Current Draw | 4 |
Flow Rating | 26 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 29.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Location | In Tank |
Pump Type | Electric |
Resistance Ohms Empty | 1.0 |
Resistance Ohms Full | 90.0 |
Strainer Included | Yes |
System Pressure | 12 psi |

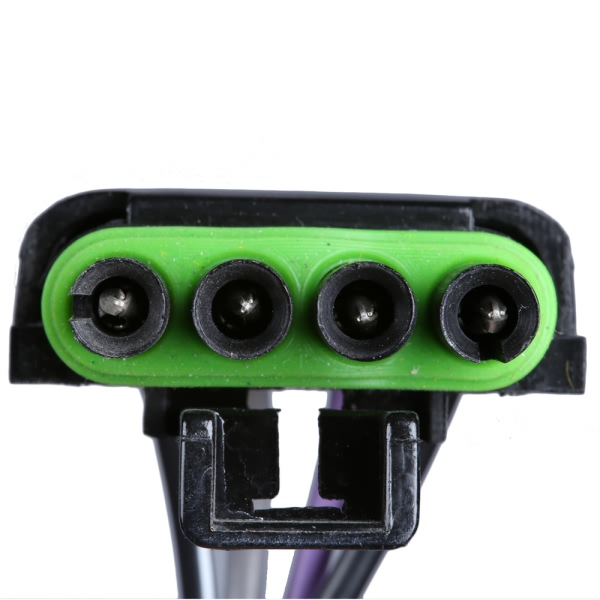

Terminal Gender | Female |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604187296 |
Voltage | 13.5 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1989 Buick Skyhawk | All Trims | 4 Cyl 2.0L |
1988-1991 Buick Skylark | All Trims | 4 Cyl 2.5L |
1988-1989 Chevrolet Cavalier | All Trims | 4 Cyl 2.0L |
1990-1991 Chevrolet Cavalier | All Trims | 4 Cyl 2.2L |
1988-1991 Oldsmobile Cutlass Calais | All Trims | 4 Cyl 2.5L |
1988-1991 Pontiac Grand Am | All Trims | 4 Cyl 2.5L |
1988-1991 Pontiac Sunbird | All Trims | 4 Cyl 2.0L |
