Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | TA3212 |

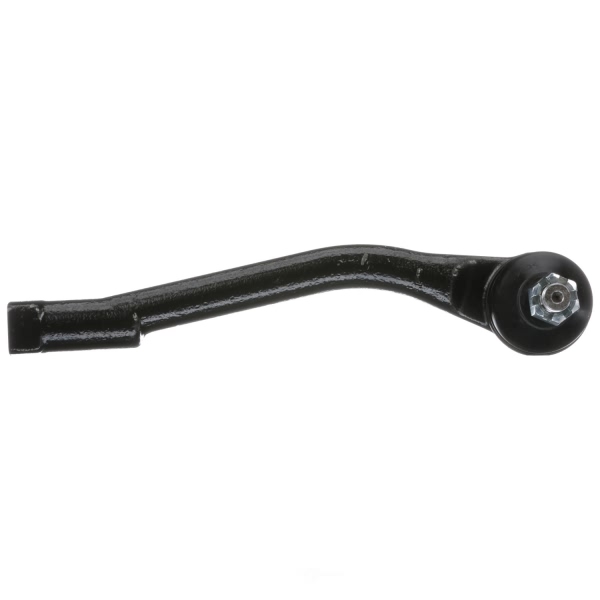

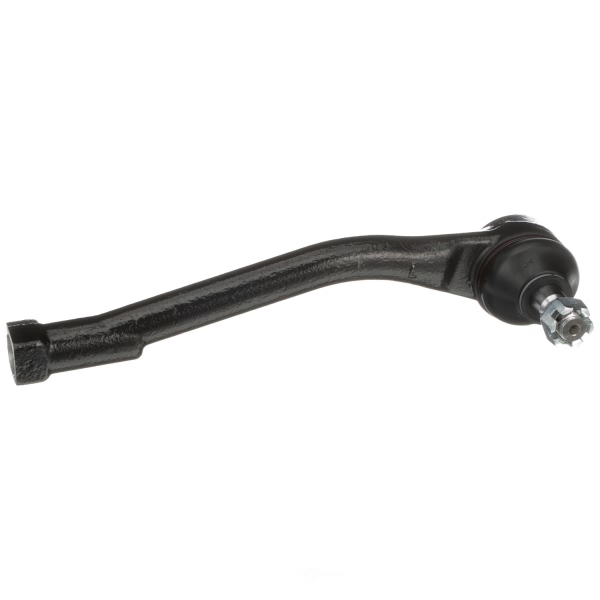

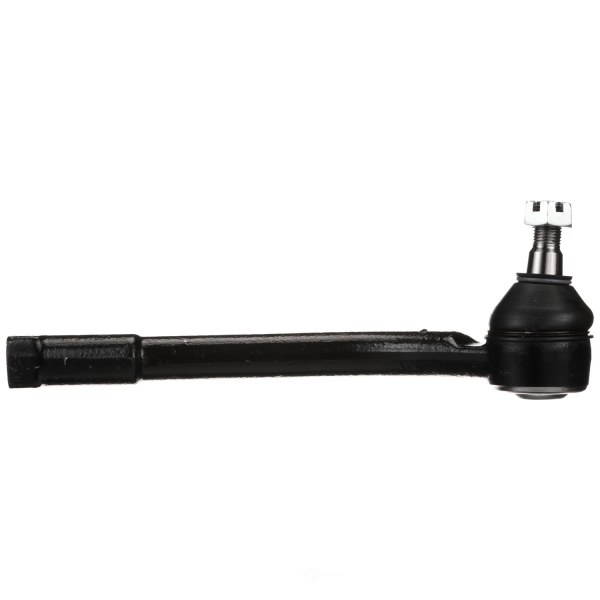

Part Description | Driver Side Outer Steering Tie Rod End |
Adjustable | No |
Bearing Material | Plastic |
Color | Black |
Dust Boot Included | Yes |
Dust Boot Material | CR |
End 1 Gender | Female |
End 1 Thread Diameter | 16.00 |
End 1 Thread Direction | Clockwise |
End 1 Thread Pitch | 1.5 |
End 2 Gender | Male |
End 2 Thread Diameter | 12.00 |
End 2 Thread Direction | Clockwise |
End 2 Thread Pitch | 1.25 |
Finish | Chrome Plating |
Grade | Standard |
Greasable | No |
Grease Fitting Included | No |
Height | 79.00 |
Housing Material | Steel |
Item Grade | Standard Replacement |
Length | 240.00 |
Length Stud Center to End | 219.50 |
Mounting Hardware Included | Yes |
Pre-Greased | No |
Stud Type | Threaded |
Tie Rod Material | Steel |
UPC | 689604304938 |
Weight | 1.675496 |
Width | 41.00 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2010 Hyundai Entourage | All Trims | All Engines |
2006-2012 Kia Sedona | All Trims | All Engines |
2014 Kia Sedona | All Trims | All Engines |
