Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | TA2593 |

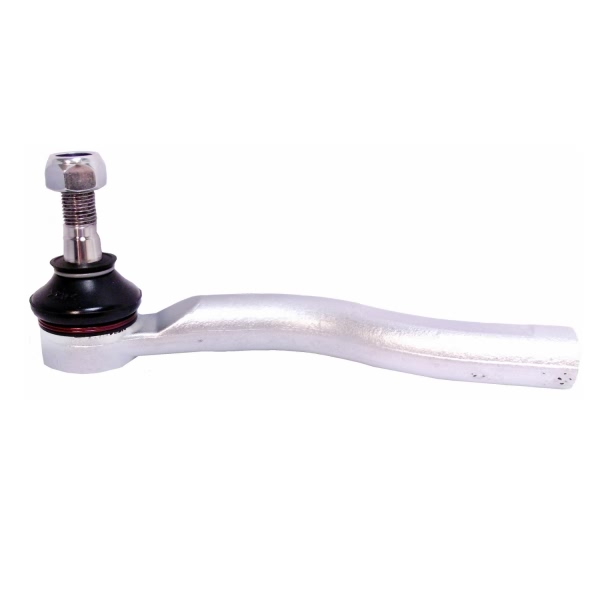

Part Description | Driver Side Outer Steering Tie Rod End |
Adjustable | No |
Bearing Material | POM |
Color | Silver |
Dust Boot Included | Yes |
Dust Boot Material | Chloroprene Rubber |
End 1 Gender | Male |
End 1 Thread Diameter | 12.0 |
End 1 Thread Direction | Clockwise |
End 1 Thread Pitch | 1.25 |
End 2 Gender | Female |
End 2 Thread Diameter | 14.0 |
End 2 Thread Direction | Clockwise |
End 2 Thread Pitch | 1.5 |
End 2 Threads Per Inch | 17 |
Finish | Chrome Plating |
Grade | Premium |
Greasable | No |
Grease Fitting Included | No |
Height | 77.00 |
Housing Material | Steel |
Item Grade | Standard Replacement |
Length | 192.00 |
Length Stud Center to End | 2.47 or 62.8 |
Mounting Hardware Included | Yes |
Pre-Greased | Yes |
Stud Type | Threaded |
Tie Rod Material | Steel |
UPC | 689604271216 |
Weight | 1.52 |
Width | 45.00 |
Year Make Model | Trim | Engine |
---|---|---|
2012-2019 Toyota Prius C | All Trims | All Engines |
2006-2014 Toyota Yaris | All Trims | All Engines |
2015 Toyota Yaris | L | 4 Cyl 1.5L |
2015 Toyota Yaris | LE | 4 Cyl 1.5L |
2015 Toyota Yaris | SE | 4 Cyl 1.5L |
2016-2019 Toyota Yaris | All Trims | All Engines |
