Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0855 |

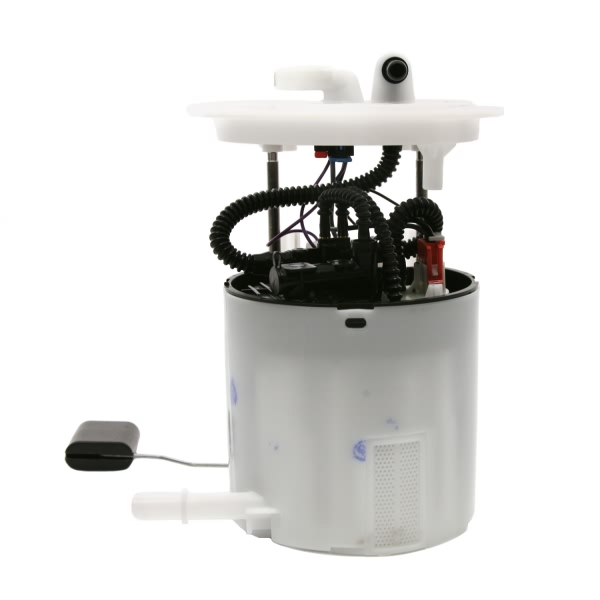

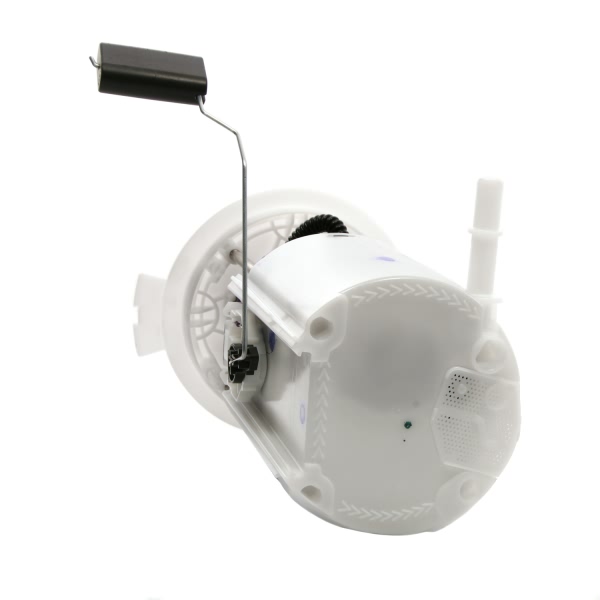

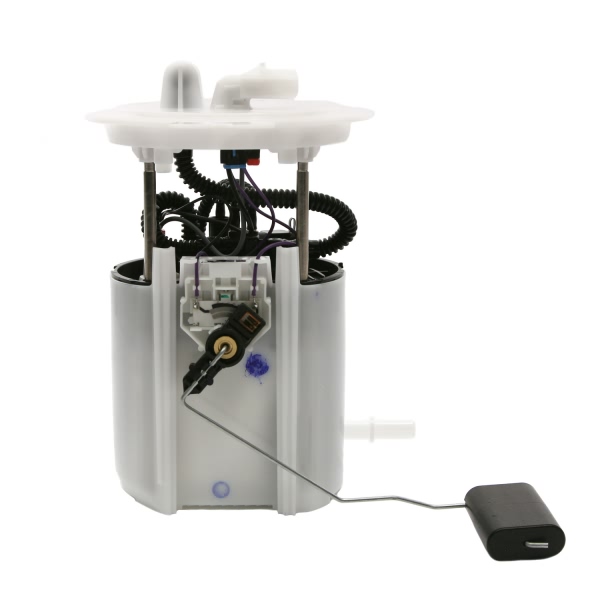

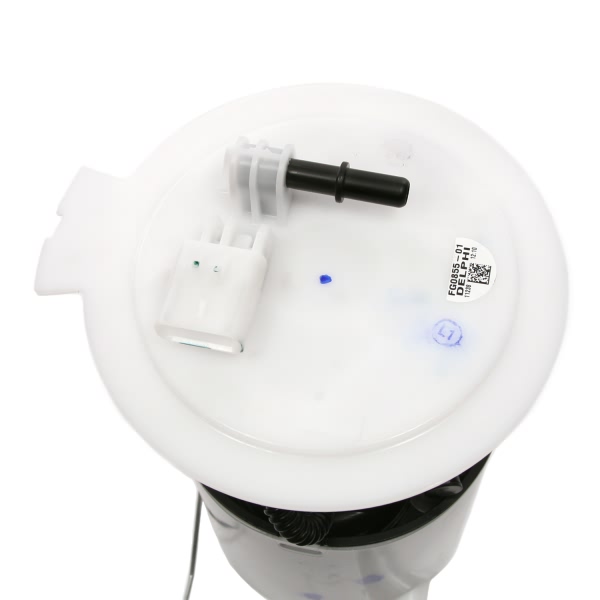

Part Description | Driver Side Fuel Pump Module Assembly |
Current Draw | 15 |
Flow Rating | 38 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |

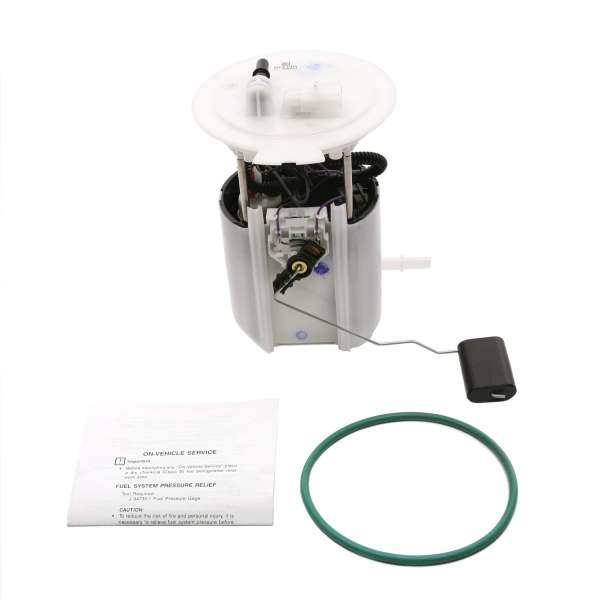

Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 990.0 |
Resistance Ohms Full | 51.0 |
Strainer Included | Yes |
System Pressure | 58 psi |

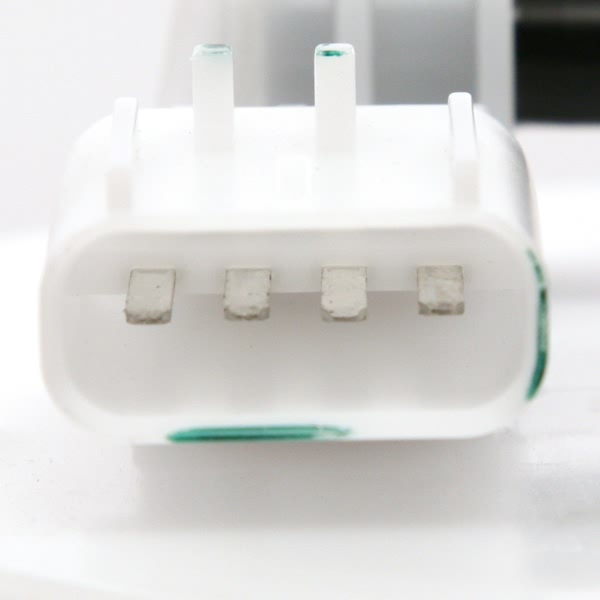

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604202753 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2011-2019 Dodge Durango | All Trims | 8 Cyl 5.7L |
2016-2019 Dodge Durango | All Trims | 6 Cyl 3.6L |
2011-2019 Jeep Grand Cherokee | All Trims | 8 Cyl 5.7L |
2016-2019 Jeep Grand Cherokee | All Trims | 6 Cyl 3.6L |
2017-2019 Jeep Grand Cherokee | All Trims | 6 Cyl 3.0L |
