Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HP10025 |

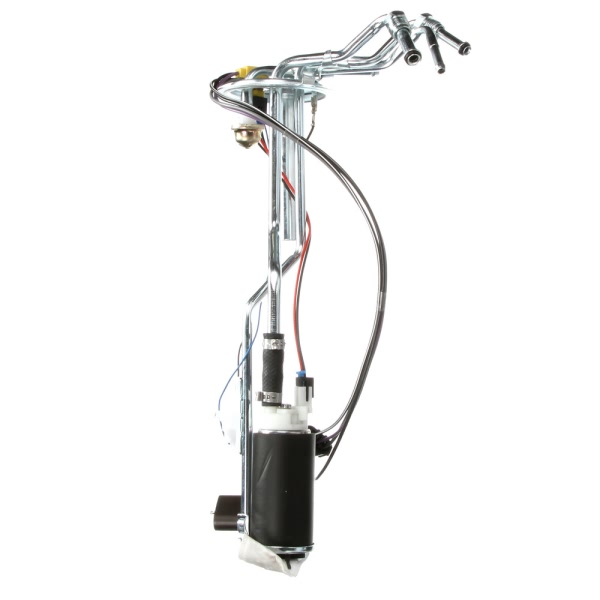

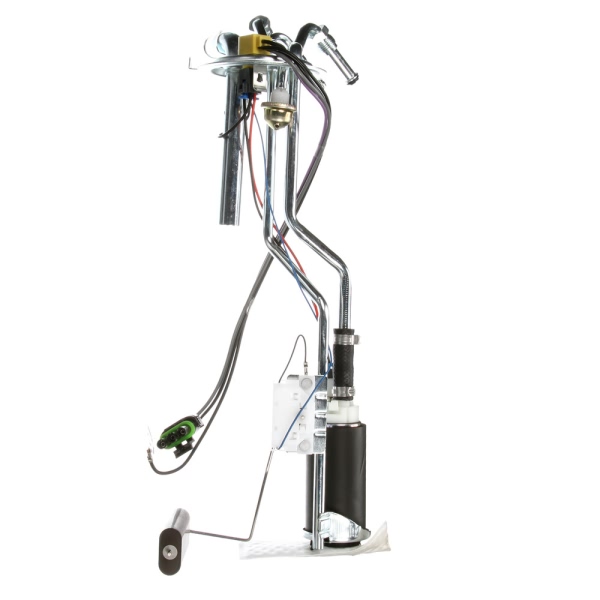

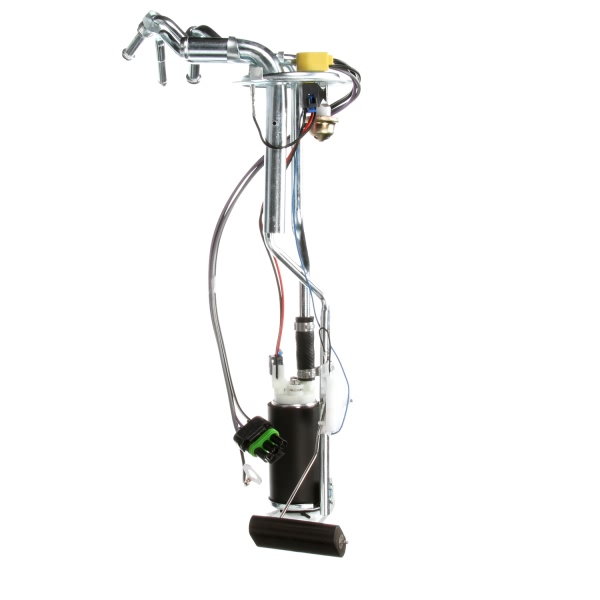

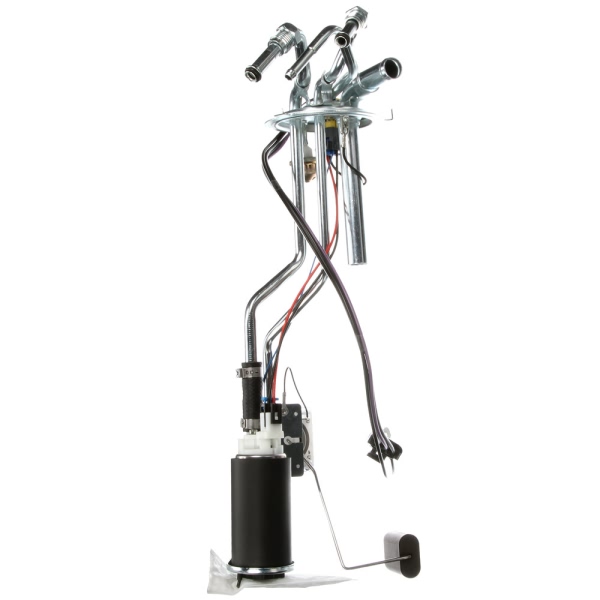

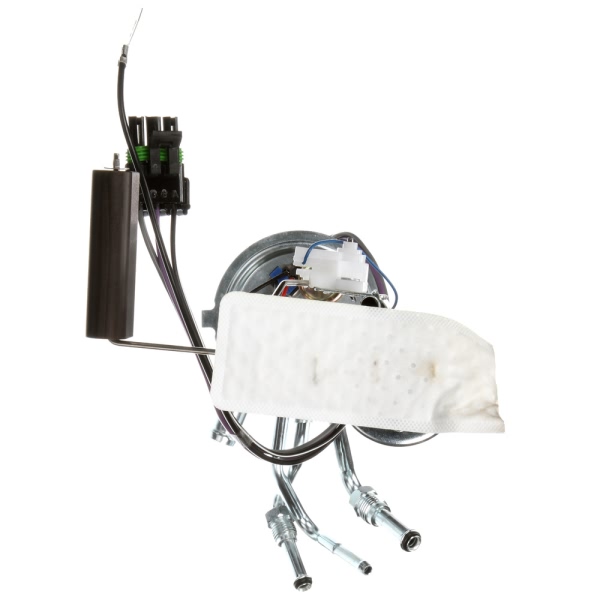

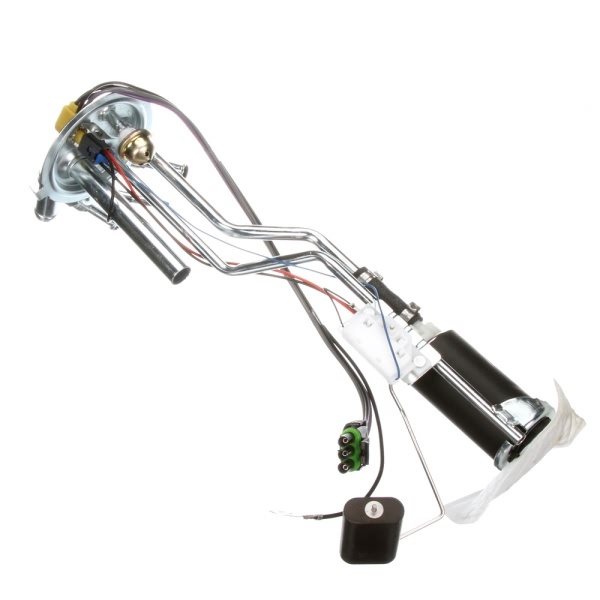

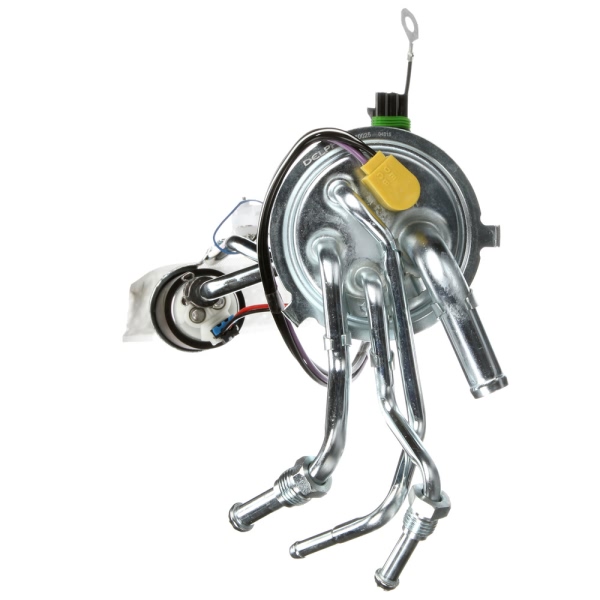

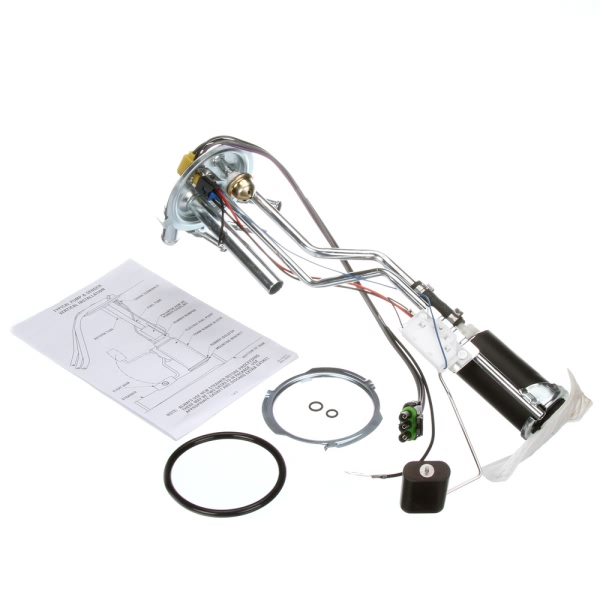

Part Description | Driver Side Fuel Pump And Sender Assembly |
Current Draw | 4 |
Flow Rating | 31 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 73.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 4 |
Outlet Type | Hose |
Pump Location | In Tank |
Pump Type | Electric |
Resistance Ohms Empty | 1.0 |
Resistance Ohms Full | 90.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

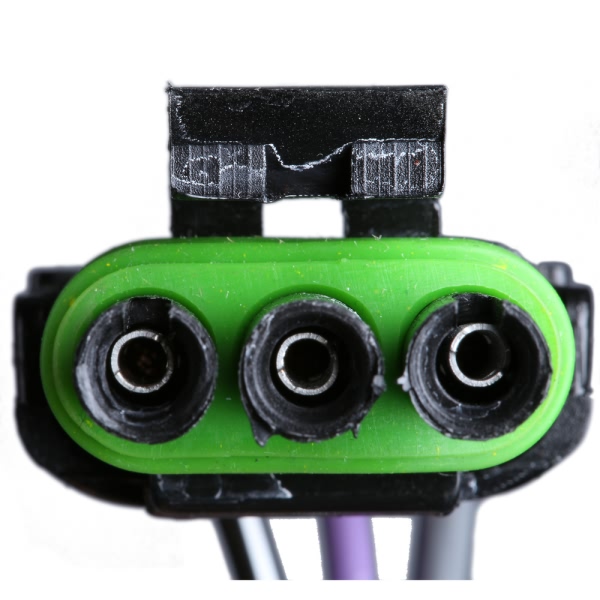

Terminal Gender | Female |
Terminal Quantity | 3 |
Terminal Type | Pin |
UPC | 689604187456 |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1990-1996 Chevrolet C3500 | All Trims | 8 Cyl 5.7L |
1990-1996 Chevrolet C3500 | All Trims | 8 Cyl 7.4L |
1990-1996 Chevrolet K3500 | All Trims | 8 Cyl 5.7L |
1990-1996 Chevrolet K3500 | All Trims | 8 Cyl 7.4L |
1990-1996 GMC C3500 | All Trims | 8 Cyl 5.7L |
1990-1996 GMC C3500 | All Trims | 8 Cyl 7.4L |
1990-1996 GMC K3500 | All Trims | 8 Cyl 5.7L |
1990-1996 GMC K3500 | All Trims | 8 Cyl 7.4L |
