Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HM10085 |

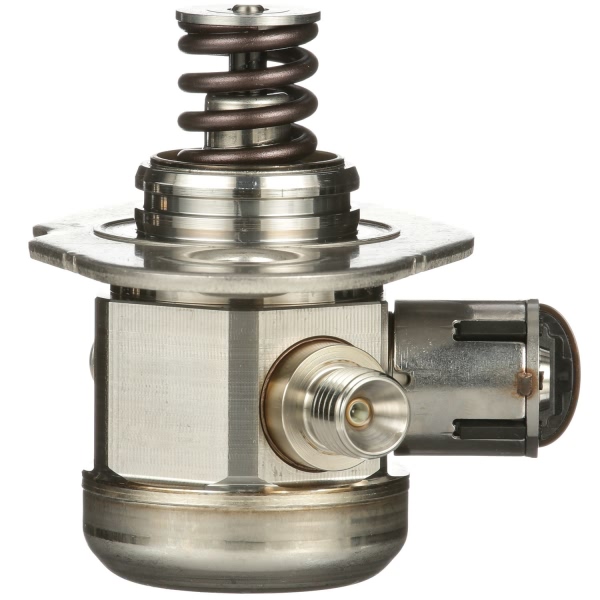

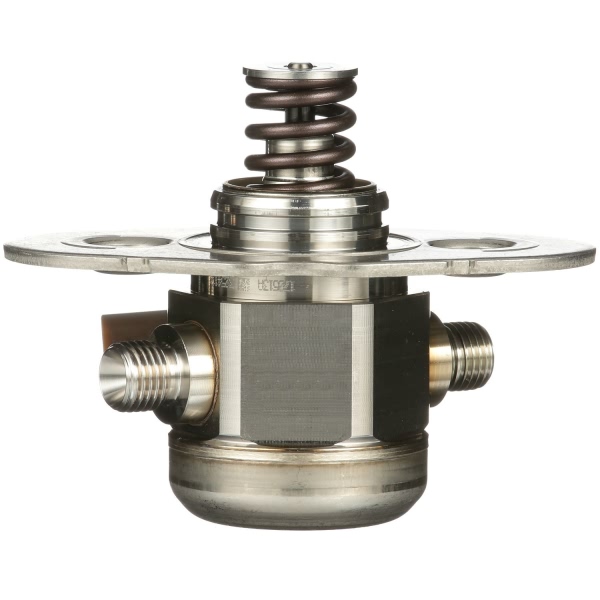

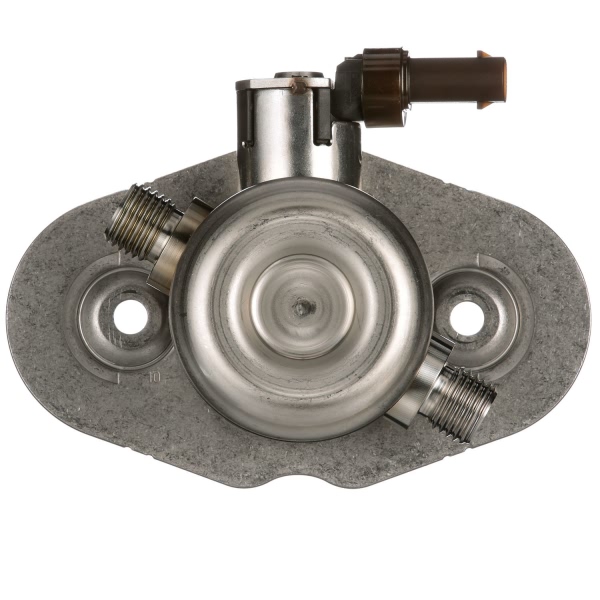

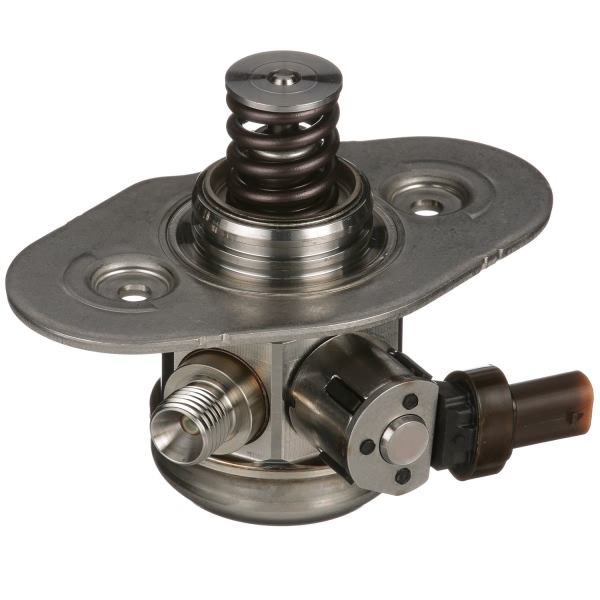

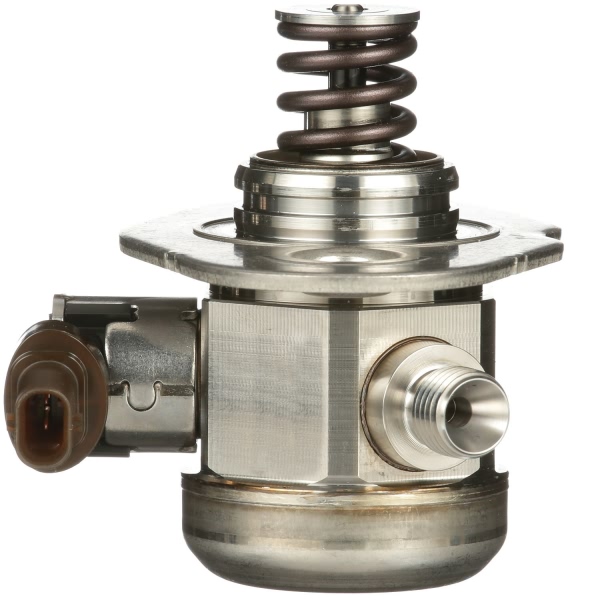

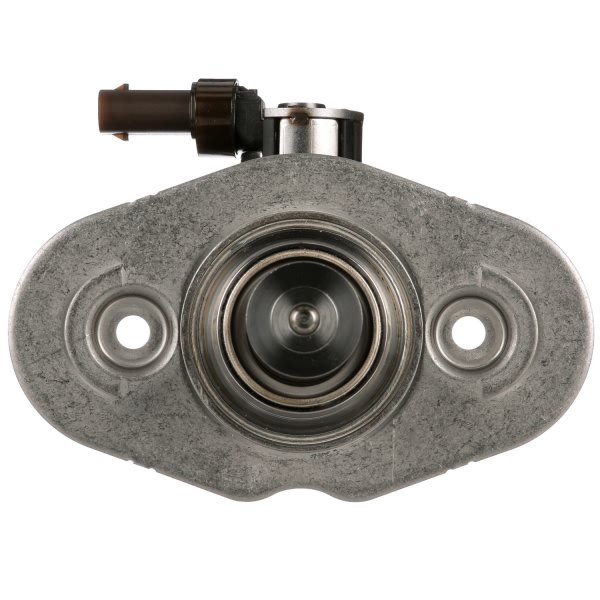

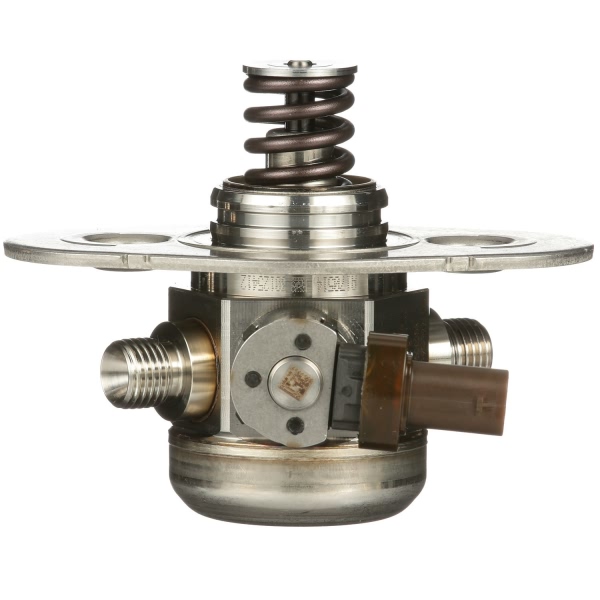

Part Description | Direct Injection High Pressure Fuel Pump |
Drive Shaft Included | No |
Fuel Type | Gas |
Gasket or Seal Included | No |
Housing Color | Silver |
Housing Material | Metal |
In Tank or External | External |
Inlet Fitting Thread Size | M14-1.5mm |
Inlet Type | Threaded |
Item Grade | Standard Replacement |
Mounting Hardware Included | No |
Outlet Fitting Thread Size | M14-1.5mm |
Outlet Quantity | 2 |
Outlet Type | Threaded |
Package Contents | Direct Injection High Pressure Fuel Pump, Instruction Sheet |
Pump Type | Mechanical |

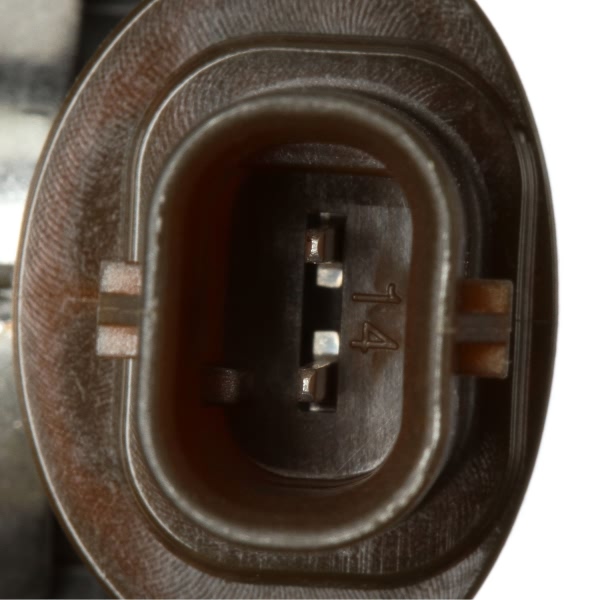

Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Blade |
UPC | 689604291108 |
Wiring Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2017-2019 BMW 230i | All Trims | 4 Cyl 2.0L |
2017-2019 BMW 230i xDrive | All Trims | 4 Cyl 2.0L |
2016-2018 BMW 330e | All Trims | 4 Cyl 2.0L |
2017-2018 BMW 330i | All Trims | 4 Cyl 2.0L |
2017-2019 BMW 330i GT xDrive | All Trims | 4 Cyl 2.0L |
2017-2019 BMW 330i xDrive | All Trims | 4 Cyl 2.0L |
2016-2018 BMW 340i | All Trims | 6 Cyl 3.0L |
2017-2019 BMW 340i GT xDrive | All Trims | 6 Cyl 3.0L |
2016-2018 BMW 340i xDrive | All Trims | 6 Cyl 3.0L |
2017-2019 BMW 430i | All Trims | 4 Cyl 2.0L |
