Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HM10056 |

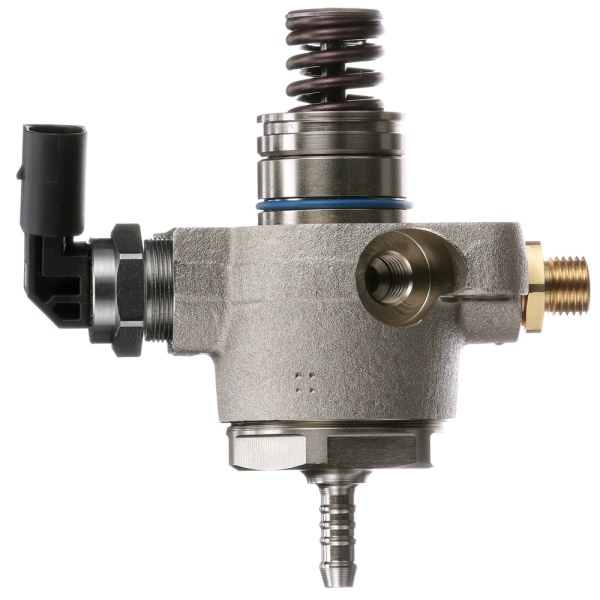

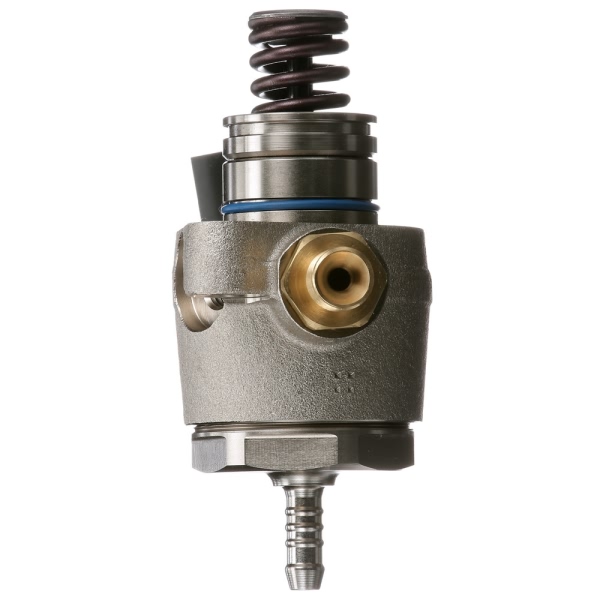

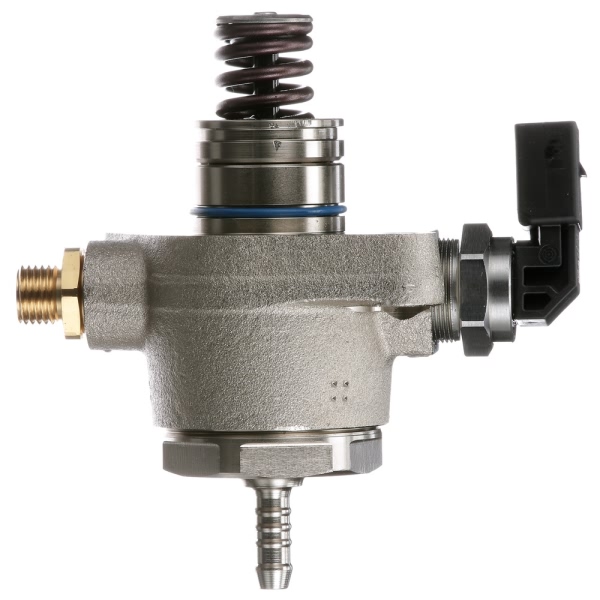

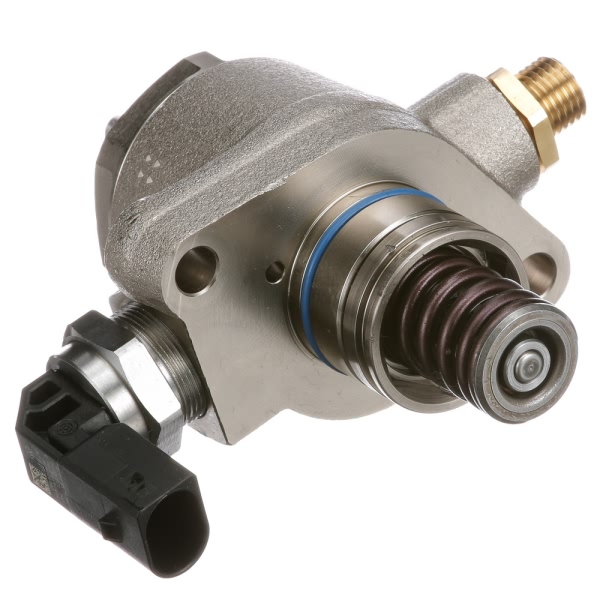

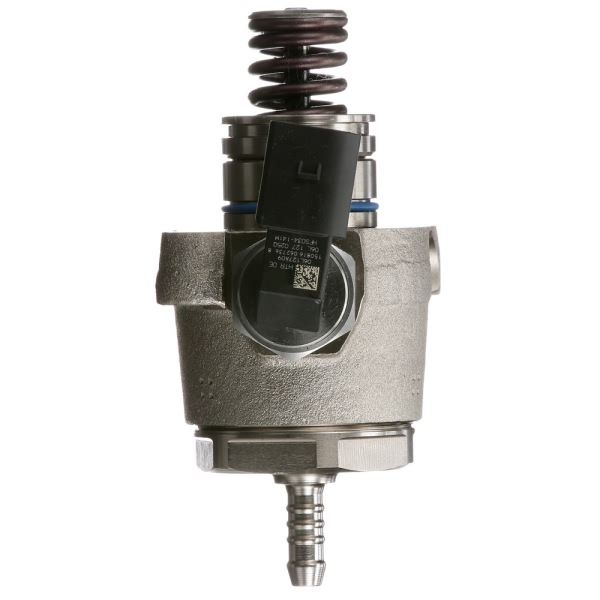

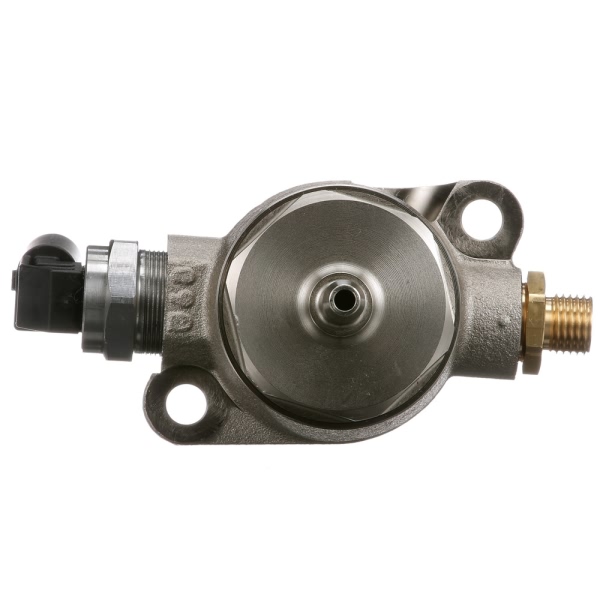

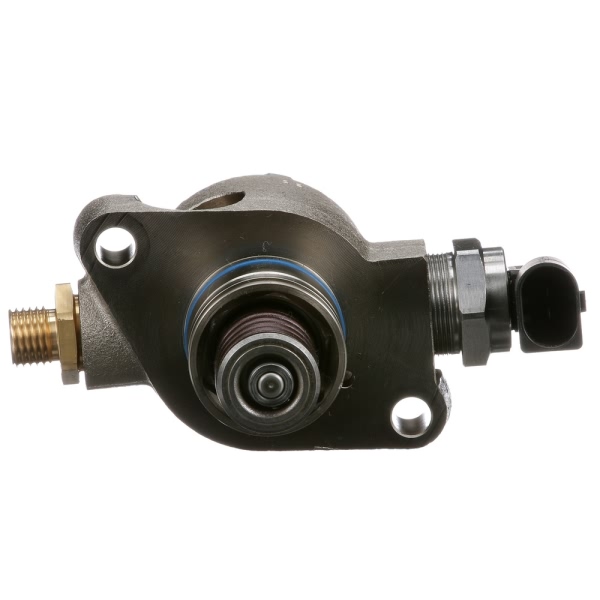

Part Description | Direct Injection High Pressure Fuel Pump |
Drive Shaft Included | No |
Fuel Type | Gas |
Gasket or Seal Included | No |
Housing Color | Silver |
Housing Material | Metal |
In Tank or External | External |
Inlet Outside Diameter | 0.313'' |
Inlet Type | Hose Bead |
Item Grade | Standard Replacement |
Mounting Hardware Included | No |
Outlet Fitting Thread Size | M14-1.5mm |
Outlet Quantity | 3 |
Outlet Type | Threaded |
Package Contents | Direct Injection High Pressure Fuel Pump, Instruction Sheet |
Pump Type | Mechanical |

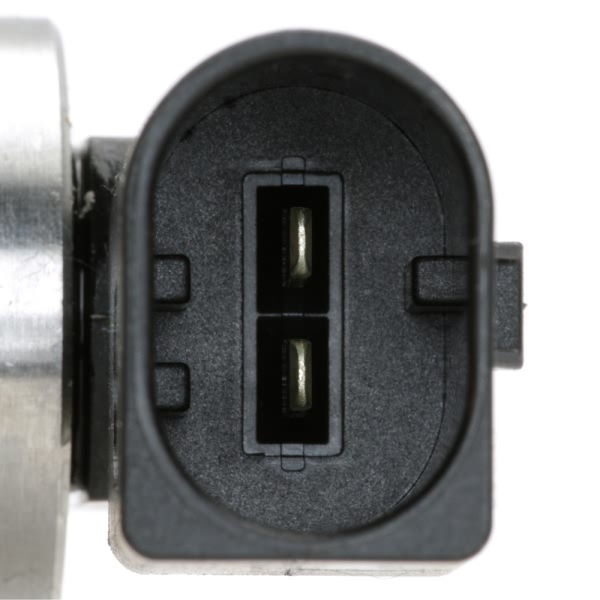

Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Blade |
UPC | 689604285466 |
Wiring Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2015-2016 Audi A3 Quattro | All Trims | 4 Cyl 2.0L |
2016 Audi A6 | All Trims | 4 Cyl 2.0L |
2016 Audi A6 Quattro | All Trims | 4 Cyl 2.0L |
2015-2016 Audi S3 | All Trims | 4 Cyl 2.0L |
2016 Audi TT Quattro | All Trims | 4 Cyl 2.0L |
2015-2016 Volkswagen GTI | All Trims | 4 Cyl 2.0L |
