Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |

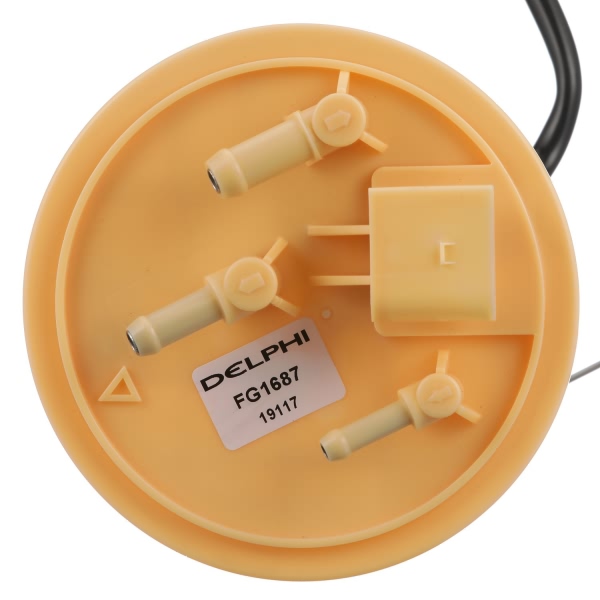

Part Number | FG1687 |

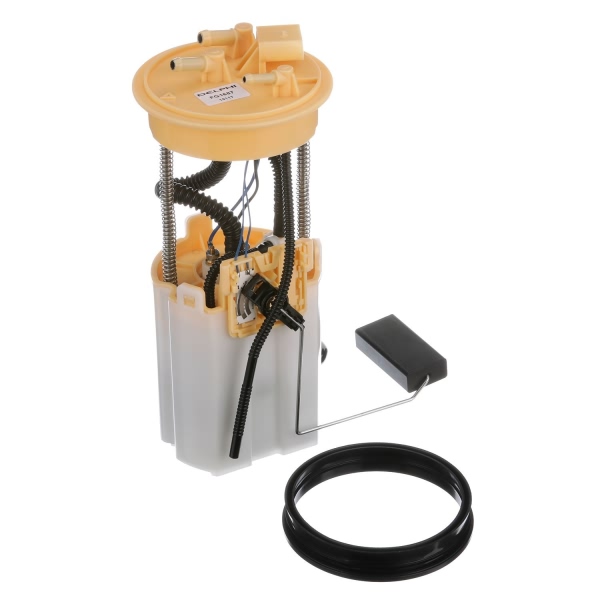

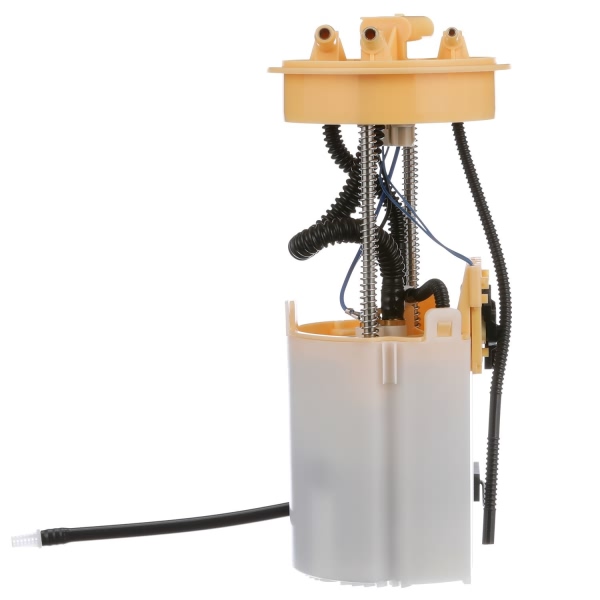

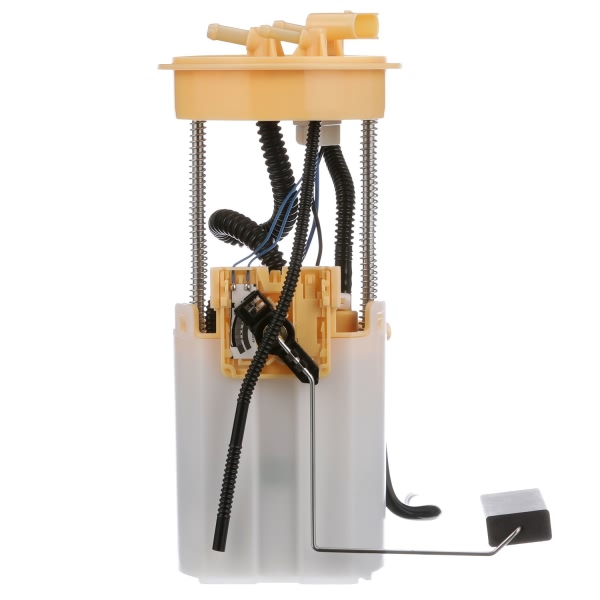

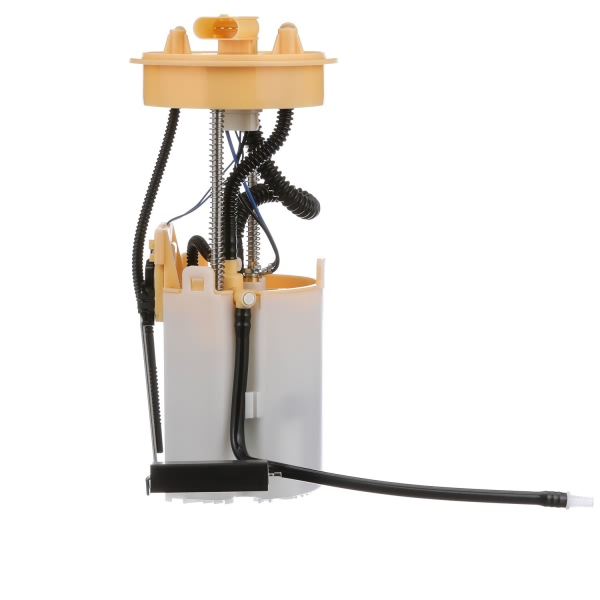

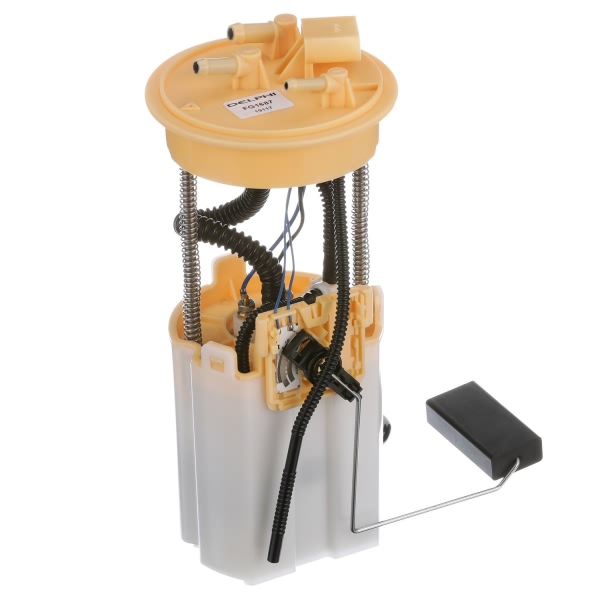

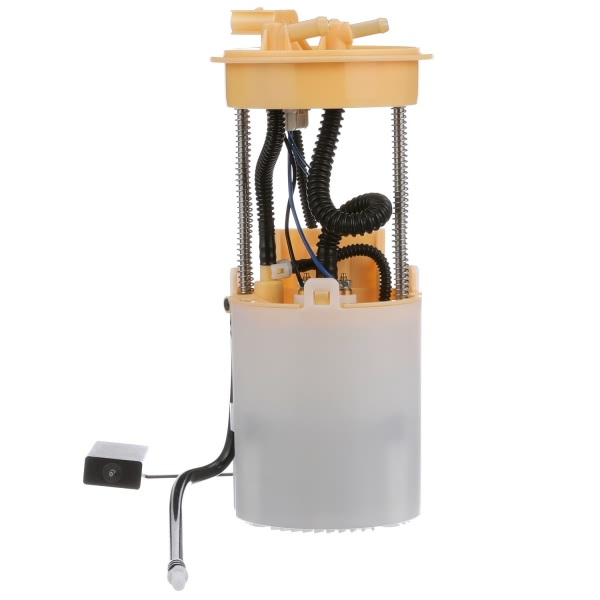

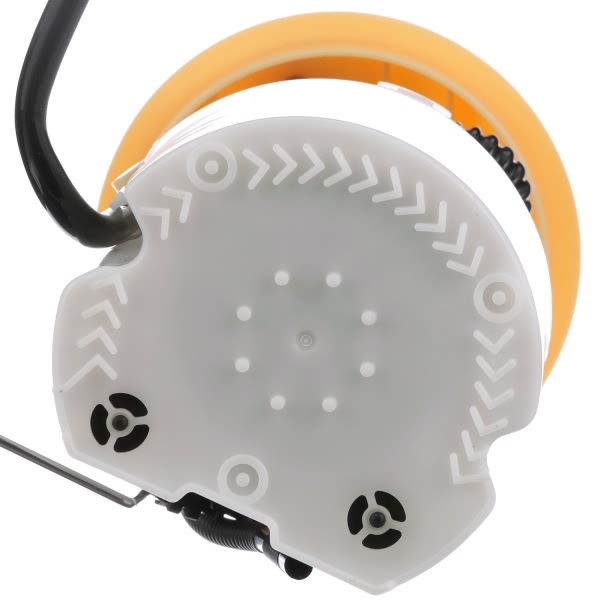

Part Description | Diesel Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 37 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Diesel |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 101.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 3 |
Outlet Type | Hose Bead |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 550.0 |
Resistance Ohms Full | 51.0 |
Strainer Included | Yes |
System Pressure | 62 psi |

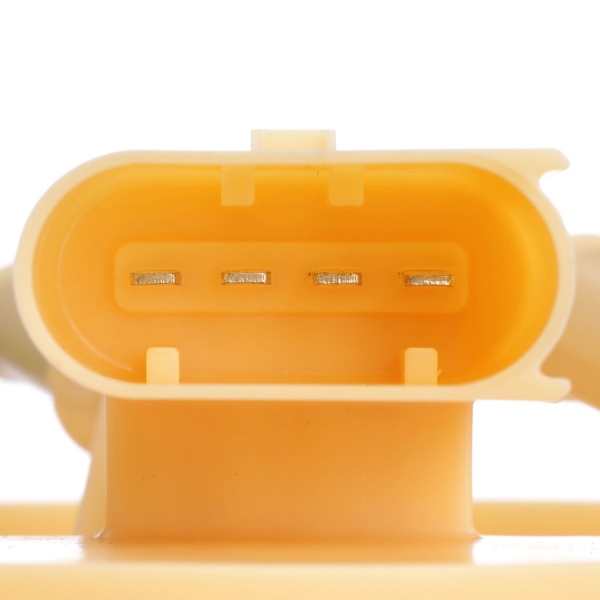

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604272084 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2003-2006 Dodge Sprinter 2500 | All Trims | 5 Cyl 2.7L |
2003-2006 Dodge Sprinter 3500 | All Trims | 5 Cyl 2.7L |
