Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | CS20077 |

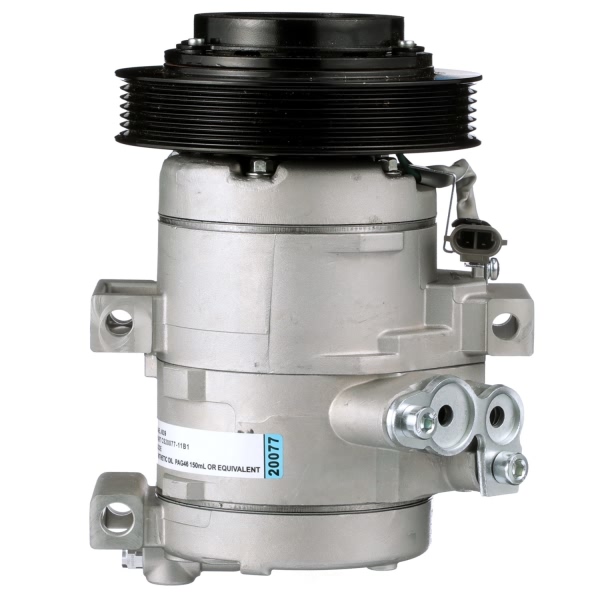

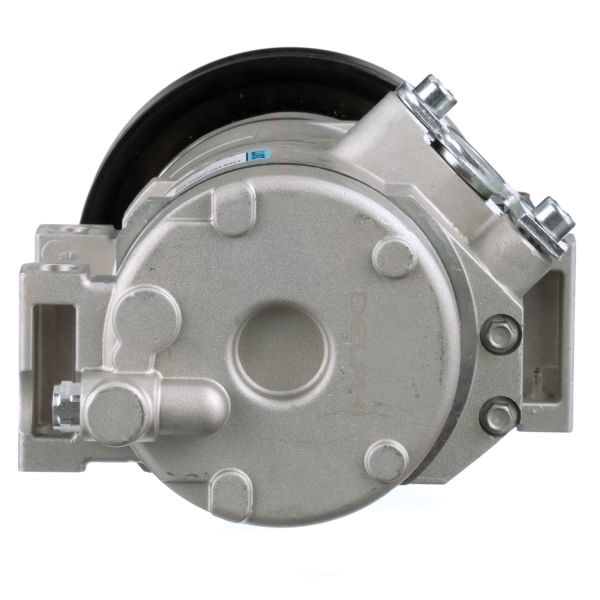

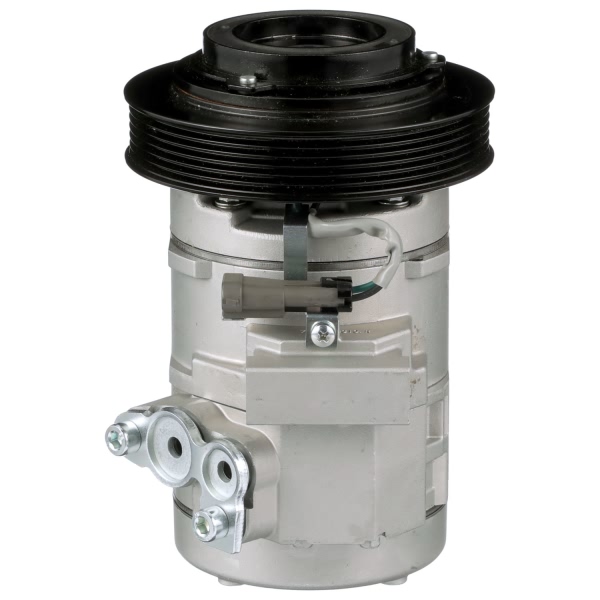

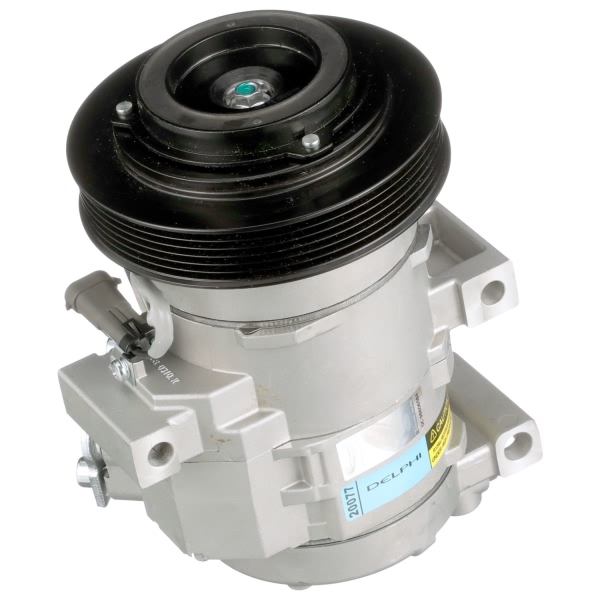

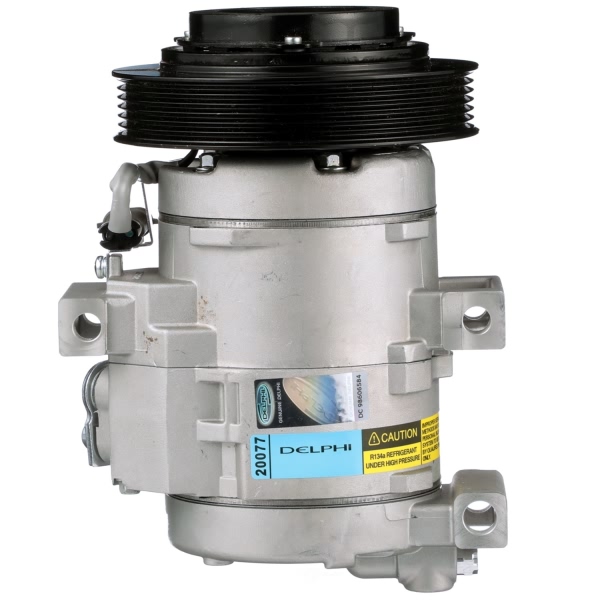

Part Description | A C Compressor With Clutch |
Belt Type | Serpentine |
Clutch Included | Yes |

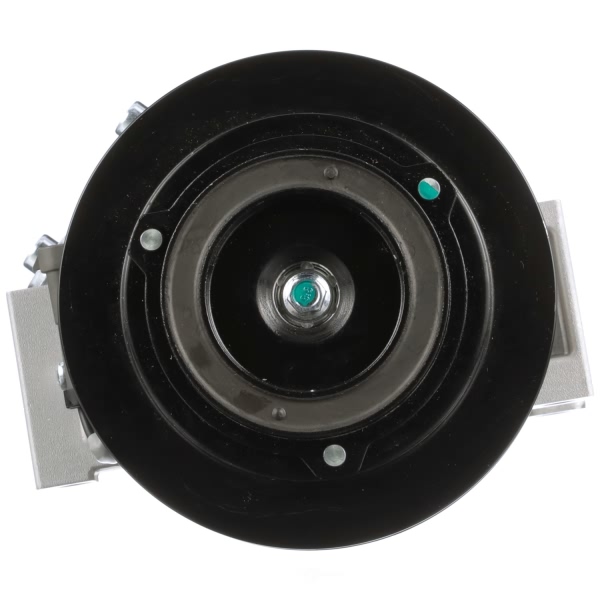

Clutch Pulley Diameter | 140.0 mm |
Coil Clock Position | Wire Lead |
Coil Voltage | 12V |
Compressor Type | 10S |
Connector Terminal Quantity | 2 |

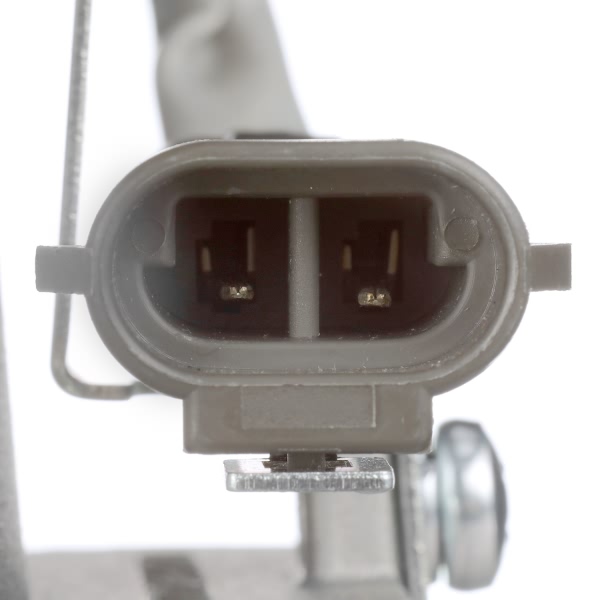

Connector Type | Female, 2 Blade |
Length | 215 mm |
Mounting Type | Bolt-tangent |
New or Remanufactured | New |
Oil in Compressor | Yes |
Oil Type | PAG |
Package Contents | O-rings/sealing washers included |
Pulley Groove Quantity | 6 |
Refrigerant Type | R134A |
Switch Included | No |
Switch Service Port | No |
UPC | 689604201794 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Chevrolet Colorado | All Trims | 4 Cyl 2.8L |
2004-2006 Chevrolet Colorado | All Trims | 5 Cyl 3.5L |
2007-2012 Chevrolet Colorado | All Trims | 4 Cyl 2.9L |
2007-2012 Chevrolet Colorado | All Trims | 5 Cyl 3.7L |
2004-2006 GMC Canyon | All Trims | 4 Cyl 2.8L |
2004-2006 GMC Canyon | All Trims | 5 Cyl 3.5L |
2007-2012 GMC Canyon | All Trims | 4 Cyl 2.9L |
2007-2012 GMC Canyon | All Trims | 5 Cyl 3.7L |
2006 Hummer H3 | All Trims | 5 Cyl 3.5L |
2007-2010 Hummer H3 | All Trims | 5 Cyl 3.7L |
