Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | CS0126 |

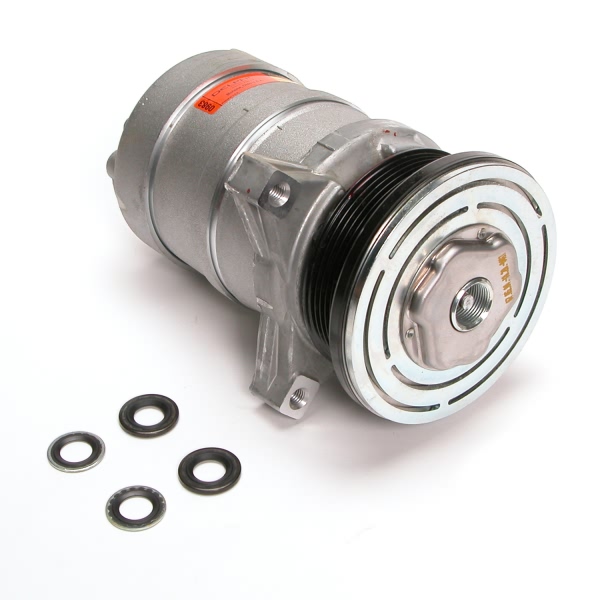

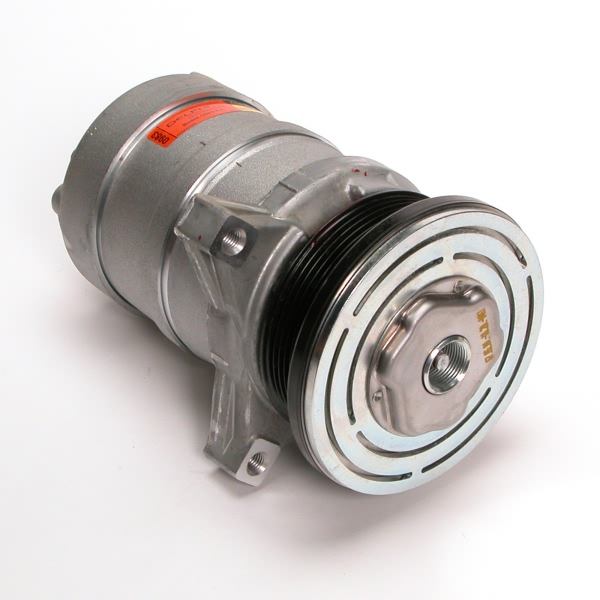

Part Description | A C Compressor With Clutch |
Belt Type | Serpentine |
Clutch Included | Yes |
Clutch Pulley Diameter | 138.5 mm |
Coil Clock Position | 2 o'clock |
Coil Voltage | 12V |
Compressor Type | H6 |
Connector Terminal Quantity | 2 |
Connector Type | Female, 2 Blade |
Length | 8 55/64 " (225.0 mm) |
Mounting Type | Ear Mount |
New or Remanufactured | New |
Oil in Compressor | Yes |
Oil Type | PAG |
Package Contents | O-rings/sealing washers included |
Pulley Groove Quantity | 6 |
Refrigerant Type | R134A |
Switch Included | No |
Switch Service Port | No |
UPC | 689604068502 |
Year Make Model | Trim | Engine |
---|---|---|
1989-1992 Cadillac Allante | All Trims | 8 Cyl 4.5L |
1989-1990 Cadillac Commercial Chassis | All Trims | 8 Cyl 4.5L |
1991-1992 Cadillac Commercial Chassis | All Trims | 8 Cyl 4.9L |
1989-1990 Cadillac DeVille | All Trims | 8 Cyl 4.5L |
1991-1992 Cadillac DeVille | All Trims | 8 Cyl 4.9L |
1989-1990 Cadillac Eldorado | All Trims | 8 Cyl 4.5L |
1991-1992 Cadillac Eldorado | All Trims | 8 Cyl 4.9L |
1989-1990 Cadillac Fleetwood | All Trims | 8 Cyl 4.5L |
1991-1992 Cadillac Fleetwood | All Trims | 8 Cyl 4.9L |
1989-1990 Cadillac Seville | All Trims | 8 Cyl 4.5L |
