Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | CS0122 |

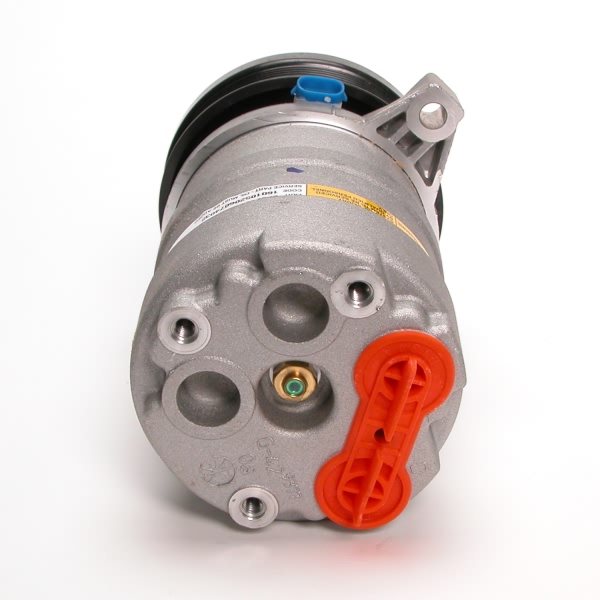

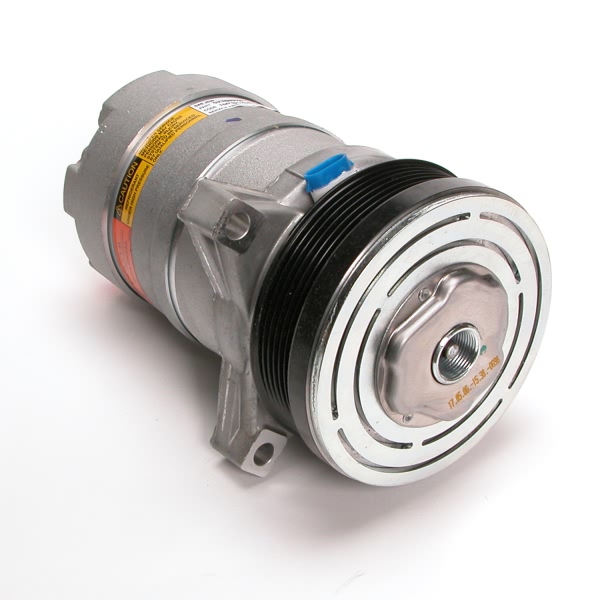

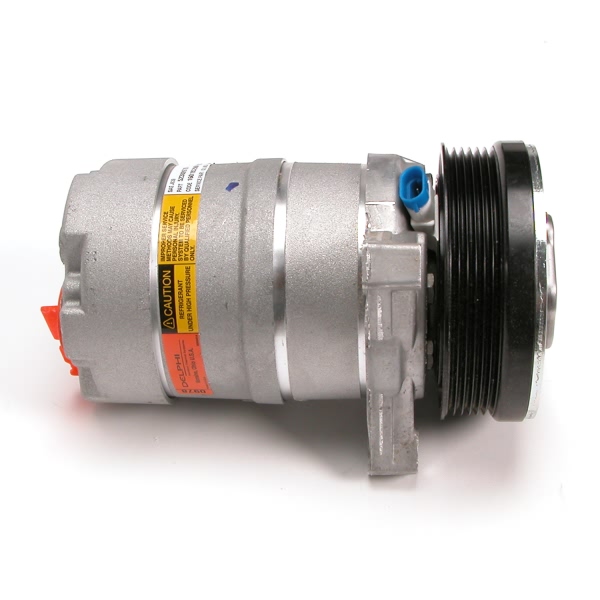

Part Description | A C Compressor With Clutch |
Belt Type | Serpentine |
Clutch Included | Yes |
Clutch Pulley Diameter | 138.5 mm |
Coil Clock Position | 10 o'clock |
Coil Voltage | 12V |
Compressor Type | H6 |
Connector Terminal Quantity | 2 |

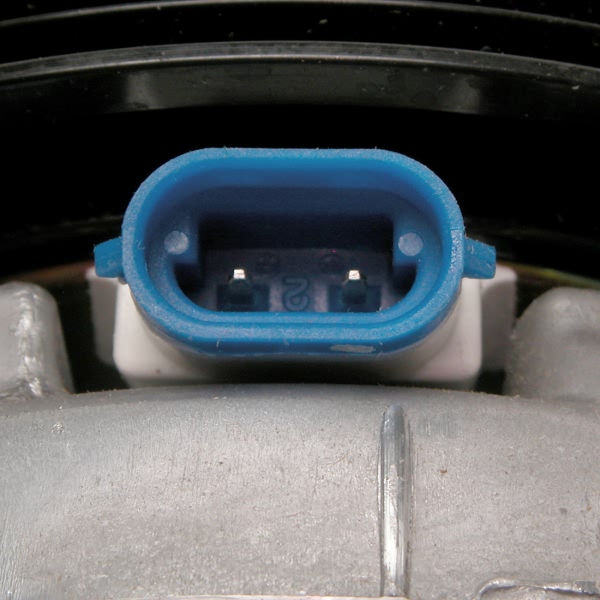

Connector Type | Female, 2 Blade |
Length | 8 57/64 " (225.5 mm) |
Mounting Type | Ear Mount |
New or Remanufactured | New |
Oil in Compressor | Yes |
Oil Type | PAG |

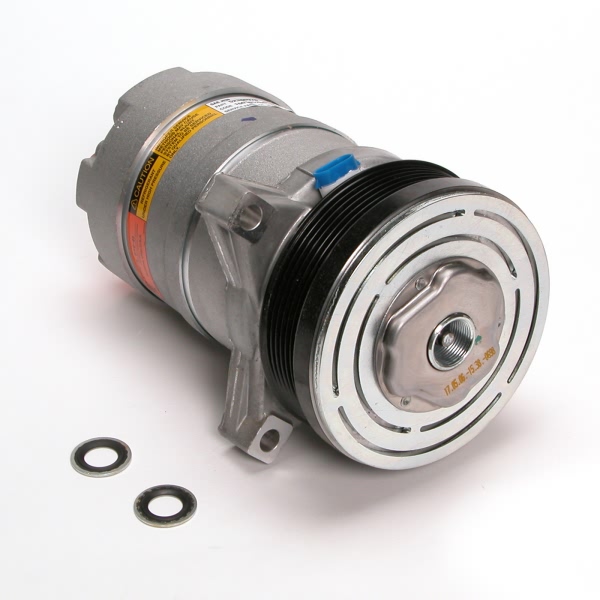

Package Contents | O-rings/sealing washers included |
Pulley Groove Quantity | 6 |
Refrigerant Type | R134A |
Switch Included | No |
Switch Service Port | No |
UPC | 689604068465 |
Year Make Model | Trim | Engine |
---|---|---|
1995 Cadillac DeVille | All Trims | 8 Cyl 4.6L |
1996-1999 Cadillac DeVille | All Trims | All Engines |
1995-1997 Cadillac Eldorado | Base | All Engines |
1995-2002 Cadillac Eldorado | ETC | All Engines |
1998-2002 Cadillac Eldorado | ESC | All Engines |
1995-1997 Cadillac Seville | SLS | All Engines |
1995-1997 Cadillac Seville | STS | All Engines |
