Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1116ST |

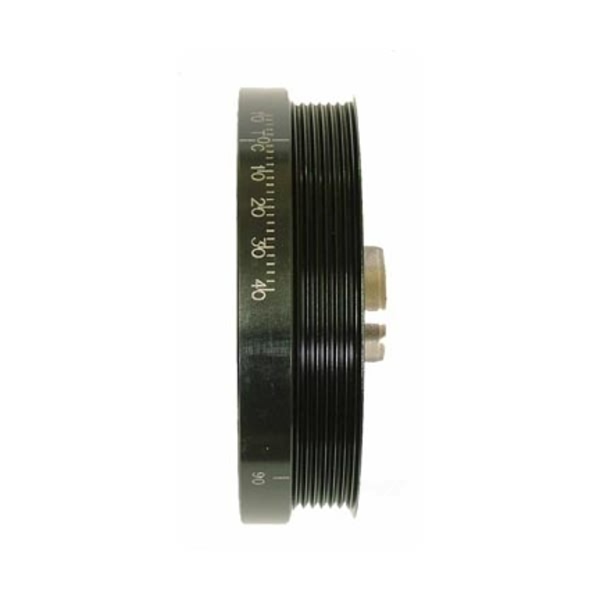

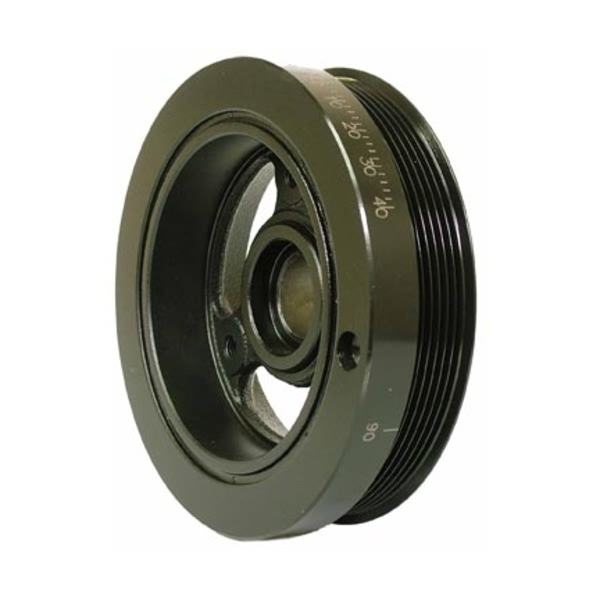

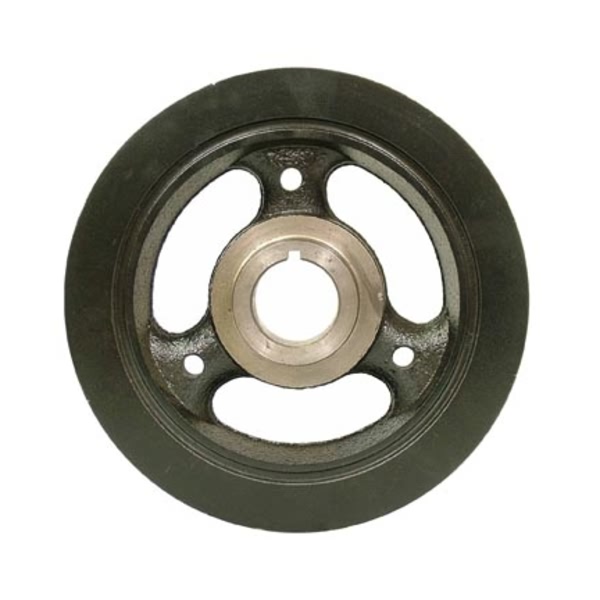

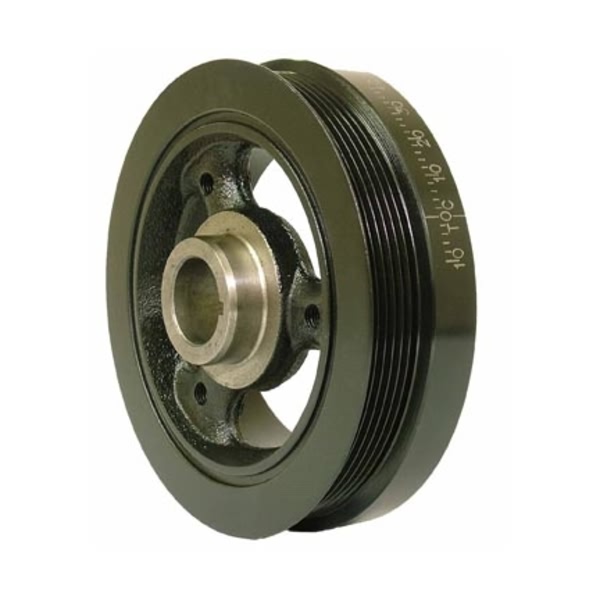

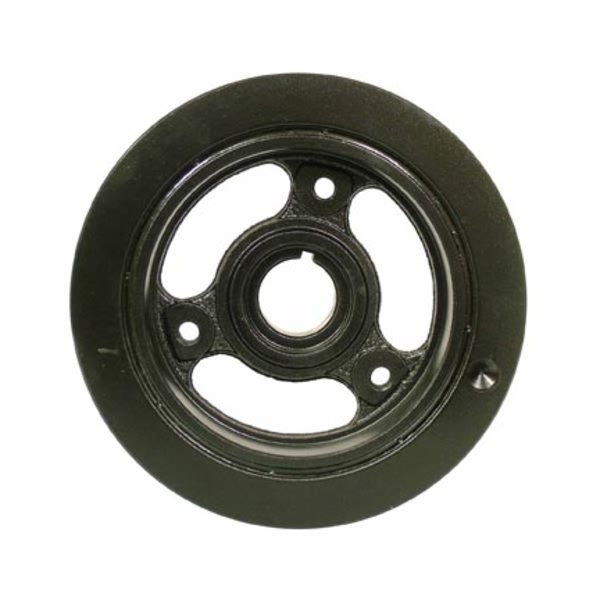

Part Description | STREET PERFORMANCE BALANCER, POWERBOND |
Bolt Hole Quantity | 3 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.249 or 31.71 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 1.876 or 47.65 |
Number of Integrated Pulleys | 1 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 178.00 or 7.008 |
Overall Width | 2.306 or 58.55 |
Pulley 1 Number Of Grooves | 6 |
Pulley 1 Outside Diameter | 168.800 or 6.646 |
Pulley 1 Type | Serpentine |
Ring Width | 1.830 or 46.48 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2007-2014 Ford E-150 | All Trims | 8 Cyl 5.4L |
2007-2014 Ford E-250 | All Trims | 8 Cyl 5.4L |
2007-2016 Ford E-350 Super Duty | All Trims | 8 Cyl 5.4L |
2005-2014 Ford Expedition | All Trims | All Engines |
2006-2008 Ford Expedition | All Trims | 8 Cyl 5.4L |
2010-2013 Ford Expedition | All Trims | 8 Cyl 5.4L |
2002-2008 Ford F-150 | All Trims | 8 Cyl 4.6L |
2004-2010 Ford F-150 | All Trims | 8 Cyl 5.4L |
2004 Ford F-150 Heritage | All Trims | 8 Cyl 4.6L |
2004 Ford F-150 Heritage | All Trims | 8 Cyl 5.4L |
