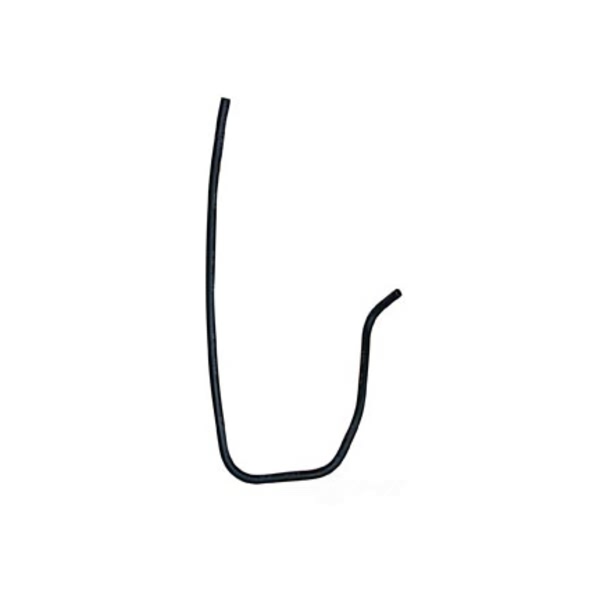

Dayco® Small Id Hvac Heater Hose 86836

Dayco Small Id Hvac Heater Hose 86836
$16.43
In Stock. Ships in 1 Business Day

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandDayco
    Part Number86836
    Part DescriptionSmall Id Hvac Heater Hose
    ColorBlack
    Contains Heat ShieldN
    Contains Protective SleeveN
    End 1 Inside Diameter1/4
    End 1 Outside Diameter17/32
    End 2 Inside Diameter9/32
    End 2 Outside Diameter17/32
    Hose TypeSingle I.D. Hose
    MaterialEPDM
    SAE SpecificationSAE J20R3 Class D-1, SAE J1684 Type EC
    Trunk Height29 1/2
    UPC036687882226
    Warning: California’s Proposition 65
  • Features

    Dayco Small I.D. HVAC Heater Hose are featured as follows:
    • Substitute OEM coolant hoses.
    • It moves hot coolant from the motor onto the heating system's core and brings it back.
    • Made of EPDM and knitted reinforcement for maximum toughness.
    • Meets SAE J20R3, Class D-1 requirements that enhance its dependability.
    • The inner tube designed with Type EC electrochemical deterioration as specified in SAE J1684 is used to protect it against electrochemical degradation due to premature breakdown.
    • Attached to the hose is a quick connect for easy installation.
    • Dayco, is an automotive parts manufacturer that has been operating since 1905.
    The Dayco Small I.D. HVAC Heater Hose 86836 is designed to fit in place of the original equipment manufacturer coolant hoses. It is specifically made for applications requiring small diameter molded hoses, those with a 1" I.D. or smaller diameter. The hose transports heated coolant from the engine block to the heater core and returns it back to the engine. It has knitted reinforcement and EPDM construction for utmost toughness; also resistant to temperature changes within -40 °F to +257 °F range. The hose meets SAE J20R3, Class D-1 and Type EC electro-chemical requirements, ensuring reliability and avoiding early breakdown of the inner tube. Additionally, there is a quick connect available with this item that makes it easy for anyone installing it whenever they want. Since 1905, Dayco has been at the forefront in automotive parts manufacturing industry providing innovative, quality and lasting products.
    Dayco was established in 1905 and is a trailblazing brand in the manufacturing of automotive parts. Tire production has been one of its key areas, as it was the first to ever produce the airless tire. The range of products offered by Dayco currently include belts, tensioners, pulleys and hydraulics for various markets such as: automobile, building, trucking, ATV, agricultural machinery and industrial sectors.
  • Vehicle Fitment

    Year Make Model Trim Engine
    2002-2005 Cadillac EscaladeAll Trims8 Cyl 5.3L
    2002-2005 Cadillac EscaladeAll Trims8 Cyl 6.0L
    2006-2008 Cadillac EscaladeAll TrimsAll Engines
    2007-2014 Cadillac EscaladeAll Trims8 Cyl 6.2L
    2014 Cadillac EscaladeAll TrimsAll Engines
    2003-2014 Cadillac Escalade ESVAll TrimsAll Engines
    2007-2014 Cadillac Escalade ESVAll Trims8 Cyl 6.2L
    2002-2013 Cadillac Escalade EXTAll TrimsAll Engines
    2007-2013 Cadillac Escalade EXTAll Trims8 Cyl 6.2L
    2007-2009 Chevrolet AvalancheAll Trims8 Cyl 5.3L
