Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PBU1638SS25 |

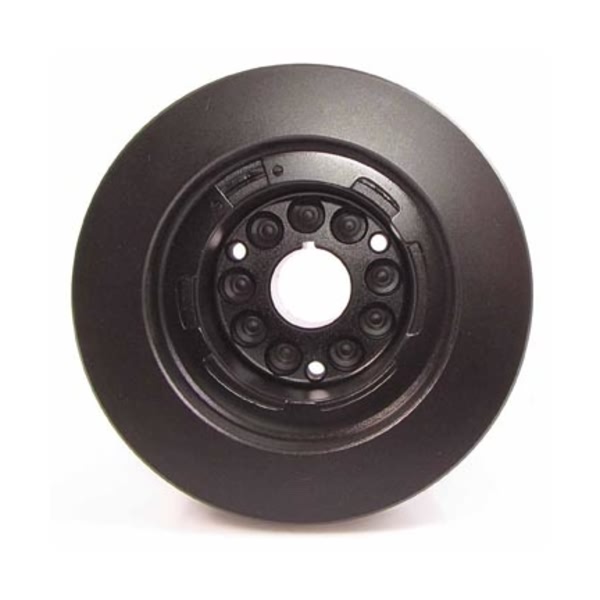

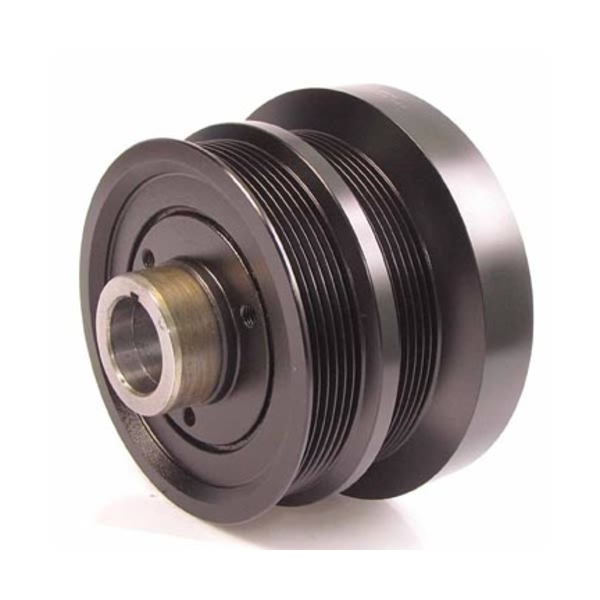

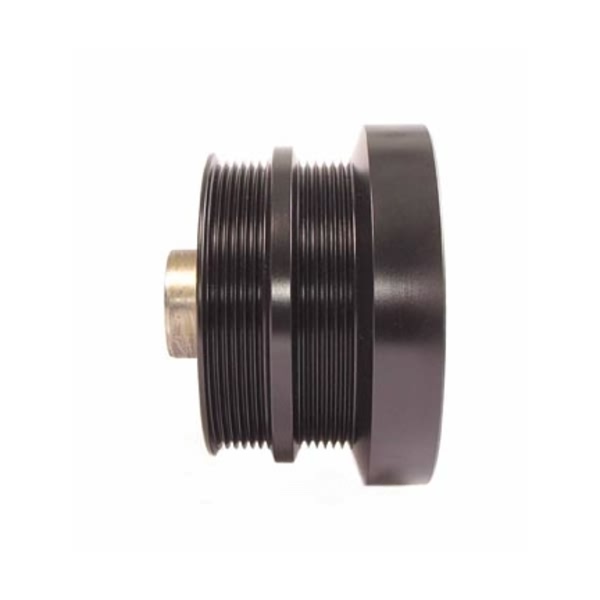

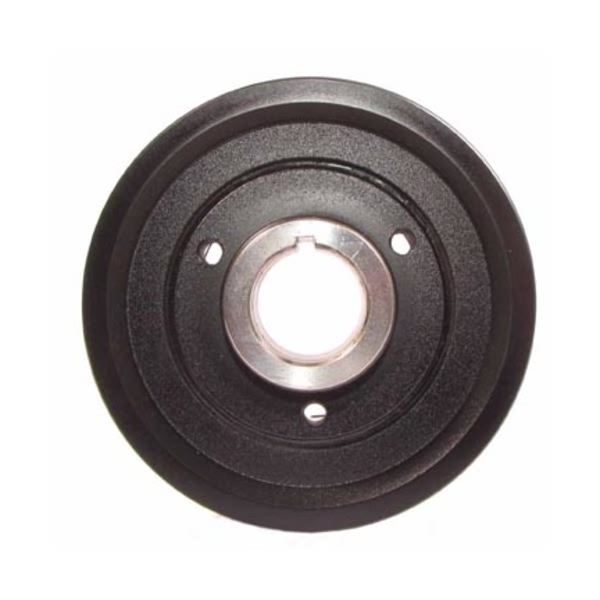

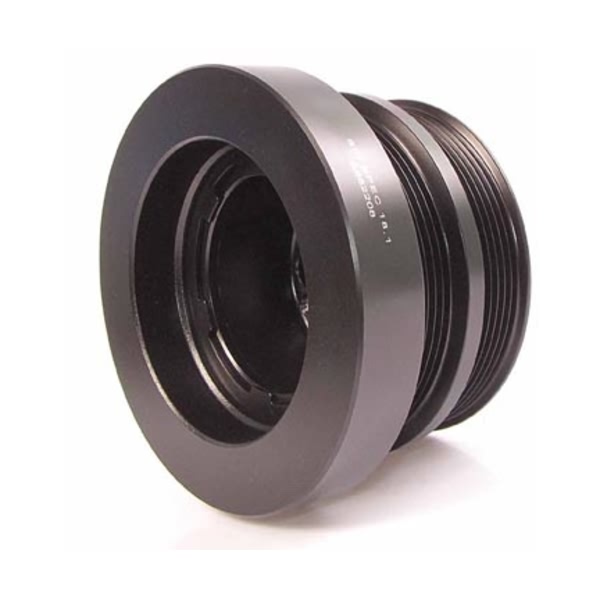

Part Description | RACE PERFORMANCE BALANCER, POWERBOND |
Bolt Hole Quantity | 3 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.249 or 31.71 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 1.876 or 47.65 |
Number of Integrated Pulleys | 2 |
Outer Ring Material | Steel |
Overall Outside Diameter | 155.00 or 6.103 |
Overall Width | 109.80 or 4.323 |
Pulley 1 Number Of Grooves | 6 |
Pulley 1 Outside Diameter | 125.250 or 4.932 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 6 |
Pulley 2 Outside Diameter | 125.250 or 4.932 |
Pulley 2 Type | Serpentine |
Ring Width | 3.625 or 92.05 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2011-2014 Ford F-150 | All Trims | 8 Cyl 5.0L |
2011-2014 Ford Mustang | All Trims | 8 Cyl 5.0L |
