Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PBU1170SS20 |

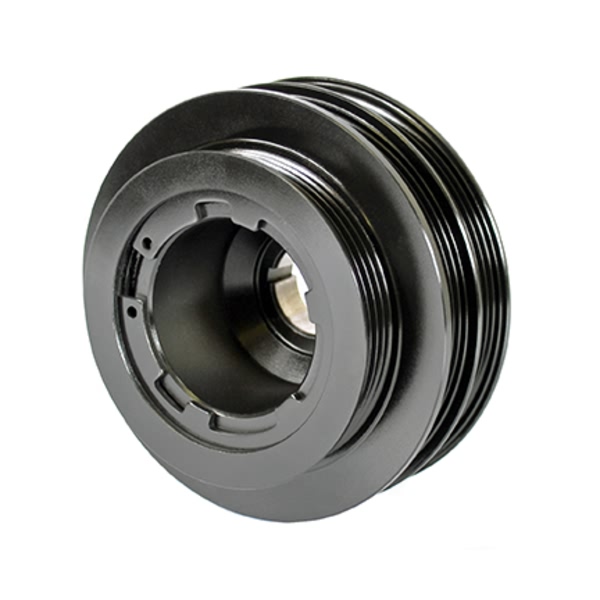

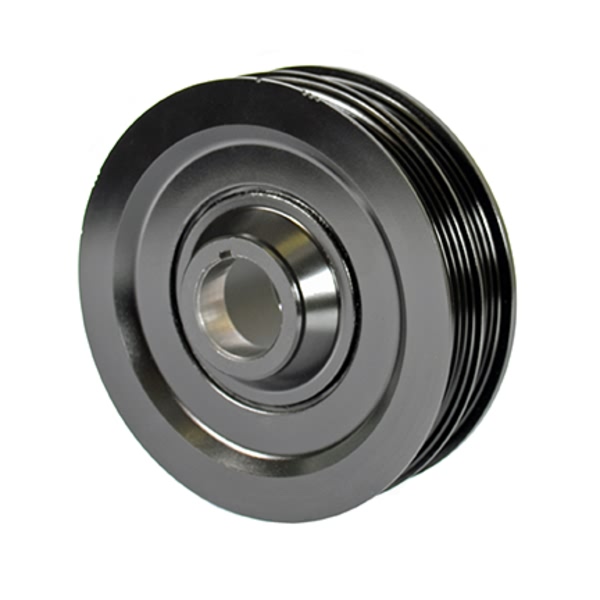

Part Description | RACE PERFORMANCE BALANCER, POWERBOND |
Bolt Hole Quantity | 0 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.103 or 28.01 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 0 or 0.00 |
Number of Integrated Pulleys | 3 |
Outer Ring Material | Steel |
Overall Outside Diameter | 126.50 or 4.981 |
Overall Width | 2.461 or 62.50 |
Pulley 1 Number Of Grooves | 4 |
Pulley 1 Outside Diameter | 3.650 or 92.700 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 4 |
Pulley 2 Outside Diameter | 115.000 or 4.528 |
Pulley 2 Type | Serpentine |
Ring Width | 2.176 or 55.25 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1994-1996 Acura Integra | All Trims | 4 Cyl 1.8L |
1997-2001 Acura Integra | GS-R | 4 Cyl 1.8L |
