Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PBU1117SS10 |

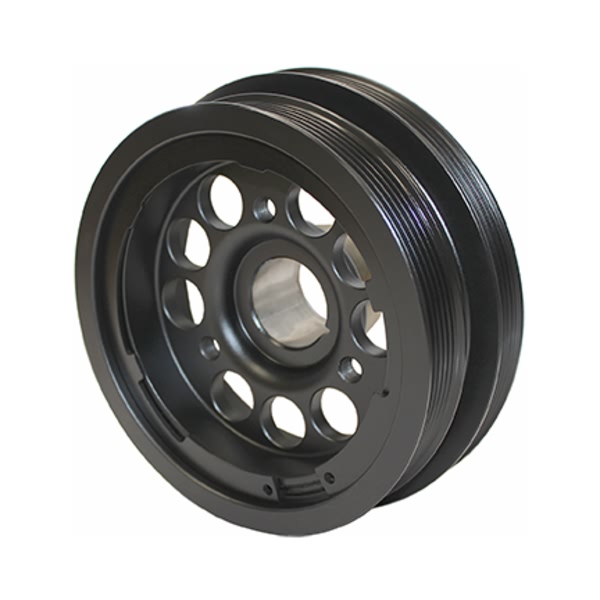

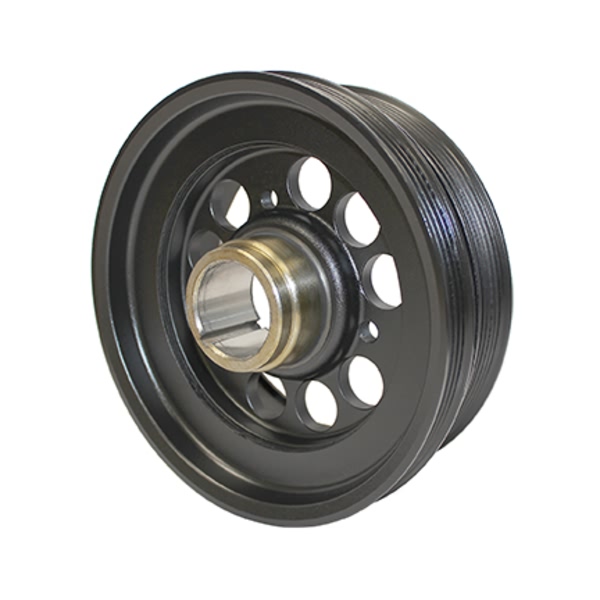

Part Description | RACE PERFORMANCE BALANCER, POWERBOND |
Bolt Hole Quantity | 3 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.481 or 37.60 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | Yes |
Nose Outside Diameter | 2.128 or 54.05 |
Number of Integrated Pulleys | 2 |
Outer Ring Material | Steel |
Overall Outside Diameter | 183.50 or 7.225 |
Overall Width | 2.817 or 71.55 |
Pulley 1 Number Of Grooves | 4 |
Pulley 1 Outside Diameter | 179.500 or 7.067 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 6 |
Pulley 2 Outside Diameter | 165.600 or 6.520 |
Pulley 2 Type | Serpentine |
Ring Width | 2.421 or 61.49 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 Cadillac CTS | All Trims | 8 Cyl 5.7L |
2006-2007 Cadillac CTS | All Trims | 8 Cyl 6.0L |
2011 Chevrolet Caprice | All Trims | All Engines |
2012-2017 Chevrolet Caprice | All Trims | 8 Cyl 6.0L |
1997-2004 Chevrolet Corvette | All Trims | All Engines |
2005-2007 Chevrolet Corvette | All Trims | 8 Cyl 6.0L |
2008-2013 Chevrolet Corvette | All Trims | 8 Cyl 6.2L |
2014-2015 Chevrolet SS | All Trims | All Engines |
2008-2009 Pontiac G8 | All Trims | 8 Cyl 6.0L |
2009 Pontiac G8 | All Trims | 8 Cyl 6.2L |
