Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1731N |

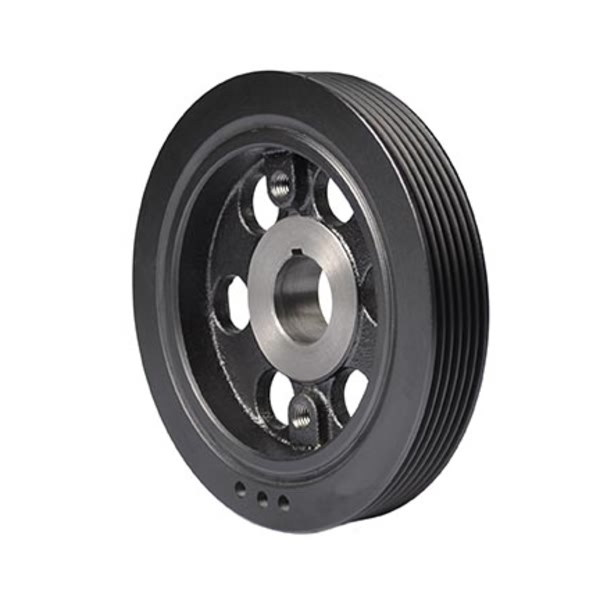

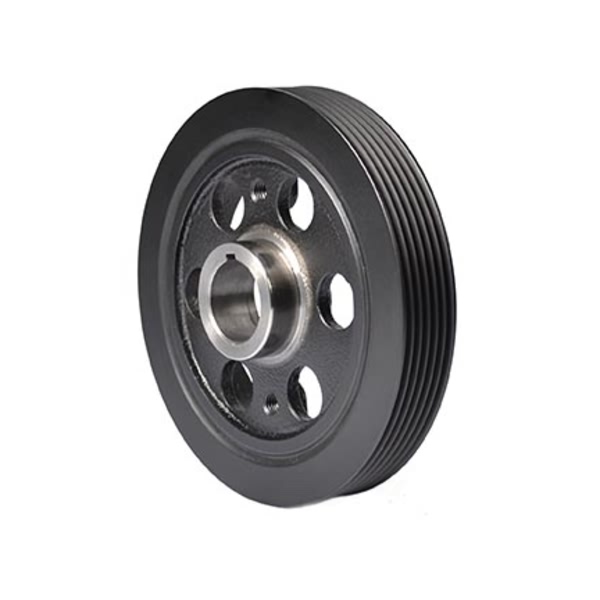

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 2 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.103 or 28.00 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 1.615 or 41.00 |
Number of Integrated Pulleys | 1 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 145.00 or 5.709 |
Overall Width | 1.386 or 35.20 |
Pulley 1 Number Of Grooves | 6 |
Pulley 1 Outside Diameter | 145.00 or 5.709 |
Pulley 1 Type | Serpentine |
Pulley 2 Type | Serpentine |
Ring Width | 0.969 or 24.60 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2009-2013 Suzuki Grand Vitara | All Trims | 4 Cyl 2.4L |
2011-2013 Suzuki Grand Vitara | All Trims | All Engines |
2010-2013 Suzuki Kizashi | All Trims | 4 Cyl 2.4L |
2010-2013 Suzuki SX4 | All Trims | 4 Cyl 2.0L |
2010-2013 Suzuki SX4 | All Trims | All Engines |
2012 Suzuki SX4 Crossover | All Trims | All Engines |
