Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1573N |

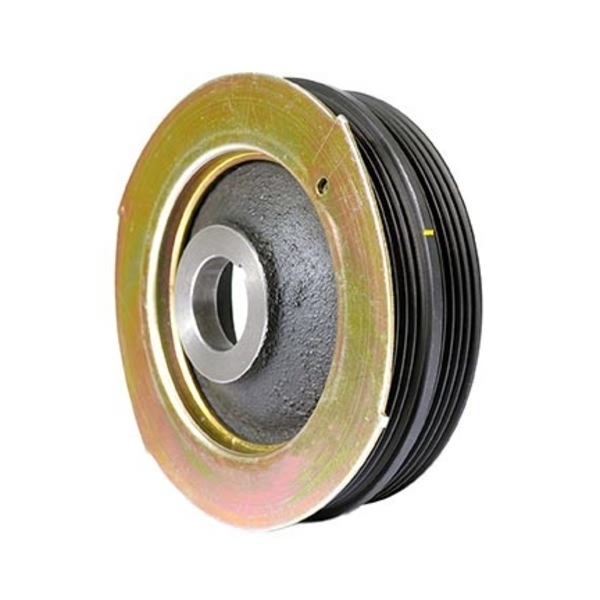

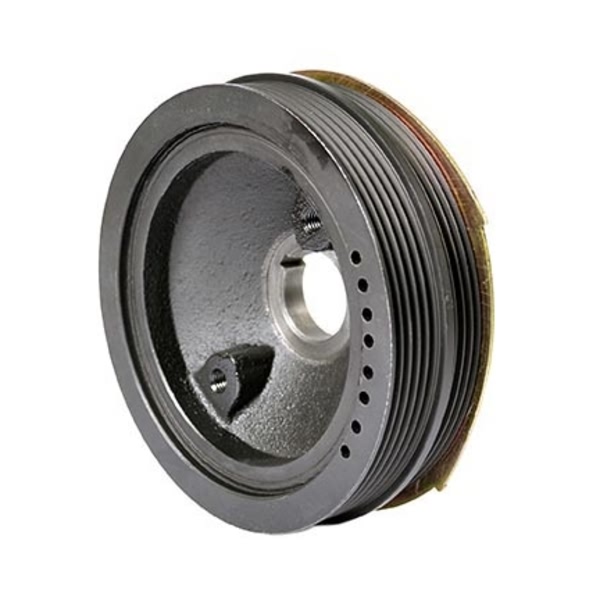

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 2 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.182 or 30.00 |
Crank Trigger/Exciter Plate | Yes |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 0 or 0.00 |
Number of Integrated Pulleys | 2 |
Outer Ring Material | Grey Iron |
Overall Outside Diameter | 146.00 or 5.749 |
Overall Width | 1.851 or 47.00 |
Pulley 1 Number Of Grooves | 4 |
Pulley 1 Outside Diameter | 140.000 or 5.512 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 5 |
Pulley 2 Outside Diameter | 140.000 or 5.512 |
Pulley 2 Type | Serpentine |
Ring Width | 1.260 or 31.98 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1996-1997 Mazda 626 | All Trims | 4 Cyl 2.0L |
1997 Mazda MX-6 | All Trims | 4 Cyl 2.0L |
